Dodge D100 Speedometer Cable Guide: 1975-1980
Fix your bouncing or dead speedometer with the right replacement cable for your classic Dodge truck.
- A bouncing needle, dead speedometer, or whining from the dash are the main signs of a bad speedometer cable.
- Aftermarket cables are your main option; choose a direct-fit brand like Pioneer or ATP for ease, or a cut-to-fit brand like Lokar for custom applications.
- Proper routing is critical. Keep the cable away from the exhaust manifold and avoid sharp bends to prevent early failure.
- Always lubricate the new inner cable with grease before installation for smooth, long-lasting operation.
Is Your Speedometer Acting Up?
On a classic truck like the D100, the speedometer system is simple, but the cable is a common wear item. After decades of use, the original cable can wear out, break, or get gummed up. The good news is that replacing it is a straightforward job you can do at home.
🎬 See this walkthrough of a classic truck speedometer cable swap.Choosing the Right Aftermarket Cable
For a vehicle from this era, new original equipment (OEM) parts are generally not available. Aftermarket cables are the go-to solution. You have a few types to choose from, mainly differing in quality and installation style.

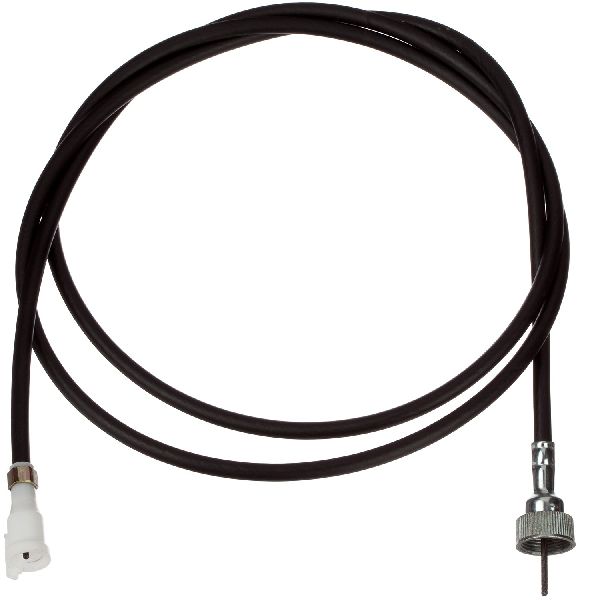

- Direct-Fit Cables (Pioneer, ATP): These are designed to be a direct replacement for the original cable. Brands like Pioneer and ATP offer affordable, direct-fit options that are popular for standard repairs. They are manufactured to original specifications and are meant to be installed right out of the box. Some reviews note that fit can occasionally be an issue with universal-style parts, so confirming the length you need is a good idea.
- Cut-to-Fit Kits (Lokar, ATP): Brands like Lokar specialize in high-quality, premium "cut-to-fit" kits. These are often used in custom or restoration projects and feature components like billet aluminum fittings and PTFE-lined housings for long life. You measure the required length and cut the cable and housing yourself, which provides a perfect custom fit. 🎬 Watch: How to assemble and customize a long speedometer cable. ATP also offers budget-friendly cut-to-fit kits.
Pro-Tip: Lubricate Before Installing
Many experienced mechanics and DIYers recommend pulling the new inner cable out of its housing and applying a light coat of white lithium grease or specific cable lube before installation. This ensures smooth operation and can significantly extend the life of the cable.
Known Issues, Recalls, and TSBs
No specific recalls or Technical Service Bulletins (TSBs) were found for the speedometer cable on 1975-1980 Dodge D100 trucks after a search of the National Highway Traffic Safety Administration (NHTSA) database and other resources. Failures are typically due to normal wear and tear over many years of service. The most common installation errors that cause premature failure are routing the cable with sharp bends or too close to the hot exhaust manifold, which can melt the housing.
Cost of a New Speedometer Cable (1975-1980 Dodge D100)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Pioneer, ATP) | $20.73 - $45.00 |
| New Aftermarket Premium (Lokar) | $129.00 - $150.74 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions (FAQ)
Is replacing the speedometer cable a difficult job?
No, this is a great job for a beginner. It is typically held by a clip on the back of the speedometer and threads onto the transmission. You will need to get under the dashboard and under the truck, but no special tools are required.
Why is my new speedometer cable making noise or failing quickly?
Premature failure is almost always caused by improper installation. The most common reasons are a sharp kink in the cable routing or the housing melting against the exhaust. Another possibility is that the speedometer head itself is binding, putting too much strain on the cable. You can test this by spinning the input on the back of the speedometer with a drill to see if it moves freely.
🎬 Watch: A close-up look at the speedometer head and input.What is the most important thing to check when ordering?
Cable length is the most critical specification. While many cables are listed for your truck, different transmission and chassis combinations can require different lengths. Measuring your old cable (even if it's broken) is the best way to ensure you order the correct part.
What's the difference between a direct-fit and a cut-to-fit cable?
A direct-fit cable (like Pioneer) is designed to be the correct length out of the box. A cut-to-fit cable (like Lokar) comes extra long and includes the tools and ends needed for you to cut it to the perfect length for your specific truck setup.
Helpful Videos
Technical Specifications
The speedometer cable is a mechanical, flexible drive shaft. It connects to the transmission with a threaded fitting and to the back of the speedometer head, often with a clip-on connector. Cable length is the most critical specification and must be correct for the vehicle's specific transmission and chassis configuration to allow for proper routing without kinks.
