1975-1980 Ford F-150 Ignition Control Module Guide
Everything F-150 owners need to know about the common failure points of the DuraSpark ignition module.
- Heat is the main cause of failure; symptoms are often an engine that stalls when hot but restarts after cooling down.
- You MUST buy a replacement module with the same color grommet (Green for '75, Blue for '76-'80) as your original.
- Replacement is very easy and can be done in minutes with basic tools, making it a DIY-friendly job.
- Aftermarket quality varies, so choose a premium brand like Standard Ignition and consider keeping a spare in the truck.
Is Your F-150's Ignition Module Failing?

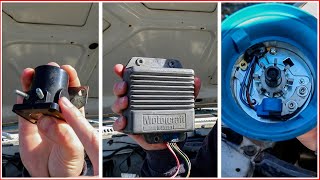

The DuraSpark ignition module in the 1975-1980 Ford F-150 is a well-known weak point, with heat being its primary enemy. Failures are so common 🎬 Watch: A complete guide to the troublesome DuraSpark system that many veteran owners carry a spare behind the seat. The most classic symptom is when the engine runs perfectly fine when cold, but then suddenly stalls after 15-30 minutes of driving as the module overheats under the hood. After the truck sits and the module cools down, it will often restart and run for a while before stalling again. Eventually, it will fail completely, leading to a no-start condition.
Common Failure Symptoms:
- Engine stalls when hot, restarts after cooling: This is the number one sign of a failing module. 🎬 See how to test your DuraSpark II module for failure
- No spark at all: The engine cranks over but will not start.
- Sudden engine shut-off: Feels like you turned the key off while driving.
- Rough running or misfiring: The truck may stumble or run poorly as the module begins to fail intermittently.
Critical: Match the Color Grommet!
Ford used different modules for different years, identified by the color of the plastic grommet where the wires enter the module. You must replace your module with one that has the same color grommet. For this generation:
- 1975 models typically use a GREEN grommet module.
- 1976-1980 models typically use a BLUE grommet module.
Using the wrong color module will result in a no-start condition as the internal electronics and wiring are different.
Choosing the Right Aftermarket Module
Finding a new OEM Motorcraft module for a truck of this age is nearly impossible. This means you will be buying an aftermarket part. Quality in the aftermarket varies widely, and it's common to receive a defective part right out of the box, even from parts stores. For this reason, it's wise to buy from a reputable brand.
Standard Ignition (Standard Motor Products) is a well-regarded brand for ignition components. They often engineer their parts with improvements over the original design, such as better heat sinks and more durable internal connections to improve reliability. While no aftermarket part is perfect, choosing a premium brand like Standard gives you a better chance of getting a reliable module that lasts.
Pro Tip: After replacing the module, keep the old one in your glove box if it was still working intermittently. It might be enough to get you home in an emergency if the new one fails unexpectedly.
Ignition Control Module Replacement Cost
Replacing the ignition module is a straightforward job that most owners can do themselves. Because of this, labor costs are low. The main expense is the part itself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Module | $79.15 - $94.22 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $129 - $194 |
Frequently Asked Questions
Where is the ignition module located on my F-150?
The ignition control module is typically mounted on the driver's side inner fender well in the engine compartment. It is a small metal box with two wiring harnesses connected to it.
Can I replace the ignition module myself?
Yes, this is one of the easiest repairs you can do on this truck. It requires only basic hand tools to remove a few screws and unplug two connectors. The entire job can usually be done in less than 15 minutes.
🎬 Watch: A quick walkthrough of the module replacement processDoes the new module need dielectric grease?
Yes, the new module should come with a packet of heat-dissipating compound (often mistaken for dielectric grease). You must apply this to the metal back of the new module before bolting it to the fender. This compound helps transfer heat away from the module to the fender, which acts as a heat sink, extending the part's life.
Are there any recalls for the DuraSpark module?
No, there are no official NHTSA recalls for the ignition control module on the 1975-1980 Ford F-150. The part's tendency to fail is a widely known issue among owners but was never subject to a formal recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: DY166 DY184
System: Ford DuraSpark I (1975) or DuraSpark II (1976-1980). Connectors: Two multi-pin plugs. Identification: Color-coded wire grommet (Green or Blue).
