Chevrolet P30 Engine Timing Cover Replacement Guide (1975-1981)
Stop front-engine oil leaks and protect the timing components in your P30's V8 engine.
- Confirm your engine type (Chevy Small-Block or Big-Block) before ordering, as the covers are different.
- Upgrading from a basic stamped steel cover to a cast aluminum one provides better rigidity and sealing.
- Loosening the front of the oil pan is a critical step for a leak-free installation.
- Always replace the front crankshaft seal, timing cover gasket, and consider replacing the timing chain and water pump at the same time.
Is Your P30's Timing Cover Failing?
The timing cover on the Chevy V8 engines used in the P30 chassis is a simple part, but failures can cause messy leaks and lead to bigger problems. The original covers were typically made of stamped steel, which can rust, get damaged, or warp over time. The seals are the most common failure point, especially the front crankshaft seal which can wear out and leak oil onto your harmonic balancer and driveway.
Symptoms of a Bad Timing Cover
- Oil Leaks: The most common sign is engine oil dripping from the front of the engine. It often starts at the crankshaft seal behind the main pulley (harmonic balancer).
- Coolant Leaks: Since the water pump bolts to the timing cover, a corroded or warped cover can cause coolant to leak from the water pump gasket surfaces.
- Difficult Sealing: A major leak point is where the timing cover, oil pan, and engine block all meet. A bad seal here is very common, especially after a timing chain replacement if not done carefully.
- Visible Damage: Physical damage from road debris or corrosion can create holes or cracks in the cover itself.
Choosing the Right Aftermarket Timing Cover
Since original GM parts are no longer available, you'll be choosing from aftermarket brands. They fall into a few quality tiers.
| Brand Tier | Brands | Materials & Features | Best For |
|---|---|---|---|
| Good (Value) | Pioneer Cable, Spectre | Basic stamped steel, sometimes chrome-plated. Often includes a new seal and gasket. | Budget-conscious repairs and stock applications where a basic cover is all that's needed. |
| Better (OE-Style) | Dorman, ATP, Cloyes (Standard) | Heavier stamped steel or basic cast aluminum. Designed to match original equipment fit and function. Cloyes is a well-respected brand in timing systems. | A reliable, durable replacement for a daily driver or work vehicle without needing performance upgrades. |

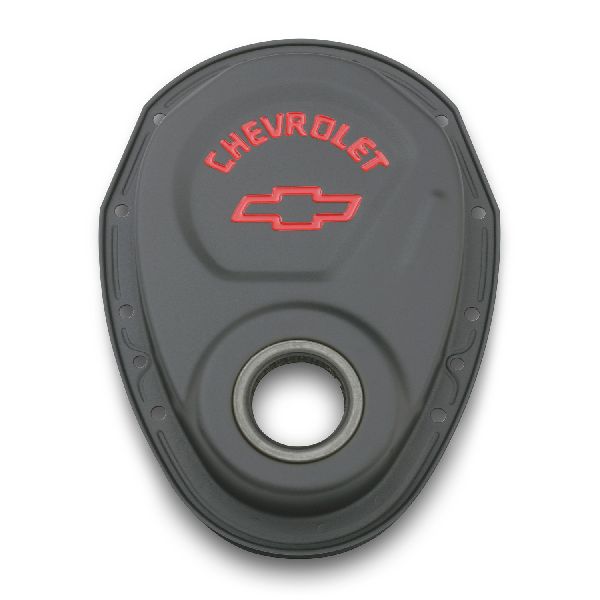

| Best (Performance/Upgrade) | Proform, Cloyes (Performance), Spectre (Aluminum) | Thick cast aluminum construction that resists flexing and provides a better sealing surface. Some are two-piece designs for easier camshaft access. May come in polished, black, or chrome finishes. | Owners of RVs or heavy-duty work trucks who want maximum durability and sealing. Also great for performance engine builds. |
Pro Tip: Upgrading to a cast aluminum cover is a smart choice for these heavy-duty vehicles. The thicker, more rigid material is less likely to flex or warp, providing a more reliable seal over the long term, especially around the water pump and oil pan areas.
Frequently Asked Questions (FAQ)
What else should I replace with the timing cover?
This is the perfect time for other maintenance. You should strongly consider replacing the timing chain and gears, the water pump, the front crankshaft seal (it usually comes with the cover), and the harmonic balancer if it has a groove worn into it from the old seal.
Do I need to remove the oil pan to replace the timing cover?
While some have managed without, it is highly recommended to at least loosen the front bolts of the oil pan and pry it down slightly. This gives you the necessary clearance to properly install the bottom of the timing cover and its seal, which is critical for preventing a major oil leak at the front corners of the pan.
Can I reuse my old timing cover?
You can if it's in perfect condition, with no corrosion, cracks, or warping. However, given the age of the vehicle and the low cost of a new cover, installing a new one is cheap insurance against future leaks and saves you from having to do the job twice.
Are there any recalls on the P30 timing cover?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls for the engine timing cover on the 1975-1981 Chevrolet P30.
Technical Specifications
Fitment is specific to Chevrolet Small-Block Gen I (e.g., 283, 305, 350, 400) or Big-Block Mark IV (e.g., 454) engines. Materials include stamped steel (standard) and cast aluminum (upgrade). Some covers are designed for specific water pump lengths (short vs. long) and harmonic balancer diameters.
