A Practical Guide to the 1975-1981 Ford F-150 Headlight Switch
If your headlights or dash lights are flickering or have gone dark, the switch is the most likely cause.
- Headlights that turn off and on by themselves are the most common and dangerous symptom of a failing switch.
- Replacement is simple and can be done by a DIYer in under an hour with basic tools.
- A new aftermarket switch is the best option, as used original parts are likely to have the same age-related issues.
- Always inspect the wiring connector for melting or damage when replacing the switch.
Recognizing a Failing Headlight Switch
The headlight switch on these classic Ford trucks is a common failure point due to its age and design. The internal components, especially the built-in circuit breaker, wear out from decades of use and heat. Here are the most common signs that your switch needs to be replaced:
- Headlights Cutting Out: Your headlights may suddenly turn off while driving at night, then turn back on after a few seconds or minutes. This is a classic symptom of the internal circuit breaker overheating and tripping.
- Flickering or Inconsistent Lights: You might notice your headlights, taillights, or dash lights flickering. Sometimes, jiggling the switch knob makes them work temporarily.
- Dash Light Dimmer Failure: The small wheel or rotating part of the knob that controls the brightness of your dashboard lights may stop working. The dash lights might be stuck on full brightness or not work at all.
- Lights Only Work in Certain Positions: The switch may fail to activate the correct lights in one position (e.g., parking lights work but full headlights do not).
- Melted Connector: When you pull the switch out, you may find that the plastic connector where the wiring harness plugs in is melted or burnt. This is a clear sign of overheating and a bad connection.
Choosing the Right Aftermarket Switch
For a truck of this era, finding a new headlight switch from Ford (OEM) is no longer possible. Your options are a used part from a salvage yard or a new aftermarket part. Given that the original switches fail from age, installing a 40-year-old used switch is a gamble. A new aftermarket switch is the most reliable and recommended solution.
🎬 Watch this quick walkthrough of an F100 light switch replacementThe brands you will find are typically direct-fit replacements, designed to work exactly like the original. There is little practical difference in quality between reputable aftermarket brands for a simple, common part like this.
- Standard Ignition (Standard Motor Products): A very common and long-trusted brand in the aftermarket world. They produce a wide range of electrical components and are a solid, reliable choice for this switch.
- Rostra Powertrain: While more known for transmission components and cruise control systems, Rostra has a reputation for producing quality electronic parts. If their switch is available, it is a viable option.
Pro Tip: While you are replacing the switch, it is a good idea to inspect the wiring harness connector. These are known to become brittle and can melt from the heat generated by a failing switch. Replacement connectors are available at most auto parts stores if yours is damaged.
Headlight Switch Replacement Cost
Replacing the headlight switch is an affordable repair. The primary cost is the part itself, as the labor is straightforward.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Headlight Switch | $32.43 - $60.01 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Is it difficult to replace the headlight switch myself?
No, this is a very feasible DIY job for beginners. The process involves reaching under the dash to press a release button on the switch body, which allows the knob and shaft to pull out. Then you unscrew a retaining nut from the front of the dash and unplug the old switch from behind. The entire job can usually be done in under an hour with basic hand tools.

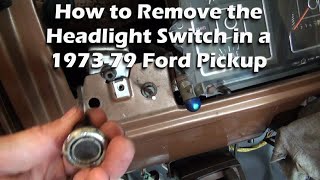

🎬 See how to remove and install the switch on an F150Are there any recalls on the headlight switch for this truck?
No, there are no active recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for the headlight switch on the 1975-1981 F-150. 🎬 Watch: Step-by-step headlight switch replacement for classic Ford pickups The issues seen today are related to the normal wear and tear of a 40+ year old electrical part.
Why do my headlights turn off and on by themselves?
This is caused by the self-resetting internal circuit breaker inside the headlight switch. As the switch ages, resistance builds up, creating heat. This heat trips the breaker, cutting power to the lights. Once it cools for a few seconds, it resets, and the lights come back on, only to repeat the cycle. This is a serious safety issue and a clear sign the switch must be replaced.
My high beams don't work. Is that the headlight switch?
It could be, but it's more likely the floor-mounted dimmer switch. The main headlight switch sends power to the dimmer switch, which then toggles between high and low beams. If your headlights work on low beam but not high beam (or vice-versa), check the dimmer switch on the floor first.
Helpful Videos
Technical Specifications
OEM Part Numbers: D3TZ-11654-A D8TZ-11654-A
Pull-style switch with integrated rheostat for dash light dimming and an internal circuit breaker.
