Cadillac Eldorado Starter Motor Guide (1975-1982)
Don't get stranded by a 'click-no-start'; understand the right starter for your classic Eldorado.
- A clicking sound when starting is the most common sign of a failing starter or a weak battery connection.
- Heat soak is a common issue on these large V8s; consider a high-torque starter or heat shield as a permanent fix.
- Before replacing the starter, always inspect the battery, ground straps, and all cable connections for corrosion or looseness.
- Proper shimming is crucial during installation to prevent grinding noises and damage to the new starter and flywheel.
Is Your Eldorado's Starter Failing?
A failing starter on a 1975-1982 Eldorado often gives clear warning signs. The most common symptom is a clicking sound when you turn the key, but the engine doesn't crank. This can be a single click or a rapid chattering. You might also experience slow, sluggish cranking, as if the battery is weak. Sometimes, the starter might work intermittently, starting the car fine one time and failing the next. In some cases, you might hear a grinding noise during or after starting, which could indicate a problem with the starter gear or the flywheel.
A Common Issue: Heat Soak
A frequent problem for these big V8 Cadillacs is "heat soak." This happens when the starter gets very hot from the engine's heat, especially after a long drive. The heat increases electrical resistance, meaning the starter can't draw enough power to turn the engine over. You park the car, come back 15 minutes later, and it won't start until it cools down. This is often mistaken for a bad battery. 🎬 Learn more about what causes starter heat soak and fixes. A modern, high-torque mini-starter or a starter heat shield can be effective solutions.
Choosing the Right Aftermarket Starter
For a vehicle of this age, new OEM parts are virtually nonexistent. Aftermarket starters are the go-to solution, offering a range of quality and price. The original starters were large, heavy, direct-drive units. Many modern aftermarket options are smaller, lighter gear-reduction or "mini-starters" that provide more cranking torque, which is a significant upgrade.
Brand Quality Tiers

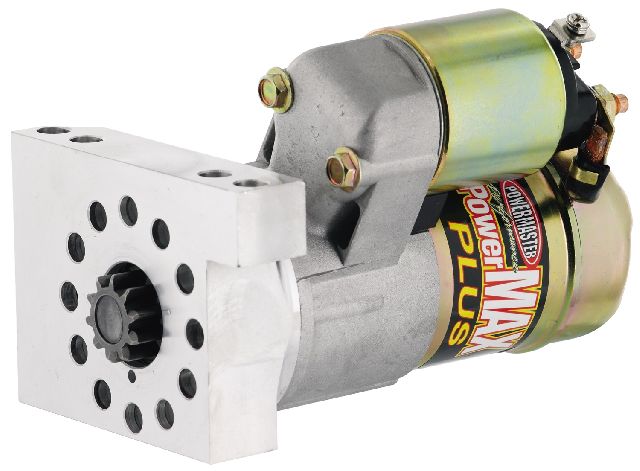

- Tier 1 - Premium Aftermarket (Powermaster, Proform): These brands often specialize in high-performance and high-torque starters. Powermaster is known for individually dyno-testing their starters and providing lightweight, gear-reduction units that can clear custom exhaust headers. They are an excellent choice for owners who want maximum reliability and cranking power, especially if dealing with heat soak issues.

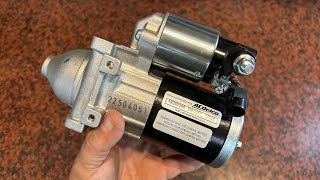

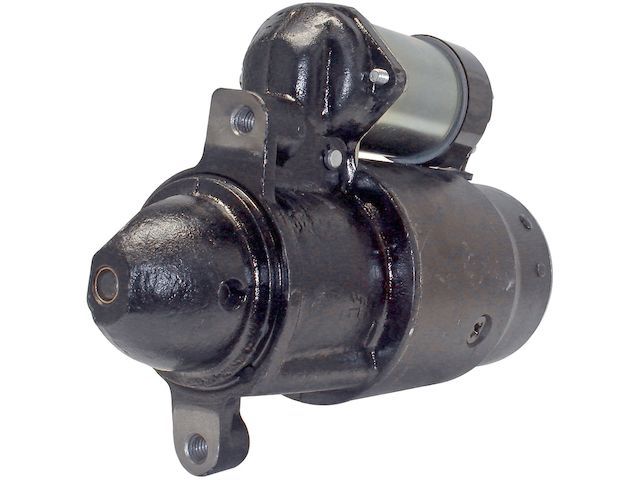

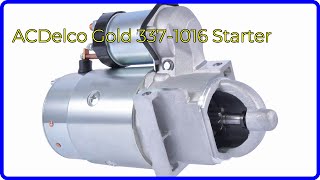

- Tier 2 - OEM-Equivalent (ACDelco): ACDelco was the original equipment manufacturer (OEM) for General Motors. Their Gold line offers both new and remanufactured starters that are built to meet or exceed original specifications. While often more expensive than other aftermarket options, they provide a trusted fit and performance for owners seeking a factory-style replacement. 🎬 Watch this essential review of the ACDelco Gold starter.

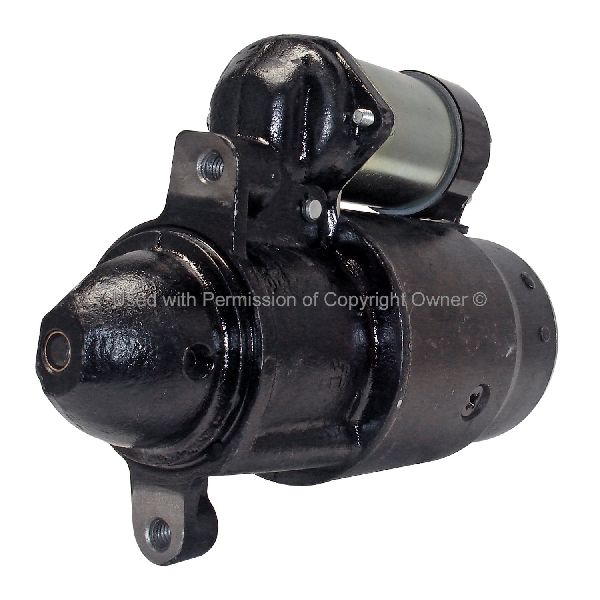

- Tier 3 - Standard Aftermarket (MPA, Remy): Brands like MPA and Remy often provide remanufactured starters that are a cost-effective solution. These parts are rebuilt with some new components and are a popular choice for daily drivers and budget-conscious repairs. Quality can sometimes be inconsistent with remanufactured parts, but they typically come with a warranty.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket (Standard) | $80 - $150 |
| New Aftermarket (High-Torque) | $200 - $385 |
| Remanufactured Aftermarket | $77 - $130 |
| Shop Labor | $120 - $250 |
Pro Tip: Check Your Cables and Shims
Before replacing the starter, always check your battery, battery cables, and ground straps. A corroded or loose connection can mimic the symptoms of a bad starter. On these Cadillacs, bad ground connections are a common cause of starting problems. Also, proper installation is critical. Some starters require shims to align the starter gear correctly with the flywheel. Incorrect shimming can cause grinding noises and damage both the new starter and the flywheel.
Frequently Asked Questions
Are there any recalls for the starter on my Eldorado?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the starter motor on the 1975-1982 Cadillac Eldorado.
What's the difference between a new and a remanufactured starter?
A new starter is made with all new components. A remanufactured starter uses the original housing (the core), which is cleaned and inspected, and is then rebuilt with new internal wear parts like bushings, contacts, and sometimes the solenoid. High-quality remanufactured parts from a reputable brand can be a reliable, budget-friendly option.
Why should I consider a high-torque 'mini-starter'?
A high-torque mini-starter, like those from Powermaster, offers several advantages. They are lighter, smaller, and use a gear-reduction design to produce more cranking power with less electrical draw. This is especially helpful for engines with high compression or for solving heat soak problems.
What causes the clicking noise?
The click is the sound of the starter solenoid trying to engage. If there isn't enough battery power to turn the starter motor itself, or if the starter motor has failed, you will only hear the click. A rapid clicking or chattering noise usually points to a dead or very low battery.
Can I replace the starter myself?

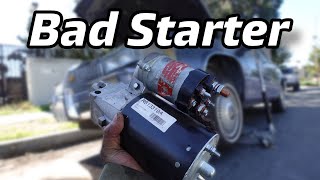

Yes, for a DIY-er with some experience, this is a manageable job. It typically involves disconnecting the battery, raising the vehicle safely, removing a heat shield if present, disconnecting the electrical wires, and unbolting the starter. You will need a good socket set with extensions. 🎬 See a step-by-step guide on replacing a Cadillac starter. However, the starter is heavy and in a tight spot, so it can be challenging.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1108522 1109069
The original starter is a large, direct-drive unit. Aftermarket options include direct replacements and smaller, gear-reduction high-torque models. The system is 12-volt. Proper shims are required for correct installation.
