Ford E-250 Econoline (1975-1982) HVAC Blower Motor Replacement Guide
Get the air flowing in your classic Econoline van again by diagnosing and replacing a worn-out blower motor.
- A fan that only works on 'High' usually means the blower motor resistor is bad, not the motor.
- Replacement is straightforward, located on the passenger-side firewall, but requires removing the battery for access.
- Tapping the motor housing to make it work temporarily is a sure sign the motor itself needs replacement.
- For this van's age, a quality aftermarket brand like Continental or Four Seasons is a practical and reliable choice.
Is Your Econoline's Fan on the Fritz?
If the vents in your 1975-1982 Ford E-250 have stopped blowing air, the blower motor is a likely culprit. In these classic vans, the HVAC system is straightforward, and troubleshooting is usually simple. A failing motor can leave you without heat in the winter or AC in the summer, and more importantly, no defrost to clear your windshield.
Symptoms of a Failing Blower Motor
Watch for these common signs that your blower motor is wearing out. Because these vans are from a simpler era, the symptoms are usually very direct.
- No Air From Vents: The most obvious sign is when you turn the fan on and nothing happens at any speed.
- Weak Airflow: If the fan blows, but the stream of air is much weaker than it used to be, the motor may be getting tired and losing speed.
- Fan Only Works on High: This is a classic symptom of a bad blower motor resistor, not the motor itself. The 'high' setting bypasses the resistor, sending full power directly to the motor. If it works on high but not on lower speeds, check the resistor first.
- Unusual Noises: Squealing, grinding, or rattling sounds from the passenger side of the dash or firewall when the fan is on point to worn-out motor bearings or debris in the fan cage.
- Works Intermittently: A motor that cuts in and out, or one that starts working after you hit a bump, is a sure sign of internal wear or a loose connection. Tapping on the motor housing on the passenger-side firewall might make it temporarily start working, confirming the motor is the problem.
Choosing the Right Aftermarket Blower Motor
For a vehicle from this era, finding a new original equipment (OEM) Ford part is nearly impossible. The market consists of new aftermarket parts, which are affordable and widely available. Here’s a breakdown of common brand tiers:
- Premium Aftermarket (e.g., Continental): Brands like Continental often supply parts directly to automakers and are known for high-quality engineering that meets or exceeds original specifications. If you want the best fit and longest life, this is a solid choice.
- Standard Aftermarket (e.g., Four Seasons, Global Parts): Four Seasons and GPD are well-known names in the HVAC parts world. They offer a good balance of quality and value, making them a popular choice for DIY repairs and professional shops alike. While some users in forums mention potential noise with budget brands, they are generally considered reliable replacements.
Typical Replacement Costs
Costs are estimates and can vary by location and supplier.
| Part | Estimated Cost |
|---|---|
| New Aftermarket Blower Motor | $48 - $94 |
| Blower Motor Resistor | $10 - $30 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Where is the blower motor located on my 1975-1982 E-250?
The blower motor is located in the engine compartment, on the passenger-side firewall. It is housed within the large plastic or metal HVAC box.
Is replacing the blower motor a difficult job?
No, this is a DIY-friendly job for someone with basic tools. Access is the main challenge. You will likely need to remove the battery and battery tray to get enough room to work. The motor itself is typically held in with a few screws.
Do I need any special tools?
You'll need basic hand tools like a socket set (likely 5/16-inch or 8mm sockets), a ratchet, and possibly some extensions. No special tools are required for this job.
Should I buy the motor with the fan cage included?

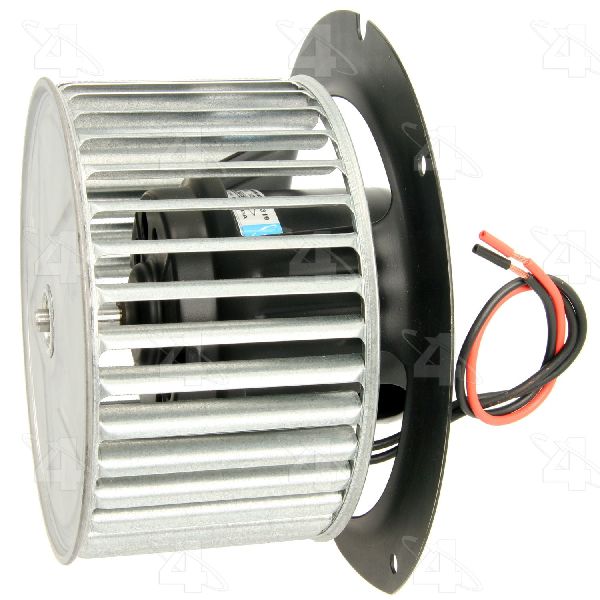

Yes. Most aftermarket motors come as a complete assembly with the 'squirrel cage' fan already attached. This saves you the trouble of swapping the old fan onto the new motor and ensures the parts are balanced correctly to avoid vibration.
Technical Specifications
Rotation: Clockwise. Vent Tube: Yes. Style: Motor and Wheel/Cage.
