Jeep CJ5 Starter Solenoid Guide for 1975-1983 Models
Having starting trouble with your classic CJ5? Your firewall-mounted starter solenoid could be the culprit.
- The solenoid is on the firewall, not the starter, making it very easy to access and replace.
- Always check your battery, cables, and ground connections before condemning the solenoid, as these are common culprits.
- When replacing, ensure the mounting surface is clean for a good ground and carefully label the 'S' and 'I' wires to avoid mixing them up.
- Aftermarket quality can be inconsistent; buying from a supplier with a good warranty is recommended in case you get a defective part.
Is Your CJ5 Starter Solenoid Failing?
A bad starter solenoid is a common reason for a Jeep CJ5 to not start. Because these classic Jeeps have simple electrical systems, symptoms are usually straightforward. However, the signs of a bad solenoid can sometimes be confused with a weak battery or corroded cables.
Key Failure Symptoms
- Loud Click, No Crank: This is the most classic symptom. You turn the key and hear a single, solid 'CLICK' from the engine bay, but the engine does not turn over. This usually means the solenoid is receiving the signal from the key but is failing to send power to the starter.
- No Sound at All: You turn the key and nothing happens. No click, no crank. This can point to a completely failed solenoid, but you should check your battery and ignition switch first.
- Intermittent Starting: The Jeep starts fine one day but only clicks the next. This suggests the internal contacts of the solenoid are worn and making a poor connection.
- Starter Keeps Running: After the engine starts and you release the key, the starter motor continues to run. This is a dangerous situation caused by the solenoid's internal switch being stuck or 'welded' in the closed position. You must disconnect the battery immediately to prevent damage to the starter.
- Buzzing or Melting Wires: A buzzing sound from the solenoid area, or wires that get very hot and melt, indicates a severe electrical short either in the solenoid or the starter itself.
Check Your Battery & Cables First!
Many starting problems on a CJ5 are caused by simple issues. Before replacing your solenoid, always check for a fully charged battery and clean, tight battery cable connections at the battery, engine block, and solenoid itself. A poor ground connection is a very common problem that can mimic solenoid failure.
🎬 Watch: How to make your CJ-5 start reliably every time.Choosing the Right Aftermarket Solenoid
For a vintage vehicle like the 1975-1983 CJ5, new original equipment (OEM) parts are generally not available. The market consists of aftermarket replacements. Quality can vary, so it's important to know the brands.
Common Ordering & Installation Mistakes
- Wrong Part: There were a few different solenoid designs used that look similar. Ensure the part number you order matches your vehicle's engine and transmission configuration.
- Bad Ground: The solenoid grounds to the body of the Jeep through its metal mounting bracket. Make sure the mounting point on the firewall is clean, bare metal for a solid connection.

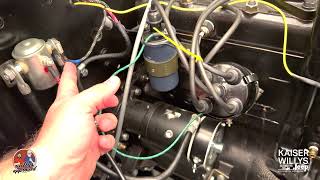

- Switched Wires: Accidentally swapping the small 'S' and 'I' terminal wires is a frequent mistake. This can cause the starter to run continuously. Label your wires before removal. 🎬 See this guide for correct starter solenoid wiring and connections.
Frequently Asked Questions (FAQ)
Where is the starter solenoid located on a 1975-1983 CJ5?
Unlike modern cars, the starter solenoid on a CJ5 from this era is not on the starter motor. It is mounted separately on the vehicle's firewall, typically on the passenger side of the engine compartment. You can identify it by the large battery cable connected to one of its main posts.
Why does my new starter solenoid just click or not work at all?
First, double-check that all your wires are connected to the correct terminals and are tight. Second, ensure the solenoid has a good ground to the firewall. Unfortunately, it is also a known issue in Jeep forums for new aftermarket solenoids to be bad right out of the box. It may be worth exchanging the part for another one.
🎬 Watch: A quick hack for a clicking but not cranking starter.What is the difference between the 'S' and 'I' terminals?
The two small posts on the solenoid are for 'Start' and 'Ignition'. The 'S' terminal receives a 12-volt signal from the ignition switch when you turn the key to start the engine, which activates the solenoid. The 'I' terminal sends 12 volts out to the ignition coil, bypassing the ballast resistor, only while the engine is cranking. This provides a hotter spark for easier starting.
How difficult is it to replace the solenoid myself?
Replacing the firewall-mounted solenoid on a CJ5 is a very simple job suitable for a beginner. It requires basic hand tools and typically takes less than an hour. The process involves disconnecting the battery, removing four to five wires (two large cables and two or three small wires), and unbolting the solenoid from the firewall.
Helpful Videos
Technical Specifications
OEM Part Numbers: J3235898
Firewall-mounted, 12-Volt, 4-terminal (2 large posts, 2 small posts for Start and Ignition).
