Ford E-250 Econoline (1975-1985) Starter Motor: A Comprehensive Guide
Solve starting problems and choose the right replacement starter for your classic Ford van.
- A common failure point is not the starter itself, but the inexpensive fender-mounted solenoid; check this part first.
- Heat soak is a frequent problem for V8 models; upgrading to a gear-reduction starter from a brand like Powermaster is a common and effective solution.
- Ensure you buy the correct starter for your specific engine (4.9L, 5.8L, 7.5L, etc.) and transmission (auto/manual) to prevent fitment issues and damage.
- Always clean electrical connection points and check battery cables when installing a new starter to ensure proper performance.
Is Your E-250 Starter Failing?
A failing starter on a 1975-1985 Ford E-250 Econoline can leave you stranded. The symptoms often start small but can quickly lead to a no-start situation. Recognizing the signs early can save you a headache down the road.
Common Failure Symptoms:
- Single Loud Click: You turn the key and hear one sharp click, but the engine doesn't turn over. This often points to a bad starter solenoid, which is the small cylinder attached to the starter motor responsible for engaging the starter drive.
- Slow, Labored Cranking: If the engine turns over much slower than usual, like it's struggling, the starter motor itself could be worn out and drawing too much power.
- Grinding Noise: A harsh grinding sound during startup indicates that the starter's gear is not meshing correctly with the engine's flywheel, or the teeth on either gear are damaged.
- No Sound at All: Complete silence when you turn the key could mean a dead battery, but if the lights and accessories work, the starter or its electrical connections are the likely culprits.
- Hot-Start Problems (Heat Soak): A very common issue on these Ford vans, especially with V8 engines like the 351W and 460, is starter heat soak. The starter is located near the hot exhaust manifold. When the engine is hot, the starter absorbs that heat, increasing its internal electrical resistance. This prevents it from drawing enough power to crank the engine until it cools down.
OEM vs. Aftermarket Starters
For a vehicle of this age, finding a brand-new Original Equipment (OEM) Motorcraft starter is highly unlikely. Most available OEM parts are remanufactured. Aftermarket manufacturers offer a wide range of new and remanufactured starters that meet or exceed original specifications. High-quality aftermarket brands often provide excellent reliability and can even offer significant upgrades over the original design.
Pro Tip: The Fender Solenoid
These Econoline vans use a fender-mounted starter solenoid (also called a relay) in addition to the solenoid on the starter itself. Often, a “click-no-crank” symptom is caused by this inexpensive and easy-to-replace fender solenoid 🎬 Watch this quick guide on replacing the fender solenoid relay., not the starter motor. Always check your battery, connections, and this relay before replacing the entire starter.
Choosing the Right Aftermarket Starter
The starter you need depends on your van's engine (e.g., 4.9L I6, 5.0L V8, 5.8L V8, 7.5L V8) and transmission (manual or automatic), as these determine the starter's mounting and gear. Always verify the fitment for your specific configuration.
Brand Tiers:
- Performance (High-Torque / Gear Reduction): Brands like Powermaster and MSD offer high-torque, gear-reduction starters. These are smaller, lighter, and more powerful than the original direct-drive units. They are an excellent upgrade for vans with high-compression engines or those suffering from heat soak, as they spin the engine faster with less electrical draw. Many owners report that a Powermaster starter solved their chronic hot-start problems.

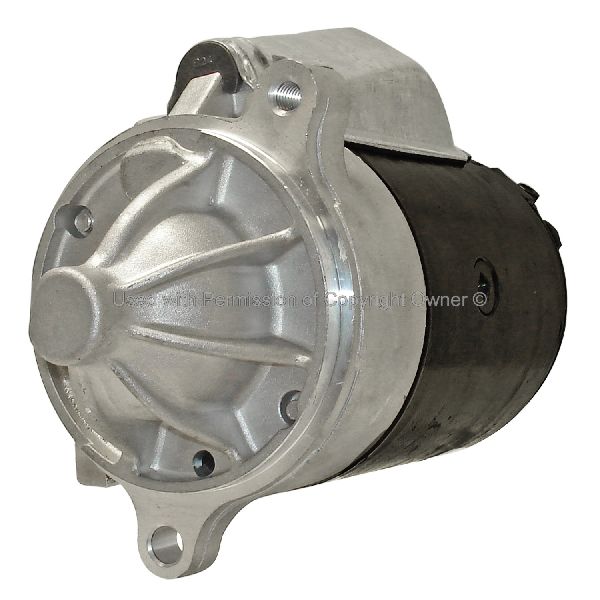

- Premium Aftermarket: Brands such as MPA and Proform offer new and remanufactured starters that are designed as direct, reliable replacements for the original part. They provide a good balance of quality and value for daily-driver use.
- Accessories: Mr. Gasket is known for accessories like starter heat shields, which can be a great, low-cost addition to help protect any starter from exhaust heat.
A Note on Installation and Fitment
While replacement is generally straightforward, some high-torque starters from brands like Powermaster or MSD may have adjustable mounting blocks (clocking) to ensure clearance around headers and the engine block. In some cases, minor modifications or careful positioning may be needed for a perfect fit. Also, ensure all your battery cables and ground connections 🎬 See a step-by-step walkthrough of the full starter installation process. are clean and tight for the new starter to work correctly.
Cost of a New Aftermarket Starter (1975-1985 Ford E-250)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $93.65 - $391.59 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Do I need a special starter for my 460 V8 engine?
Yes, you must get a starter specified for your engine and transmission combination. A starter for a 460 V8 with an automatic transmission is different from one for a 351W V8 or one with a manual transmission. Using the wrong one can lead to grinding or damage to the starter or flywheel.
What is a gear-reduction starter and is it a good upgrade?
A gear-reduction starter uses internal gears to multiply the motor's torque, allowing a smaller, lighter motor to crank the engine with more force and speed. It's a highly recommended upgrade for these vans, especially if you have hot-start (heat soak) issues or a modified engine. Brands like Powermaster specialize in these.
My van just clicks. Is it the starter or the solenoid?
It could be either, but your Econoline has a solenoid on the fender wall that often fails first. If you hear a click from the engine bay but not from the starter itself, the fender solenoid is a likely culprit. Testing or replacing this inexpensive part first can save you from buying a starter you don't need.
What is 'heat soak' and how can I fix it?
Heat soak happens when the starter gets so hot from the nearby exhaust that it can't crank the engine until it cools down. The best fixes are upgrading to a powerful gear-reduction starter that overcomes the heat-induced resistance, or installing a heat shield or wrap around the starter 🎬 Learn how to properly wrap your starter with a heat shield. to protect it.
Helpful Videos
Technical Specifications
The starter type is dependent on the engine and transmission combination. Options include original-style direct-drive starters and upgraded high-torque, gear-reduction starters. Most starters for this application are secured with two or three bolts. The electrical system utilizes a fender-mounted starter relay in addition to the starter-mounted solenoid.
