Volkswagen Rabbit Windshield Washer Pump Replacement Guide (1975-1985)
If your washer fluid isn't spraying, the pump is a likely and easy-to-fix problem on your Mk1 Rabbit.
- Before replacing the pump, always check the washer fluid level and the fuse.
- This is a very easy DIY repair that most owners can complete in under 30 minutes.
- If your Rabbit has a rear wiper, verify if your old pump has one or two hose outlets before ordering a new part.
- Consider replacing the rubber grommet that seals the pump to the reservoir to prevent future leaks.
Is Your Rabbit's Windshield Washer Pump Failing?
When the washer pump on a Mk1 Rabbit stops working, the signs are straightforward. Given the age of the vehicle, this is a common failure point. Before you decide the pump is broken, always check two simple things first: make sure the washer fluid reservoir is full and check the fuse for the washer system. If those are good, a bad pump is the next logical cause.
Symptoms of a Bad Washer Pump
- No Sound, No Spray: You activate the washer switch and hear nothing. The wipers may move, but no fluid sprays and there is no humming sound from the pump motor. This usually means the pump's electric motor has failed.
- Pump Hums, But No Fluid: You can hear the pump motor running, but little or no fluid comes out. This can mean the pump's internal parts are broken. However, it's also commonly caused by clogged washer nozzles or old, cracked hoses that are leaking.
- Weak or Uneven Spray: The fluid just dribbles out or doesn't reach the middle of the windshield. This indicates the pump motor is getting weak and can no longer create enough pressure.
- Works for Front but Not Rear (or vice-versa): On hatchback models with a rear wiper, a single dual-outlet pump is often used. If it works in one direction but not the other, the pump itself has failed internally.
Pro Tip: Check Hoses and Grommet
On a car this old, rubber and plastic parts get brittle. When you replace the pump, it's a good time to inspect the washer fluid hoses for cracks. Also, check the rubber grommet that seals the pump to the reservoir. These often crack and cause leaks. It is highly recommended to replace the grommet at the same time as the pump.
Choosing the Right Aftermarket Pump: Trico vs. URO Parts
For a vintage car like the 1975-1985 Rabbit, finding a new original (OEM) pump is not practical. The best choice is a new aftermarket part. Trico and URO Parts are two common brands available.
- Trico: Trico is a well-established brand that has specialized in windshield wiper systems for decades. Their pumps are generally considered reliable, quality replacements designed to fit and function like the original part without modification. They are a solid, mid-tier choice for an owner looking for a fit-and-forget repair.
- URO Parts: URO Parts is known for providing a wide range of parts for European cars at a budget-friendly price. They are often the most affordable option. While many users find them perfectly adequate for simple components like a washer pump, some in the European car community view them as a lower-tier brand compared to more established names. For a simple part like this, a URO pump is a viable low-cost solution.
Ultimately, for a non-critical component like a washer pump on a Rabbit, both brands offer a functional replacement that will get your system working again. The price difference is usually minimal.
Windshield Washer Pump Replacement Cost
Replacing the washer pump on a Mk1 Rabbit is an inexpensive repair. The part itself is affordable, and if you have it done at a shop, the labor is minimal because the pump is easy to access.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $29.34 - $31.96 |
| Shop Labor | $95 - $177 |
| Total Professional Replacement | $124 - $209 |
Cost estimates are approximate and may vary based on your location and shop rates.
Frequently Asked Questions (FAQ)
Where is the washer pump located on a 1975-1985 Rabbit?
On the Mk1 Rabbit, the windshield washer pump is almost always located in the engine bay. You will find it pushed directly into a rubber grommet on the side or bottom of the windshield washer fluid reservoir bottle. It's a small, cylindrical part with an electrical plug and one or two hose connections.
Can I replace the washer pump myself?
Yes, this is a very easy DIY job suitable for any skill level. The process involves unplugging the electrical connector, pulling the hoses off, and wiggling the old pump out of the reservoir. Have a bucket ready to catch any fluid that drains out. The new pump simply pushes back into place. The entire job can usually be done in under 30 minutes with no special tools.
Is the front and rear washer pump the same part?
On Rabbit hatchback models equipped with a rear wiper, the car typically uses a single, reversible pump with two outlets. One outlet feeds the front nozzles, and the other feeds the rear. When ordering, it is very important to check if your old pump has one or two hose outlets to ensure you buy the correct replacement.
Are there any recalls for the Rabbit washer pump?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls for the windshield washer pump on the 1975-1985 Volkswagen Rabbit.

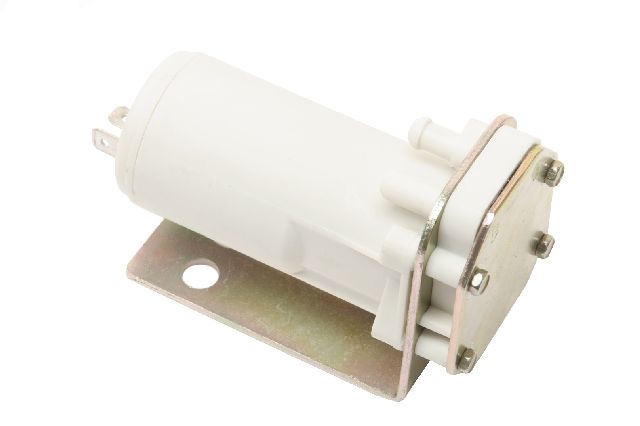

Technical Specifications
OEM Part Numbers: 823955651 171955651 431955651
Push-fit type, mounts directly to washer fluid reservoir. Available in single outlet (front only) or dual outlet (front and rear) configurations.
