Chevrolet C10 Speedometer Cable Guide (1975-1986)
Everything you need to know before buying a new speedometer cable for your Square Body Chevy.
- A bouncing needle or squealing noise from the dash are classic signs of a failing speedometer cable.
- Measure your old cable before ordering a new one; length is the most critical factor for a correct fit.
- Always lubricate the inner core of a new standard replacement cable before installation for smooth operation.
- For a more reliable, long-term fix, consider upgrading to a premium cut-to-fit cable from a brand like Lokar.
Is Your C10 Speedometer Acting Up?
On a classic truck like the 1975-1986 C10, the speedometer system is entirely mechanical. This means that over decades of use, the speedometer cable is a common wear item. The inner cable can dry out, fray, or snap, and the outer housing can get kinked or damaged. These issues are the most frequent cause of speedometer problems in these trucks.
Symptoms of a Failing Speedometer Cable
If your speedometer cable is going bad, you'll likely notice one or more of these signs:
- Bouncing or Wavering Needle: The speedometer needle jumps around erratically, especially at a steady speed. This is often the first sign of a dry or binding cable.
- Squealing or Grinding Noises: You might hear a squeaking, grinding, or clicking noise coming from behind the dashboard that changes with vehicle speed. This is caused by the dry inner cable rubbing against its outer housing.
- No Speed Reading: The speedometer needle doesn't move at all. This usually means the inner cable has snapped completely or has become disconnected at the transmission or the gauge cluster.
Pro Tip: Diagnosing the Cable
You can test your cable and speedometer with a power drill. Disconnect the cable from the transmission, chuck the inner cable into a drill, and run the drill in reverse. Have a helper watch the gauge cluster. If the speedometer needle moves smoothly, the issue is likely with the plastic gear inside the transmission. If the needle still bounces or doesn't move, the cable or the speedometer head itself is the problem.
🎬 Watch: Comprehensive guide to C10 speedometer and cable diagnosticsChoosing the Right Aftermarket Speedometer Cable
Since OEM speedometer cables for this generation of C10 are no longer readily available new, the aftermarket is your primary source. Quality can vary, so it's important to know what you're buying.
Brand & Quality Tiers
Economy/Standard Replacement (Pioneer, ATP):
Brands like Pioneer and ATP offer direct-fit replacement cables that are affordable and widely available. They are designed to function like the original part. However, some owners report that these cables can be of lower quality than the originals, sometimes leading to a bouncy needle even when new. It is highly recommended to pull the inner cable out of the housing and lubricate it with graphite or white lithium grease before installation, as they often come dry from the factory.
🎬 See how to lubricate your cable to fix a bouncing needlePremium/Heavy-Duty (Lokar, B&M):
For a more robust and long-lasting solution, brands like Lokar offer premium "cut-to-fit" cables. These often feature a stainless steel braided housing and a higher quality inner cable with a special liner for smoother operation. While more expensive, they are a great choice for restored, restomod, or hard-working trucks. They require you to cut both the inner cable and outer housing to the perfect length for your specific truck, which can provide a cleaner installation.
Common Ordering Mistake: Cable Length
The most critical specification is the cable length. C10s came with various transmissions and options like cruise control, which affect the required cable length. Lengths can range from 61 to over 80 inches. Always measure your old cable before ordering a replacement. If you must guess, it's better to get a slightly longer cable and route it carefully away from hot exhaust parts and moving linkage, ensuring there are no sharp bends or kinks.
Cost of a New Speedometer Cable (1975-1986 Chevrolet C10)
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket (Standard) | $15 - $30 |
| New Aftermarket (Premium/Cut-to-Fit) | $80 - $152 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need a one-piece or two-piece cable?
Some C10s, especially those with cruise control, originally used a two-piece cable system. Whenever possible, it is recommended to replace a faulty two-piece system with a single, one-piece cable of the correct length for better reliability.
My new cable is installed, but the needle still bounces. What's wrong?
If a new, properly lubricated cable doesn't fix a bouncing needle, the problem may be with the speedometer head (the gauge itself) or the plastic drive/driven gears in the transmission. The gears can wear out, and the speedometer head may need to be professionally cleaned and lubricated.
How hard is it to replace the speedometer cable myself?
For a DIY mechanic, this is a relatively easy job. It involves accessing the back of the instrument cluster and unscrewing the cable from the side of the transmission. The most difficult part is often reaching the clip on the back of the speedometer gauge from under the dash. No special tools are required, though pliers can help loosen a tight transmission-side fitting.

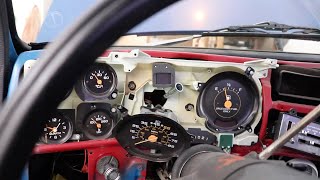

🎬 Watch this step-by-step C10 speedometer cable replacement walkthroughAre there any recalls for the speedometer cable on my C10?
No, there are no specific recalls for the speedometer cable on 1975-1986 Chevrolet C10 trucks. Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for later model trucks or for different components.
Helpful Videos
![How To Fix A Shaky/Bouncing Speedometer [BEST CABLE LUBE]](https://img.youtube.com/vi/FFvVLIaxOb4/mqdefault.jpg)
Technical Specifications
Common lengths include 61", 63", 80", and 83". The gauge-side connection is typically a clip-on style, while the transmission side is a threaded nut (often 7/8-18 female thread).
