Choosing the Right Spark Plug Wire Set for Your 1975-1986 Chevrolet K20
Get the right spark and keep your classic K20 running strong with a new set of spark plug wires.
- For a stock K20, quality standard replacement wires from brands like ACDelco or NGK are an excellent choice.
- If you have a modified engine or aftermarket headers, invest in performance wires with high-temp silicone insulation (8mm or larger) from brands like MSD or Taylor Cable.
- Always replace spark plugs and wires together for a complete tune-up.
- Ensure you order a set with the correct HEI-style distributor boots and appropriate spark plug boot angles for your application.
Signs of Failing Spark Plug Wires on a K20
The ignition system on the 1975-1986 Chevrolet K20 is straightforward, but worn-out spark plug wires can cause a variety of noticeable problems. Because these trucks were built before complex onboard diagnostics, you'll need to rely on what you can see, hear, and feel. Common symptoms include a rough idle, engine misfires (which you might feel as a stumble or hesitation), and reduced power and fuel economy. In some cases, you might have trouble starting the engine. You can often see the problem if you look under the hood in a dark garage; you might spot a blue spark arcing from a cracked wire to a metal part of the engine.
Choosing the Right Aftermarket Wire Set
For a vehicle from this era, aftermarket parts are the standard, and you have many excellent choices. The original factory wires are long gone, but brands like ACDelco are considered original equipment (OE) equivalent and are a reliable choice for a stock truck.
Brand Quality Tiers
| Tier | Brands | Best For |
|---|---|---|
| OE-Quality & Daily Driver | ACDelco, NGK, Denso, Standard | Owners of stock or lightly modified K20s looking for reliable, no-fuss performance that meets or exceeds original factory standards. These are trusted brands known for their fit and durability. |
| Performance & Heavy-Duty | MSD, Taylor Cable, Accel, Granatelli | Enthusiasts with modified engines, those who've added headers, or anyone wanting higher performance. These wires often feature thicker 8mm or larger silicone jackets for better heat resistance and lower electrical resistance for a hotter spark. |
Pro Tip: For K20s with V8 engines, especially those with aftermarket headers 🎬 See the best spark plug wire options for headers., heat is the biggest enemy of spark plug wires. Choosing a set with high-temperature silicone boots and thicker insulation (like 8mm or 8.5mm) is a smart investment to prevent melting and premature failure. Using dielectric grease on the inside of the boots will make future removal much easier and protects the connection.
Known Issues for This Vehicle
Searches for official recalls or Technical Service Bulletins (TSBs) related to spark plug wires for the 1975-1986 Chevrolet K20 did not yield any specific results. Ignition-related recalls from GM in recent history pertain to much newer vehicles and different issues, such as ignition switches and key removal problems. Any issues with wires on a truck of this age are due to normal wear and tear from heat and time, not a manufacturing defect.
Frequently Asked Questions (FAQ)
Do I need expensive performance wires for my stock K20?
No. For a stock engine, a quality OE-style set from a brand like ACDelco or NGK is perfectly adequate and will perform very well. Performance wires like MSD are excellent but are often considered overkill unless you have a high-compression or modified engine.
What's the difference between 7mm, 8mm, and 8.5mm wires?
The measurement refers to the outer diameter of the wire. A thicker wire (e.g., 8.5mm) generally has more insulation, offering better protection against heat and preventing voltage from arcing to the engine block. It can also have a lower-resistance core, which allows more energy to reach the spark plug. For a K20 with a V8, an 8mm or 8.5mm wire is a good upgrade for durability.
What are the most common mistakes when ordering?
The most common mistake is getting 🎬 Watch this before buying new wires for your Chevy truck. the wrong boot style for your distributor cap. Most 1975-1986 K20s use an HEI (High Energy Ignition) distributor, which requires specific HEI-style boots. Also, be mindful of the spark plug boot angle; most sets for these trucks use 90-degree boots for a clean installation, especially if you have aftermarket headers.
Should I replace my spark plugs 🎬 Learn how to install and gap plugs on a K20. at the same time?
Yes, it is highly recommended. Spark plugs and wires wear out together. Replacing them at the same time ensures a complete tune-up of your ignition system and restores performance and efficiency. It also saves you from having to do a similar job twice.
Helpful Videos

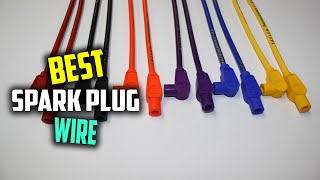

![Top 6 Best Spark Plug Wire for 5.3 Silverado/Chevy 350 With Headers & Performance [Review 2026]](https://img.youtube.com/vi/FGHnmOuueY4/mqdefault.jpg)
Technical Specifications
Wire Diameter: 7mm (stock) to 10.5mm (performance). Core Material: Spiral Core, Carbon Core. Insulation Material: Silicone. Distributor Boot Type: HEI. Spark Plug Boot Angle: Typically 90-degree, but straight and 135-degree boots exist.
