Chevrolet P30 Distributor Guide for 1975-1986 V8 Engines
Keep your workhorse running strong by understanding how to choose the right replacement distributor.
- A failing distributor on a Chevy P30 can cause no-starts, misfires, stalling, and backfiring.
- Replacing the distributor requires a timing light to set the ignition timing correctly.
- Aftermarket HEI distributors are the standard replacement, with brands like Pertronix offering a performance upgrade and WAI Global providing a solid OE-style option.
- It is highly recommended to replace the spark plug wires and inspect the cap and rotor when installing a new distributor.
Signs of a Failing Distributor
A bad distributor can cause a range of problems, from annoying to leaving you stranded. The most common issues stem from failed internal parts like the ignition module or pickup coil, or simply wear and tear from age. You might notice your engine misfiring, especially under load, or hear backfiring. A shaky or rough idle is another common sign. In more serious cases, the engine may crank but refuse to start, or it might stall unexpectedly when it gets hot and then restart after cooling down. A complete lack of spark is a definite sign pointing to a major ignition system problem, often the distributor.
No-Start Condition

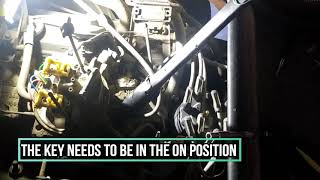

A common failure mode for the HEI distributor is a no-spark condition, which will prevent the engine from starting. 🎬 Watch a real-world diagnosis of a P30 no-spark condition. This is often caused by a failed ignition module or coil inside the distributor.
Choosing the Right Aftermarket Distributor
For a vehicle of this age, new OEM GM distributors are not a realistic option. The aftermarket, however, offers a wide selection of complete HEI distributors that are often an upgrade over the original design. These are typically brand-new units, not remanufactured.
Brand Tiers & Quality

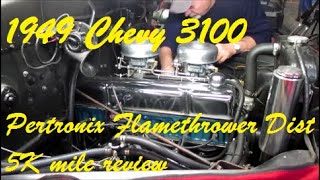

- Performance Upgrade (Pertronix, FAST): Pertronix is a well-regarded brand known for reliable electronic ignition systems. Their distributors often feature improved electronics (like the Ignitor II or III modules) that provide a stronger, more consistent spark, which can improve performance and reliability. 🎬 Check out this long-term review of the Pertronix Ignitor III. FAST is geared more towards high-performance and racing applications, offering features like programmable timing curves and rev limiters, which are likely overkill for a stock P30 workhorse.
- Standard Replacement (WAI Global): WAI Global produces 100% new distributors that are designed to be direct OE-quality replacements. They are a solid choice for owners who want a reliable, stock-performing part without the higher cost of performance brands. While generally reliable, some user reviews mention out-of-box failures, so it's important to test the part after installation. 🎬 See why testing aftermarket distributors is critical for reliability.
- Budget/Remanufactured (Cardone): Cardone is a major player in the remanufactured parts world, though they also offer new units. Quality can be inconsistent; some users report success, while others experience issues with internal components like modules or premature wear. These can be a cost-effective option, but they may require more careful inspection and carry a higher risk of early failure compared to premium new units.
Pro Tip: Check the Gear
The distributor has a gear on the bottom that meshes with the camshaft. Ensure your new distributor has a gear made of the correct material for your camshaft (most aftermarket HEI distributors for Chevy V8s use a gear compatible with standard cast cams). Using the wrong gear can cause catastrophic engine damage.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Distributor | $111.58 - $446.99 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost | $261.58 - $746.99 |
Frequently Asked Questions
Do I need special tools to replace my distributor?
Yes. While basic hand tools are needed to remove the old part, you absolutely need a timing light to install the new one correctly. Setting the ignition timing is a critical step. Incorrect timing can lead to poor performance, bad fuel economy, and even engine damage.
What is an HEI distributor?
HEI stands for High Energy Ignition. It was a major upgrade from the older points-based systems. An HEI distributor is a self-contained unit with the ignition coil built into the large-diameter cap, and it only requires a single 12-volt power wire to operate, making it a simple and reliable system.
Should I replace my spark plug wires at the same time?
It is highly recommended. Your new HEI distributor will have terminals that require HEI-style spark plug wire boots. Old wires can cause a weak spark and prevent you from getting the full benefit of your new distributor. It's a good time to replace the spark plugs as well.
Is a performance distributor worth it for my P30?
For a mostly stock P30 used as a motorhome or work truck, a high-end racing distributor from a brand like FAST is unnecessary. However, a quality upgrade from a brand like Pertronix can provide a more reliable and hotter spark, which can improve starting, idle quality, and throttle response. A good quality standard replacement from a brand like WAI Global is often sufficient.
Helpful Videos
Technical Specifications
HEI (High Energy Ignition) style distributor with integrated coil-in-cap. Application for Chevrolet Small Block (350ci) or Big Block (454ci) V8 engines. Requires 12-volt power source and HEI-style spark plug wires.
