Dodge W100 Speedometer Cable Guide for 1975-1989 Models
If your speedometer needle is bouncing, noisy, or dead, this guide is for you.
- Verify if your truck has a one-piece (non-cruise) or two-piece (cruise control) cable system before ordering.
- Standard brands like ATP and Pioneer are cost-effective for stock trucks; Lokar is a premium, cut-to-fit option for custom applications.
- Always lubricate the new inner cable with a suitable grease before installation to ensure a long service life.
- If a new cable doesn't fix the issue, inspect the plastic speedometer drive gear in the transmission for stripped teeth.
Is Your Speedometer Cable Failing?
A speedometer cable is a simple part, but when it fails, it can be annoying and unsafe. For the 1975-1989 Dodge W100, which uses a fully mechanical system, the signs of failure are usually obvious. Ignoring them means you can't accurately track your speed, which could lead to a speeding ticket.
Common Failure Symptoms
- Wavering Speedometer Needle: The needle bounces around, especially at a steady speed. This is often the first sign the cable is binding or wearing out.
- No Speed Reading: The speedometer needle doesn't move at all. This usually means the inner cable has snapped.
- Squealing or Grinding Noises: You hear a whining or squealing sound from behind the dashboard that changes with vehicle speed. This is caused by a dry or frayed cable rubbing inside its housing.
Choosing the Right Aftermarket Cable
Original Mopar speedometer cables for this era are nearly impossible to find new. Aftermarket is the go-to choice, and you have a few quality tiers to consider.
Standard Replacement Brands (ATP, Pioneer Cable)
These brands offer direct-fit, OEM-style replacements that are affordable and get the job done for a stock truck. They are designed to match the original part's length and fittings. Reviews from owners of similar classic trucks are generally positive, but be aware that some "universal" cables can be too long or short, so verifying the length is a good idea. For models from 1987-1989 with cruise control, you may have a two-piece cable system, so be sure to order the correct part for your setup.
Premium / Custom-Fit Brands (Lokar)
Lokar offers high-end, "cut-to-fit" speedometer cables. These are a great option for modified trucks or for owners who want a more durable, premium part. They often feature stainless steel braided housings or heavy-duty black housings with high-quality aluminum fittings. You will pay more for a Lokar cable, but it provides flexibility for custom routing and is built to last.
| Part Tier | Price Range | Best For |
|---|---|---|
| Standard (ATP, Pioneer) | $16.75 - $45.00 | Stock W100s needing a direct replacement. |
| Premium (Lokar) | $120.00 - $150.74 | Modified trucks, restorations, or a heavy-duty upgrade. |
Frequently Asked Questions (FAQ)
How do I know if the cable is bad, and not the speedometer itself?
A good way to test is to disconnect the cable from the transmission or transfer case. Attach the inner cable core to a variable-speed drill. Have a helper watch the speedometer gauge while you slowly spin the drill. If the speedometer needle moves smoothly, the gauge is likely good and the cable is the problem. If it doesn't move or jumps erratically, the issue may be in the speedometer head itself.
My truck has cruise control. Does that matter?
Yes, especially for later models (approx. 1987-1989). Trucks with cruise control often have a two-piece cable setup. A short cable runs from the transmission to the cruise control module (servo), and a second cable runs from the module to the speedometer. Non-cruise trucks use a single, longer cable. You must order the correct cable for your truck's configuration.
I replaced the cable and it still doesn't work. Now what?
Check the speedometer drive gear. This is a small plastic gear located in the transmission or transfer case that the cable connects to. These gears can become brittle with age and strip or even melt, especially if the old cable seized. If the teeth on the gear are worn down, it won't be able to spin the new cable. This gear must be replaced separately.
What is the most common mistake when ordering?
Not confirming the length and connection types. W100s were built for 15 years with different transmission, transfer case, and cruise control options. Some cables clip on at the speedometer, while others screw on. The transmission end also has different nut sizes. Always measure your old cable and check the connection types at both ends before ordering a new one.

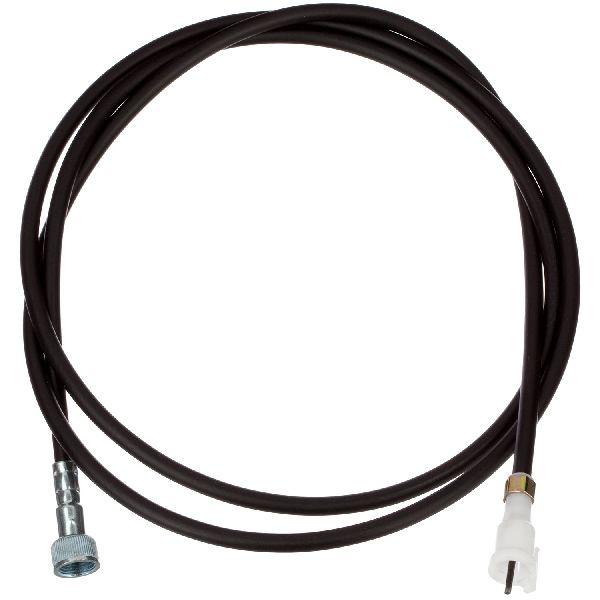

Technical Specifications
OEM Part Numbers: 3428976
Connection types vary. Common transmission-end fittings are 7/8" nuts, while speedometer-end fittings can be clip-on or a 5/8-18 female thread. Cable lengths typically range from 63 to 100 inches. Measuring the original cable is the most reliable method to ensure correct fitment.
