Transmission Filter Kit Guide for the 1976-1981 Cadillac Eldorado
Keep your classic Eldorado's automatic transmission shifting smoothly with the right filter kit.
- Verify your transmission type: 1976-1978 models typically have the TH425, while 1979-1981 models use the THM325. You must buy the correct kit.
- Pay attention to gasket quality. Many aftermarket kits come with basic cork gaskets that can leak. Consider a kit with a rubber or composite gasket, or buy one separately.
- There are no specific recalls or TSBs for the filter kit, but regular changes are essential preventative maintenance for this classic vehicle.
- The transmission pan lacks a drain plug, so be prepared for a messy fluid drain when removing the pan bolts.
Choosing the Right Transmission Filter for Your Eldorado
When servicing the automatic transmission on your 1976-1981 Cadillac Eldorado, replacing the filter is a key step. It's important to know that different transmissions were used during this period, so you must get the correct kit for your year.
Generation & Transmission Differences
| Model Years | Transmission Type | Notes |
|---|---|---|
| 1976-1978 | Turbo-Hydramatic 425 (TH425) | This is a heavy-duty 3-speed automatic. Filter kits for this transmission are specific. |
| 1979-1981 | Turbo-Hydramatic 325 (THM325) | This is a different 3-speed automatic. Ensure your kit is listed for these years. |
Pro Tip: Always double-check your vehicle's specific transmission before ordering. While these are the standard transmissions for these years, variations can exist.
Aftermarket Brand Options: ATP, Pioneer, and Wix
For this generation of Eldorado, original equipment manufacturer (OEM) parts from GM are scarce. The market primarily consists of new aftermarket brands. Here’s an honest look at the available options.

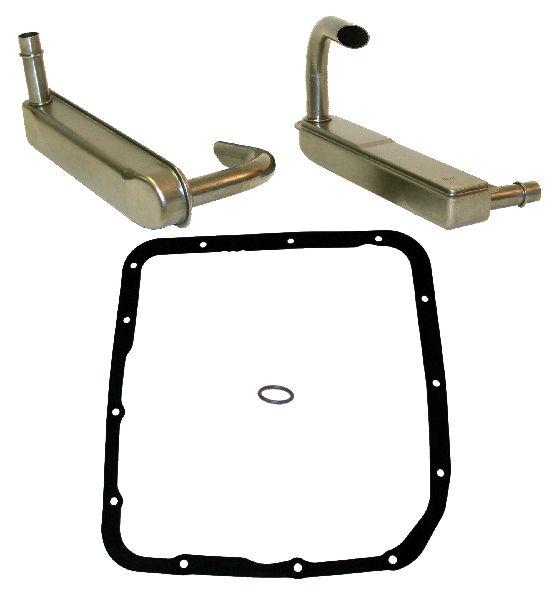

- Wix: Generally, Wix is a well-respected brand in the filter industry, known for quality construction. Many mechanics trust Wix for consistent fit and performance, making it a solid choice if available for your specific year.

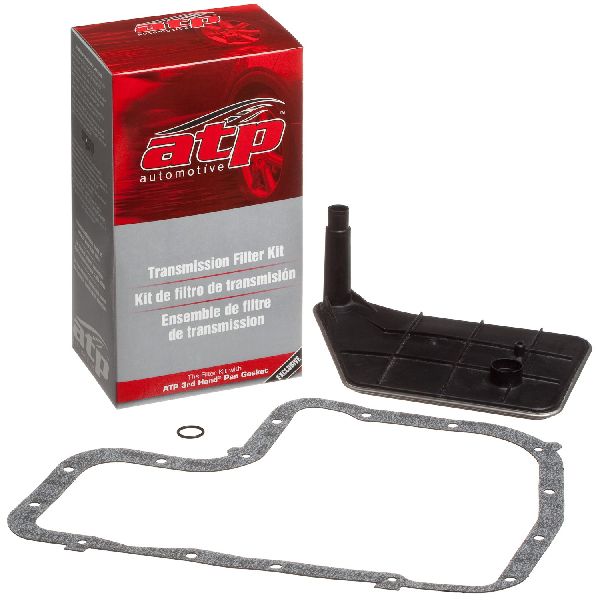

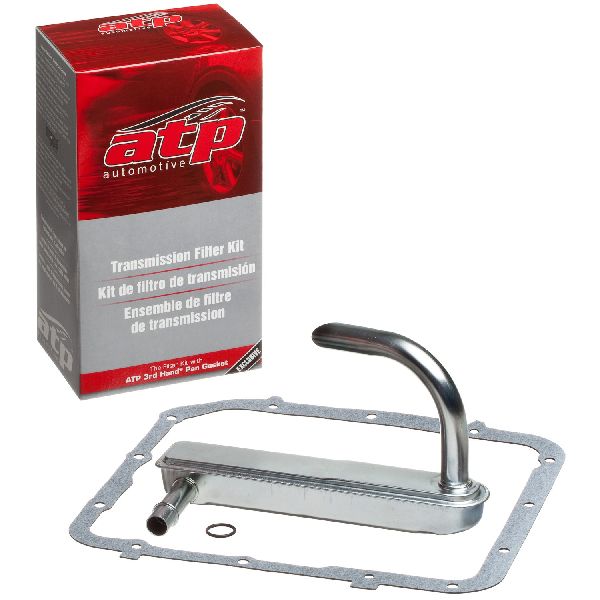

- ATP (Automatic Transmission Parts): ATP has been around since 1955 and specializes in transmission components. They are known for filter kits that match OE specifications for filtration and fluid flow. Some of their kits include a “3rd Hand” pan gasket, which has small holes to hold the pan bolts, making installation easier. This can be a helpful feature, especially for a DIY mechanic.
- Pioneer Cable: Pioneer is another established aftermarket brand offering replacement parts. Their kits are designed to be reliable replacements for the original components and are often a budget-friendly option.
OEM vs. Aftermarket Quality: For a vehicle of this age, a high-quality aftermarket part from a reputable brand like Wix or ATP is often equivalent to or exceeds the original specifications. The most critical factor is often the quality of the pan gasket included in the kit. Poor quality gaskets, often made of cork, are more prone to leaking. Some users prefer to source a high-quality rubber or composite gasket separately if the one in the kit seems flimsy.
Common Ordering Mistake: The Wrong Gasket
The biggest issue owners face is getting a kit with a low-quality or incorrect gasket, leading to leaks after installation. Pay close attention to the gasket material. Fiber or rubber gaskets are generally preferred over basic cork gaskets for better sealing.
Known Issues, Recalls, and TSBs
There are no active recalls or specific Technical Service Bulletins (TSBs) from the NHTSA for the transmission filter kit on the 1976-1981 Cadillac Eldorado. Searches for transmission-related recalls for this specific period did not yield results pertaining to the filter or pan. However, a single 1976 Eldorado was involved in a fatality where the transmission slipped from park, causing the vehicle to roll. This appears to be an isolated report and not related to the filter itself.
Installation Tips
Replacing the transmission filter is a messy but manageable job for a DIYer.
- The transmission pan on these models does not have a drain plug, so be prepared for fluid to spill when you loosen the pan bolts.
- After dropping the pan, you will likely find a layer of dark soot or fine metal particles at the bottom; this is normal wear and should be cleaned out thoroughly.
- Ensure both the transmission housing and the pan mating surfaces are perfectly clean and dry before installing the new gasket to prevent leaks.
- Do not overtighten the pan bolts, as this can deform the pan and crush the gasket, causing a leak. Tighten bolts in a crisscross pattern to the recommended torque specification.
Frequently Asked Questions (FAQ)
How often should I change my Eldorado's transmission filter?
For classic cars, a good rule of thumb is to change the transmission fluid and filter every 30,000 miles or every two years, whichever comes first. This helps prevent the buildup of contaminants that can harm the transmission.
Can I just change the fluid and not the filter?
It is highly recommended to change the filter whenever you change the fluid. The old filter is full of the contaminants you're trying to remove from the system. Leaving it in place means new fluid will immediately start circulating through an old, dirty filter.
What type of transmission fluid should I use?
Always consult your owner's manual or a reliable service guide for the correct automatic transmission fluid (ATF) specification for your year. Using the wrong type of fluid can cause shifting problems and damage the transmission.
My pan is leaking after I replaced the gasket. What did I do wrong?
Common causes for post-service leaks include: an incompletely cleaned pan or transmission surface, a warped or damaged pan, overtightening the pan bolts, or using a low-quality gasket. Ensure the surfaces are spotless and the pan is flat before re-installing.
Technical Specifications
OEM Part Numbers: 8632967
Kit typically includes one transmission filter and one pan gasket. Filter media is often felt or paper. Gasket material varies by brand (cork, rubber, or fiber composite).
