A Guide to Universal Joint Replacement for the 1976-1982 Volvo 264
Address driveshaft vibrations and clunking noises by understanding and choosing the right aftermarket U-joints for your classic Volvo.
- A vibration that changes with vehicle speed, not engine speed, is a primary symptom of a failing U-joint.
- It is highly recommended to replace the driveshaft's center support bearing at the same time as the U-joints.
- For best results and to prevent future vibrations, have the entire driveshaft assembly balanced by a professional shop after replacing the joints.
- Premium brands like Dana Spicer, SKF, and Moog offer the best durability, while GMB is a reliable standard option.
Symptoms of a Failing Universal Joint
When a U-joint starts to fail, it can cause a range of noticeable symptoms. The needle bearings inside the U-joint caps can wear out or seize from a lack of lubrication, leading to play or binding in the joint. Ignoring these signs can lead to more significant damage if the joint fails completely.
- Vibrations: A common symptom is a vibration that can be felt throughout the car, which often gets worse with speed. This is caused by the driveshaft becoming unbalanced from the worn joint.
- Clunking Noises: You might hear a distinct "clunk" or ringing sound when you shift into drive or reverse. This sound is the slack in the worn U-joint being taken up as the driveshaft begins to turn.
- Squeaking or Chirping: A rhythmic squeaking noise that is noticeable at low speeds (under 10 mph) often points to a dry or failing U-joint that needs lubrication.
A Note on the Center Support Bearing
The Volvo 264 uses a two-piece driveshaft that is supported in the middle by a center support bearing held in a rubber mount. The symptoms of a failing center support bearing—especially vibrations—can be very similar to a bad U-joint. The rubber support can degrade over time, allowing the driveshaft to wobble. It is highly recommended to inspect the center support bearing and replace it at the same time as the U-joints.
🎬 See how to replace a driveshaft center support bearing.Choosing the Right Aftermarket U-Joint
For a vintage vehicle like the 1976-1982 Volvo 264, original equipment (OEM) parts are often no longer available. The aftermarket provides a range of options that vary in quality and price. Your choice depends on your budget and how you use your car.
Brand Quality Tiers
Based on owner feedback and general brand reputation in the Volvo community, aftermarket U-joints can be grouped into the following tiers:
- Premium Brands ($35 - $55): Dana Spicer, SKF, and Moog are widely regarded as high-quality choices. Dana Spicer is often considered an OE supplier for many vehicles and is known for durability. SKF and Moog are also trusted names that produce reliable, long-lasting parts engineered to meet or exceed original specifications. These are the best choice for owners who prioritize longevity and smooth performance.
- Standard Replacement ($20 - $35): GMB is a well-known aftermarket brand that offers a good balance of quality and value. While some users have mixed opinions, it is generally seen as a reliable option for a daily driver and a significant step up from economy parts.
- Economy Brands (Under $20): URO Parts and other private-label brands fall into this category. While the low price is appealing, forum discussions often indicate a trade-off in terms of material quality and lifespan. These parts may be suitable for a temporary fix or a very tight budget, but may not offer the same durability as premium brands.
Greasable vs. Sealed U-Joints
Many aftermarket U-joints are "greasable," meaning they have a zerk fitting that allows you to add fresh grease periodically. This can extend their life if maintained properly. Others are "sealed" or "non-greasable," much like the original parts. Sealed joints from premium brands often use higher-quality seals and are preferred by some for being maintenance-free. If you choose a greasable joint, make sure the grease fitting is installed where it won't hit the driveshaft yoke as it rotates.
Estimated Costs for Universal Joint Replacement
| Item | Estimated Cost |
|---|---|
| Aftermarket Universal Joint (Single) | $15.37 - $55.46 |
| Shop Labor (2-3 U-Joints) | $200 - $450 |
| Total Estimated Cost | $245 - $615 |
Cost estimates are for reference only and may vary based on your location, the specific parts chosen, and the rates of your repair shop. Your Volvo 264 may have two or three U-joints.
Frequently Asked Questions (FAQ)
How many U-joints does my 1976-1982 Volvo 264 have?
Most Volvo 264 models have a two-piece driveshaft with three universal joints: one at the transmission, one near the center support bearing, and one at the rear differential. However, some configurations may vary, so it's always best to inspect your specific vehicle.

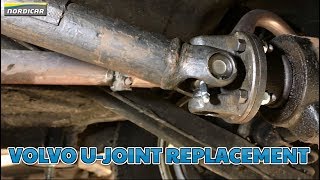

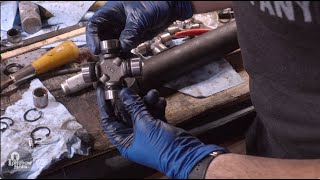

Is replacing U-joints a DIY job? 🎬 Watch a step-by-step guide on replacing Volvo universal joints.
This job is possible for an experienced DIY mechanic, but it can be challenging. It requires safely raising the vehicle, removing the driveshaft, and using a bench vise, sockets, and a hammer or a hydraulic press 🎬 Learn how to replace U-joints without using any special tools. to remove the old joints and install the new ones. If not done correctly, you can damage the driveshaft.
Should I have the driveshaft balanced after replacing the U-joints?
Yes, it is highly recommended. Before disassembly, you should always mark the two halves of the driveshaft to ensure they are reassembled in the same orientation. Even so, replacing the joints can affect the overall balance. Having a driveshaft shop balance the complete assembly after the repair will ensure the smoothest operation and prevent vibrations.
What are "staked-in" U-joints? Does my Volvo have them?
Staked-in U-joints are held in place by indentations in the driveshaft yoke rather than by snap rings. The Volvo 264 uses serviceable U-joints with internal snap rings (circlips), which makes them replaceable.
Helpful Videos
Technical Specifications
The 1976-1982 Volvo 264 typically uses a two-piece driveshaft with three serviceable universal joints secured by internal snap rings (circlips). It also features a center support bearing.
