Engine Timing Cover Guide for 1976-1986 Chevrolet Blazer
Stop oil and coolant leaks by understanding the right timing cover for your classic K5 Blazer's engine.
- The primary reasons to replace the timing cover are oil or coolant leaks.
- It is highly recommended to replace the timing chain, gears, and water pump at the same time.
- Aftermarket covers come in standard steel or cosmetic chrome/aluminum; choose based on your budget and desired engine appearance.
- Properly cleaning all surfaces and using new gaskets with a quality sealant is critical to prevent future leaks.
Symptoms of a Failing Timing Cover
A bad timing cover or its gaskets will give you clear signs of trouble. The most common symptom is leaking fluids. Since the cover seals in engine oil and is where the water pump mounts, both oil and coolant leaks are possible.
- Oil Leaks: You may see engine oil dripping from the front of the engine, specifically around the edges of the cover or from the front crankshaft seal. Over time, the gaskets can dry out, crack, and shrink, allowing oil to escape. A significant leak can lead to low oil levels, which is a serious risk to your engine's health.
- Coolant Leaks: The water pump bolts directly to the timing cover on the Small Block Chevy engine. If the water pump gaskets fail, or if the cover itself corrodes due to an old leak, you will see coolant dripping down the front of the engine. Sometimes a leak from the water pump's weep hole can be mistaken for a timing cover leak.
- Knocking or Tapping Noises: If the bolts holding the cover have loosened, the cover itself can rattle against the engine block, creating a knocking sound. This is a serious issue that should be addressed immediately.
Choosing the Right Aftermarket Timing Cover
For the 1976-1986 Blazer, the original timing covers were typically basic stamped steel. Aftermarket options offer a variety of materials and finishes, from standard replacements to cosmetic upgrades.
Aftermarket Brand Tiers
| Tier | Brands | Description & Quality |
|---|---|---|
| Standard Replacement | ATP, Pioneer Cable | These brands focus on providing parts that fit and function like the original. They are typically made from stamped steel and are a cost-effective solution for a daily driver or a stock restoration where originality isn't paramount. Quality is generally acceptable for standard use. |

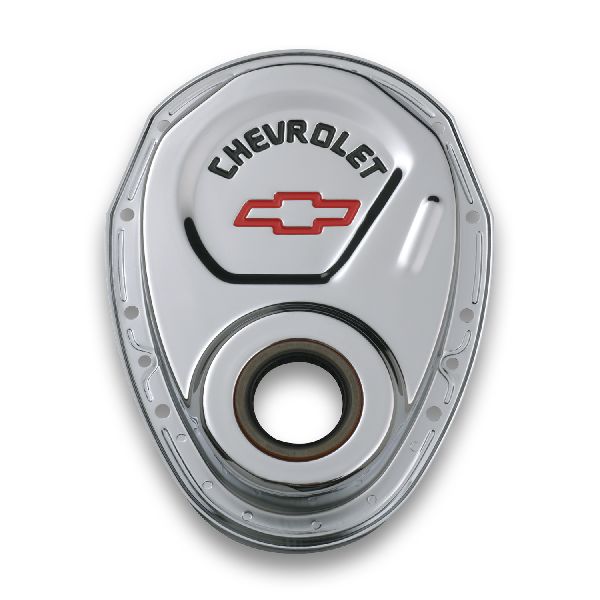

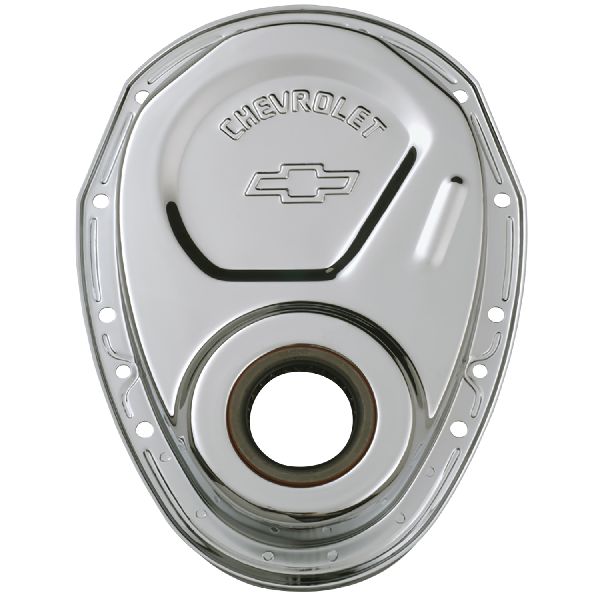

| Performance & Dress-Up | Mr Gasket, Proform, Spectre, Trans-dapt | These brands offer covers in materials like polished aluminum or chrome-plated steel. They are designed to improve the engine's appearance while providing good function. Some, like Trans-dapt, even offer two-piece designs that allow for easier access to the timing chain for adjustments without removing the oil pan. Be aware that chrome-plated covers can sometimes be more prone to leaking if the sealing surfaces aren't properly prepped before installation. |
Pro Tip: When installing a new timing cover, especially a chrome one, many mechanics recommend lightly scuffing the gasket mating surfaces to help the sealant adhere better. Always use a thin, even layer of a quality RTV silicone gasket maker on both sides of the gasket to ensure a leak-proof seal.
Known Issues & Recalls
Searches for official recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the engine timing cover on 1976-1986 Chevrolet Blazers did not reveal any specific campaigns. Most issues with these components are related to age, wear, and gasket failure rather than a manufacturing defect. Leaks are a common problem on older Small Block Chevy engines, but are typically resolved with proper replacement procedures.
Frequently Asked Questions (FAQ)
Do I have to remove the oil pan to replace the timing cover?
Technically, yes. The timing cover fits into a lip on the oil pan. However, many experienced mechanics have methods to replace the cover by only loosening the front oil pan bolts and carefully prying the pan down just enough to slip the cover in. Some aftermarket two-piece covers are designed specifically to avoid this issue.
Should I replace my timing chain at the same time?
Absolutely. You will have direct access to the timing chain and gears once the cover is off. Given the age of these vehicles, it is highly recommended to replace the timing chain and gears as a set while you're in there. A stretched timing chain can affect engine performance and timing.
What's the difference between a steel and aluminum timing cover?
Stamped steel covers are what came on most of these trucks from the factory. They are strong and inexpensive. Aftermarket aluminum covers are often thicker, which can add rigidity, and they are popular for their polished or finished appearance in custom engine bays. Both materials work well when installed correctly.
My new cover came with a seal installed. Is it ready to go?
Yes, most aftermarket covers come with the front crankshaft seal pre-installed, which is a convenient time-saver. However, it's always a good idea to inspect the seal to ensure it wasn't damaged in shipping. Also, apply a light film of clean engine oil to the inner lip of the seal before sliding the harmonic balancer through it to prevent damage.
Technical Specifications
OEM Part Numbers: 12554557 93445880
Fits Small Block Chevrolet V8 engines (e.g., 305, 350 c.i.d.) used in 1976-1986 Blazers. Material is typically stamped steel or cast aluminum. Some covers are designed for specific harmonic balancer diameters (e.g., 8-inch).
