Ford Country Squire Spark Plug Wire Set Guide: 1976-1986
Choosing the right spark plug wires is key to keeping your classic Country Squire running smoothly.
- Symptoms of failure include rough idle, misfires, and poor acceleration.
- High-quality aftermarket brands like MSD and Taylor Cable are excellent replacements for unavailable OEM parts.
- Replacement is a simple DIY task; just change one wire at a time to maintain the correct firing order.
- Ensure the new wire boots 'click' firmly onto the spark plugs and distributor cap for a solid connection.
Is Your Engine Trying to Tell You Something?
Worn-out spark plug wires are a common issue on older vehicles like the Country Squire. The constant heat from the engine and years of use cause the wire's insulation to break down. When this happens, the electrical energy can leak out or 'arc' to the engine block instead of reaching the spark plug. This can lead to a range of noticeable problems.
Symptoms of Failing Spark Plug Wires
- Rough Idle: The engine may shake or vibrate more than usual when the car is stopped.
- Engine Misfires: You might feel a stutter or hesitation from the engine, especially when accelerating.
- Loss of Power: The wagon may feel sluggish and slow to respond when you press the gas pedal.
- Worse Fuel Economy: When cylinders don't fire correctly, unburnt fuel is wasted, and you'll notice more frequent trips to the gas station.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over and start.
- Visible Damage: A visual check might reveal cracks, burn marks, or melted spots on the wire insulation or boots.
Pro Tip: The Dark Test
A simple way to check for arcing is to start the engine in a dark garage and look at the wires. If you see tiny blue sparks jumping from the wires to any metal engine parts, the insulation has failed and the wires need to be replaced. Misting the wires with a spray bottle of water can make these sparks easier to see.
Choosing the Right Aftermarket Wires
For a 1976-1986 Country Squire, finding original Ford "OEM" wires is nearly impossible. The good news is that many aftermarket brands offer high-quality sets that often exceed the original specifications. The key is choosing a brand known for durability and performance.
| Tier | Brands | Quality & Performance Assessment |
|---|---|---|

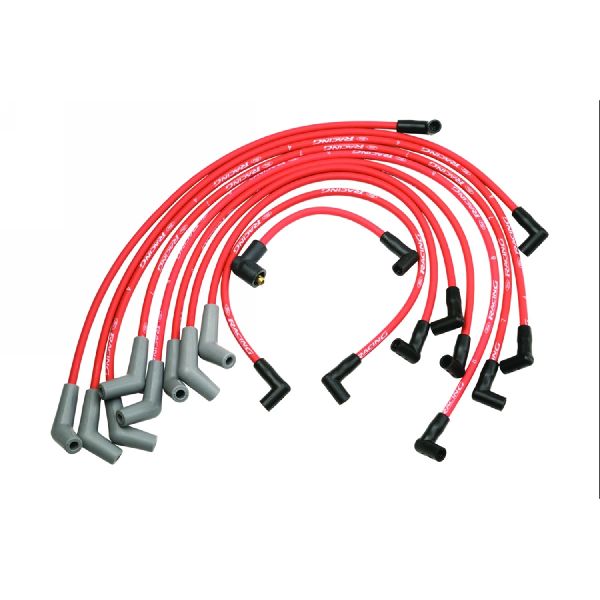

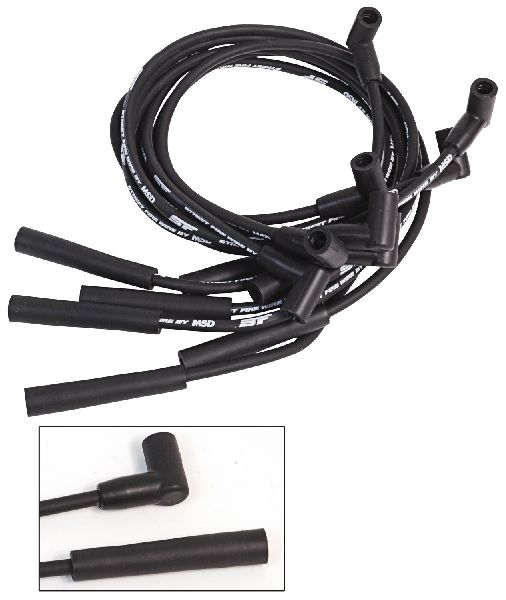

| High-Performance | MSD, Ford Performance | MSD is a top choice in the performance world, known for its low-resistance "Super Conductor" wires that deliver a strong spark. Ford Performance wires are also a high-quality option, engineered specifically for Ford engines. These are excellent choices for owners looking for maximum reliability and performance. |

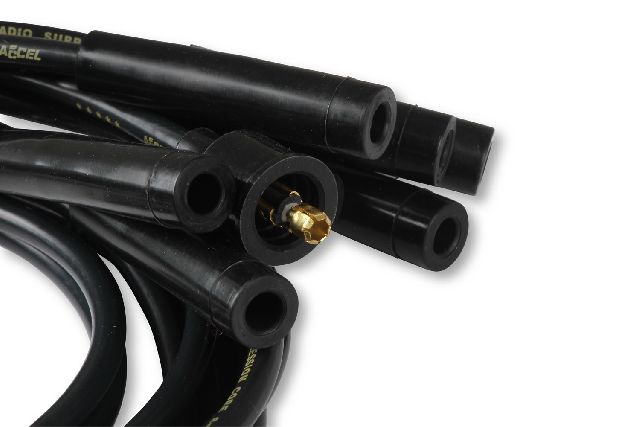

| Quality Aftermarket | Taylor Cable, Accel | Taylor Cable is highly respected and often compared directly to MSD for quality and durability. They are known for excellent heat resistance and tight-fitting boots. Accel is another popular brand, with some users recommending their ceramic boot wires for engines with headers that produce extra heat. However, some forum discussions mention occasional premature failures with standard Accel sets. |
A Note on OEM Parts
While you might find New Old Stock (NOS) Motorcraft wires, be cautious. Rubber and silicone materials can degrade over decades, even when sitting on a shelf. A new, high-quality aftermarket set is often a more reliable and cost-effective choice for these classic wagons.
Frequently Asked Questions (FAQ)
Do I need special tools to replace my spark plug wires?
No special tools are required. The most important technique is to replace the wires one at a time. This prevents mixing up the firing order, which would cause the engine to run poorly or not at all. Make sure you feel or hear a 'click' when you push the new wire's boot onto the spark plug and the distributor cap terminal.
What does the wire diameter (e.g., 8mm, 8.5mm) mean?
The diameter refers to the thickness of the wire, including its insulation. A thicker wire generally offers better insulation to prevent voltage leaks and can provide more protection against heat and abrasion. For a stock or mildly modified Country Squire V8, a quality 8mm or 8.5mm wire from a reputable brand is more than sufficient.
Should I choose universal or custom-fit wires?
Custom-fit wire sets are cut to the correct length for your specific engine (like the 302 or 351 V8) and have the correct boots pre-installed. They are the easiest option. Universal sets require you to cut the wires to length and attach one set of terminals, which offers more flexibility for custom engine setups but requires more work.
Were there any recalls for spark plug wires on the 1976-1986 Country Squire?
No, there have been no recalls or specific Technical Service Bulletins (TSBs) issued by Ford or the NHTSA for spark plug wires on this vehicle. This is a standard maintenance part that wears out over time.
Technical Specifications
Engine-specific fitment for Ford V8 (e.g., 302, 351W). Silicone jacket for heat resistance. Spiral core for radio frequency interference (RFI) suppression.
