Jeep CJ7 Horn Not Working? Troubleshooting and Replacement (1976-1986)
Diagnose your silent horn correctly before you buy the wrong part for your CJ7.
- Always test the horn, ground, and relay before buying a new horn unit; the problem is often elsewhere in the circuit.
- A bad ground at the fender is a very common cause of horn failure on a CJ7.
- For intermittent issues, the problem is almost always the horn button contacts inside the steering column.
- Aftermarket brands like Crown and Omix-Ada are the standard, readily available replacements for this model.
Is Your Jeep CJ7 Horn Silent?
A non-working horn on a Jeep CJ7 is a common problem, but the horn unit itself is often not the part that has failed. Due to the age and simplicity of these Jeeps, the issue is usually a bad connection, a faulty relay, or a worn-out part in the steering column. Before spending money on a new horn, a few simple tests can help you find the real source of the problem.
🎬 Watch: A complete guide to troubleshooting CJ horn assembly issues.Troubleshooting Steps First!
Don't buy a new horn until you test the old one. The most common failures are bad grounds, a bad relay, or the horn button contacts—not the horn itself.
- Test the Horn Directly: Disconnect the wire from your horn. Use a jumper wire to connect the horn's terminal directly to the positive (+) post of your battery. Use another jumper to connect the horn's metal mounting bracket to the negative (-) post. If the horn sounds, the problem is elsewhere in the circuit.
- Check the Ground: CJ7s are known for grounding issues caused by corrosion between body panels. Ensure the horn's mounting point on the fender is clean and free of rust and paint. You can test for a bad ground by running a temporary wire from the horn's mounting bolt directly to the battery's negative terminal, then trying the horn button again.
- Check the Relay: When you press the horn button, you should hear a 'click' from the relay under the dash near the steering column. Even if it clicks, the relay can still be bad. Try swapping it with a known good relay if possible.
- Inspect Steering Wheel Contacts: If the horn works intermittently or only when you press the button a certain way, the problem is likely the spring-loaded contact pin or plate inside the steering wheel hub.

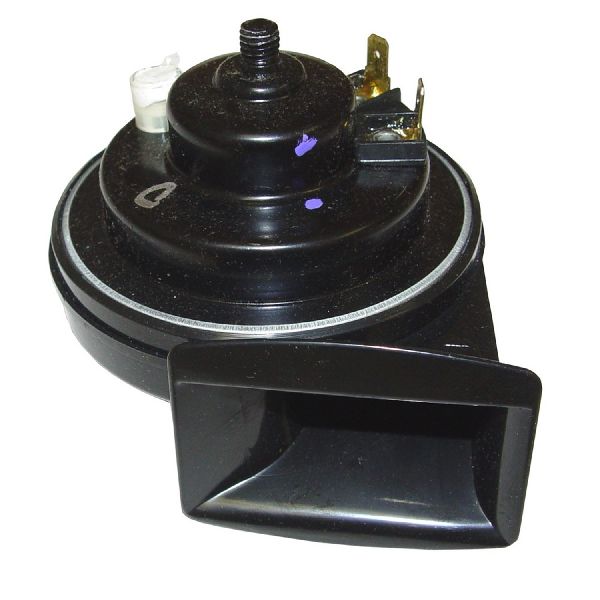

Choosing the Right Aftermarket Horn
If you've confirmed the horn unit is dead, several aftermarket options are available. For a vehicle of this era, true OEM Mopar parts are generally discontinued, making aftermarket the primary choice.
- OEM-Equivalent Brands (Crown, Omix-Ada): Crown Automotive and Omix-Ada are specialist brands for Jeep parts. They aim to produce parts that fit and function like the originals. While some owners have noted fitment issues on more complex parts, they are generally considered a reliable and standard choice for a simple component like a horn. Some users prefer Crown for better fitment, while others see both as comparable.
- General Aftermarket Brands (ACDelco, Standard Ignition): These are large, reputable manufacturers of automotive parts for many different vehicles. A horn from one of these brands is a solid choice, known for consistent quality control.
- Value Brands (Replacement): These are often house brands that offer a functional part at a lower cost. They are a good option for a budget-conscious repair where brand name is not a priority.
| Part Type | Our Price Range | Notes |
|---|---|---|
| New Aftermarket Horn | $36.29 - $61.88 | Direct replacement high or low pitch horns. Brands include Crown, Omix-Ada, and Standard Ignition. |
| Horn Contact/Relay Kit | $10 - $30 | Often the real source of the problem. Includes pins, springs, and relays for the steering column and dash. |
Pro Tip: High and Low Pitch
Many Jeeps originally came with two horns: one high-pitch and one low-pitch, which sound together. If you are only replacing one, make sure you match the pitch (high or low) to the remaining working horn, or simply replace both for a balanced sound.
🎬 Watch: How to install a loud aftermarket horn in your CJ7.Frequently Asked Questions
Why did my CJ7 horn suddenly stop working?
The most common reasons are a failed horn relay, a poor ground connection at the fender, or a broken wire/contact inside the steering column. The horn unit itself is less likely to fail suddenly. Testing the horn directly with power from the battery is the first step to confirm.
Is it the horn or something else?
If you press the horn button and hear a 'click' from under the dash, power is reaching the relay. This suggests the problem is either the relay itself, the wiring from the relay to the horn, the horn's ground, or the horn unit. If you hear no click, the problem is likely in the steering column button assembly or the wiring leading to the relay.
Where is the horn relay on a Jeep CJ7?
The horn relay is typically located under the dashboard, near the steering column. It may be attached to a bracket or simply hanging by its wires among other components. On models with air conditioning, it can be more difficult to see and reach.
How do I test the horn button in the steering wheel?
After removing the horn button cover, you can often trigger the horn by using a screwdriver to bridge the connection between the center steering shaft nut (ground) and the contact pin or plate for the horn. If this makes the horn sound, your problem is in the horn button mechanism itself.

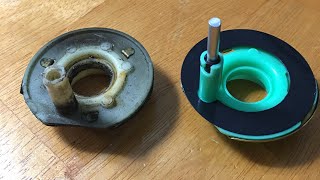

🎬 See this quick video on fixing horn buttons on the cheap.Helpful Videos
Technical Specifications
OEM Part Numbers: J4487711
12-Volt System, High or Low Pitch Tones
