Jeep CJ7 Ignition Lock Cylinder Guide (1976-1986)
Is your CJ7 key stuck, loose, or not working? Here’s what you need to know about replacing your ignition lock cylinder.
- Failure is due to age and wear; no recalls exist for the 1976-1986 CJ7.
- Common symptoms include a stuck key, a loose key that falls out, or the ability to start the Jeep without a key.
- Replacement is a DIY-friendly job but requires a steering wheel puller and lock plate compressor.
- Verify the correct part for your year, as there is a split between 1976-1984 and 1985-1986 models.
Is Your Ignition Lock Cylinder Failing?
The ignition lock cylinder in a 1976-1986 Jeep CJ7 is a purely mechanical component that sees use every time you drive. Over decades of use, the internal pins and tumblers wear down. This wear can lead to several frustrating and potentially serious issues. You might notice the key is hard to insert or turn, or it feels loose and sloppy. In some cases, the key can even be removed while the engine is running, or fall out on its own. A completely worn-out cylinder might even allow you to start the Jeep with no key at all, which is a major security risk. It's important not to confuse the lock cylinder with the electronic ignition switch, which is a separate part located further down the steering column that the cylinder actuates.
🎬 See how a damaged ignition switch differs from the lock cylinder.Common Symptoms of a Bad CJ7 Ignition Lock Cylinder
- Key is difficult to turn: You have to jiggle or force the key to get it to turn to the 'On' or 'Start' position.
- Key gets stuck: The key won't turn back to the 'Off' position or can't be removed from the cylinder.
- Loose or worn key fit: The key feels sloppy in the lock, and you can pull it out in positions other than 'Off'.
- Engine starts without a key: A severely worn cylinder may turn without a key, allowing anyone to start your Jeep. 🎬 Watch a demonstration of cylinders that turn without a key.
- Steering wheel won't unlock: The cylinder fails to disengage the steering lock mechanism.
No Recalls for the 1976-1986 Jeep CJ7
While there have been widely publicized ignition switch recalls for newer Jeep models, extensive searches of the NHTSA database show no specific recalls or Technical Service Bulletins (TSBs) for the ignition lock cylinder on the 1976-1986 Jeep CJ7. The issues seen in this classic Jeep are typically due to normal age and wear, not a manufacturing defect subject to a recall.
Choosing the Right Aftermarket Ignition Lock Cylinder
Since new OEM parts for a CJ7 are scarce, the aftermarket is your primary source. Fortunately, several reputable brands offer quality replacements. There are slight differences in parts between model years, so always verify fitment for your specific Jeep.
Brand Tiers
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Motor Products emphasizes quality materials in their cylinders, such as solid brass tumblers and die-cast zinc cores, designed to meet or exceed original specifications. They are a reliable choice for durability.
- Dorman: Dorman is a well-known brand that produces direct-fit replacement parts. Their ignition lock cylinders are designed to match the function of the original and are a cost-effective and widely available solution.
- Replacement / Store Brands: These are typically the most budget-friendly options. While they will get the job done, the materials and manufacturing tolerances may not be as high as premium brands. For a weekend vehicle, they can be a good value, but for a daily driver, investing in a higher-tier brand might provide more long-term reliability.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dorman, Standard, etc.) | $26.96 - $56.39 |
| Shop Labor for Installation | $100 - $200 |
Pro Tip: Check Your Fitment!
There is a known split in part design. Most catalogs show one part for 1976-1984 models and a different part for 1985-1986 models. Double-check that you are ordering the correct cylinder for your year to avoid installation headaches.
Frequently Asked Questions
Can I replace the ignition lock cylinder myself?
Yes, this is a very feasible DIY project for someone with basic tools and mechanical ability. The process involves removing the steering wheel horn button, nut, and the steering wheel itself (a puller is required). Then, you'll need a lock plate compressor tool to access and remove the old cylinder. There are numerous video guides available online that walk through the process on these GM-style columns.

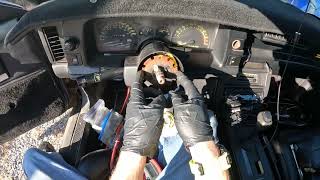

🎬 Watch this step-by-step guide to replacing the CJ7 ignition cylinder.Do I need special tools to replace the lock cylinder?
Yes. You will need a steering wheel puller and a steering wheel lock plate compressor tool. These can often be rented from auto parts stores if you don't want to purchase them.
Will the new lock cylinder work with my old keys?
No. A new aftermarket ignition lock cylinder will come with a new set of keys. You will now have a separate key for your ignition. Your original keys will still be needed for the doors if they are original.
My key is just a little sticky. Can I fix it without replacing the part?
You can try spraying a dry graphite lubricant into the keyhole. Sometimes this can free up sticky tumblers. However, if the cylinder is worn, this is only a temporary solution. Avoid using wet lubricants like WD-40, as they can attract dirt and gum up the lock over time.
Helpful Videos
Technical Specifications

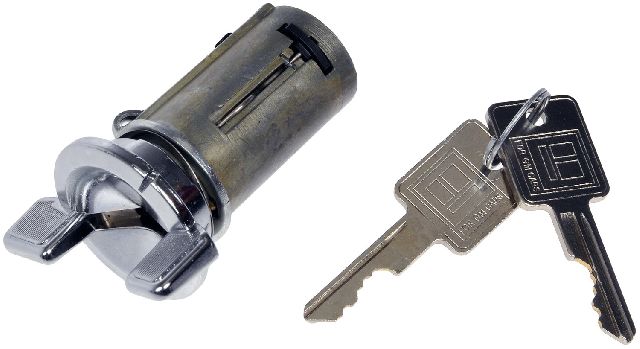

OEM Part Numbers: 8120081K 55026014
Mechanical, key-operated tumbler assembly located in the steering column. Actuates a rod connected to the ignition switch. Different parts for 1976-1984 and 1985-1986 models.
