Choosing the Right Spark Plug Wires for Your 1977-1981 Chevrolet Bel Air
Keep your classic Bel Air's V8 or inline-6 engine running strong by selecting the perfect spark plug wire set.
- For a stock vehicle, an ACDelco or NGK wire set provides excellent, reliable performance.
- Performance brands like Accel and Taylor are ideal for modified engines, especially those with headers that produce extra heat.
- Always replace wires one at a time to maintain the correct firing order.
- Replacing the spark plugs, distributor cap, and rotor at the same time is a best practice for a complete ignition tune-up.
Is Your Bel Air's Ignition System Showing Its Age?
The spark plug wires on a classic car like the 1977-1981 Bel Air are subjected to intense heat and vibration. Over time, the insulation can crack, and the internal conductors can break down, causing a range of noticeable problems. If you're experiencing a rough idle, poor acceleration, or the engine just doesn't feel as powerful as it used to, old spark plug wires are a likely culprit.
Common Symptoms of Failing Spark Plug Wires
🎬 Watch this video to see these common symptoms in action.- Rough Idle: The engine shakes or sputters when stopped at a light.
- Engine Misfire: You may feel a jerking or stumbling during acceleration as a cylinder fails to fire properly.
- Hesitation: The car may stumble or lag when you press the gas pedal.
- Reduced Fuel Economy: Inefficient combustion from a weak spark wastes gasoline.
- Difficulty Starting: Wires that are failing may not deliver enough energy to start the engine easily, especially when cold or damp.
- Visible Damage: Check the wires for any cracks, burn marks, or melted spots, especially where they are close to hot exhaust manifolds.
Choosing the Right Aftermarket Spark Plug Wire Set
Since original GM-branded parts for this vehicle are long discontinued, the aftermarket is your go-to source. Fortunately, many aftermarket brands offer quality that meets or exceeds the original factory specifications. Your choice depends on your needs, from a stock restoration to a modified performance engine.
Brand Tiers for Your Bel Air
Tier 1: OEM-Quality & Premium Aftermarket

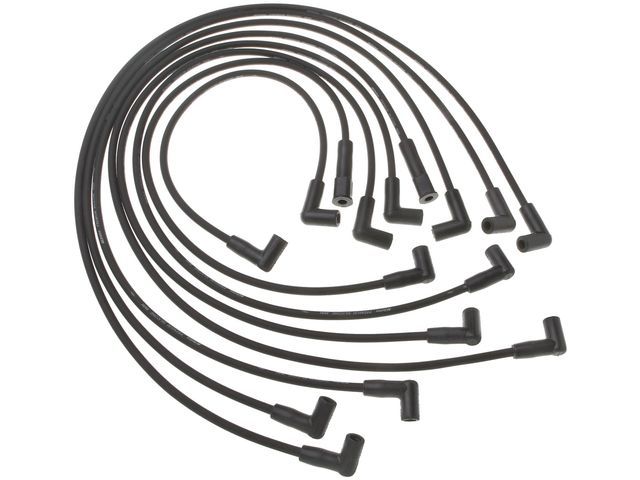

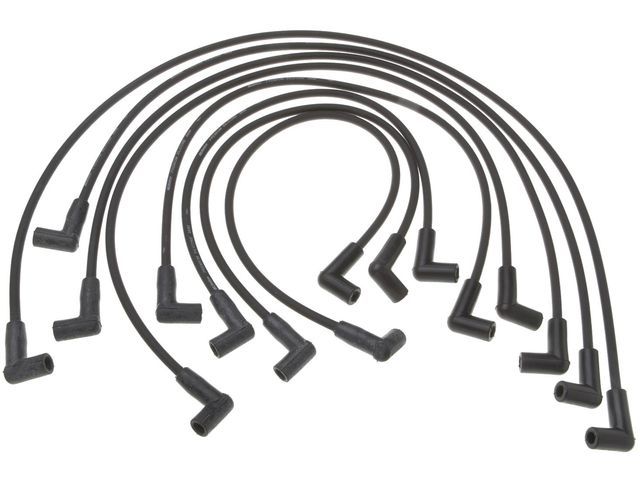

- ACDelco: As the original equipment manufacturer for General Motors, ACDelco wires are the benchmark for a factory-correct fit, appearance, and performance. They are an excellent choice for a stock restoration or reliable daily driving.

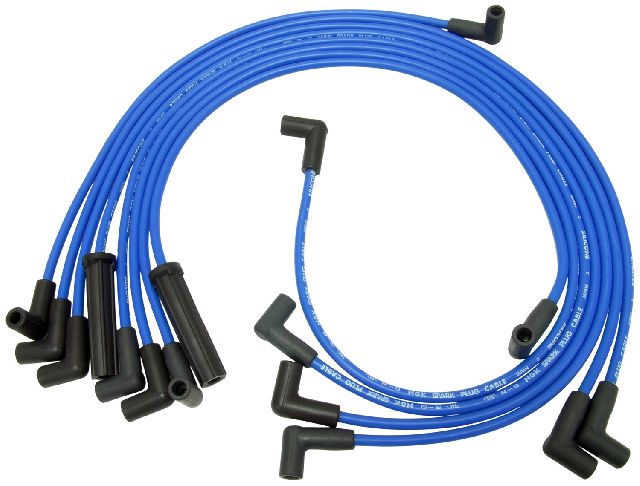

- NGK / Denso: These are top-tier Japanese brands known for exceptional quality and engineering. Their wire sets often feature superior materials and construction, making them a fantastic, reliable upgrade over stock.
Tier 2: Performance Aftermarket
- Accel / Taylor Cable: These brands are famous in the performance world. They typically feature thicker 8mm or 8.5mm wires with lower resistance, which can help deliver a stronger spark. They are often available in various colors and are a great choice if your Bel Air has engine modifications like headers or a high-performance ignition system. Ceramic boot options are available for engines with extreme exhaust heat.
Tier 3: Standard Aftermarket
- Standard (Standard Motor Products) / Walker Products: These are reputable brands that produce reliable, OE-spec replacement parts. They offer a great balance of quality and affordability for a standard repair, ensuring your engine runs smoothly without the higher cost of premium or performance brands.
Pro Tip: When replacing your spark plug wires, it is highly recommended to replace the spark plugs, distributor cap, and rotor at the same time. This completes the ignition tune-up and ensures all components are fresh and working together for optimal performance.
Cost of Replacing a Spark Plug Wire Set (1977-1981 Bel Air)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $40 - $250 |
| Shop Labor | $75 - $150 |
| Estimated Total (Professional) | $115 - $400 |
Frequently Asked Questions
Do I need special tools to replace spark plug wires?
Usually, no special tools are needed. A set of spark plug wire pullers can be helpful to avoid damaging the boots, but often you can remove them by hand. Applying a small amount of dielectric grease inside the new boots will make future removal much easier.
Should I replace wires one at a time?
Yes, this is the most important rule. To avoid mixing up the engine's firing order, remove and replace only one wire at a time. Match the length of the old wire to a new one from the box to ensure correct fitment.
What's the difference between 7mm and 8.5mm wires?
The measurement refers to the wire's diameter. Thicker wires, like 8mm or 8.5mm, generally have better insulation to prevent voltage leaks and lower electrical resistance. For a stock engine, standard 7mm or 8mm wires are perfectly fine. For modified engines with higher-output ignitions, a lower-resistance 8.5mm wire is a good upgrade.
Are there any recalls for my Bel Air's ignition wires?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically for the spark plug wires on the 1977-1981 Chevrolet Bel Air. Any issues would be related to age and normal wear.
Helpful Videos
Technical Specifications
Wire Diameter (typically 7mm, 8mm, or 8.5mm), Core Material (Spiral Core, Carbon Core), Boot Material (Silicone), Boot Angle (Straight, 45-degree, 90-degree, Multi-angle)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
