Universal Joint Replacement Guide for the 1977-1981 Chevrolet Caprice
Keep your classic Caprice running smoothly by fixing driveshaft vibrations and clunks.
- A clunking noise when shifting or a vibration at speed are the most common signs of a failing U-joint on your Caprice.
- High-quality aftermarket brands like Dana/Spicer and SKF are recommended over economy brands for this critical part.
- Original factory U-joints may be held in with injected plastic, requiring heat to remove them before installing a modern replacement with snap rings.
- It is best practice to replace both U-joints on the driveshaft at the same time.

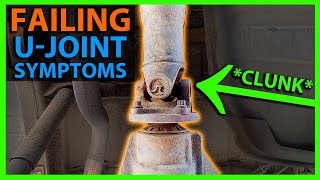

Symptoms of a Failing Universal Joint
A bad U-joint gives clear warning signs. Ignoring them can lead to a broken driveshaft, which is a serious and expensive problem. Listen and feel for these symptoms when you drive your Caprice.
Vibrations: You might feel a vibration throughout the car, especially at highway speeds. This is often one of the first symptoms and will get worse over time. It can feel like an unbalanced tire, but it's coming from the center of the car.
Squeaking Sounds: A constant, repeating squeak that changes with your speed (often heard at lower speeds) means the U-joint has lost its grease and is running dry. This is a cry for help before the part fails completely.
Rust Dust: If you look under your car at the driveshaft, you might see a reddish-brown dust around the U-joint area. This is a sign that the needle bearings inside are rusting and grinding themselves into dust.
Choosing the Right Aftermarket U-Joint

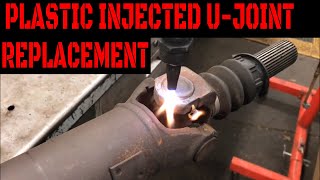

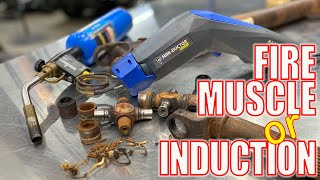

For a classic car like the 1977-1981 Caprice, finding original GM parts is nearly impossible. The good news is that aftermarket parts are readily available and often better than the originals. The factory U-joints were often held in with injected plastic that must be melted with a torch to be removed. 🎬 See the best ways to remove factory plastic injected joints Aftermarket replacements use more reliable and serviceable snap rings.

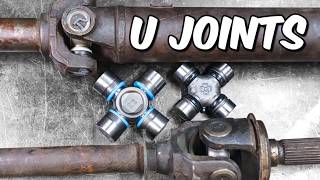

U-joints come in two main styles:
- Non-Greaseable (Sealed): These are installed and require no maintenance. Many mechanics prefer them because they are stronger, as the body isn't hollowed out for a grease channel. High-quality sealed joints often last a very long time.
- Greaseable: These have a small fitting (a zerk) that allows you to add fresh grease periodically. This can extend the life of the joint if you do the maintenance, but the grease channel can be a weak point.
Brand Tiers for Your Caprice
Not all brands are created equal. For a part this important, it's worth choosing a quality brand.
Top Tier / OEM Quality:
- Dana/Spicer: Widely considered the best in the business. Spicer was often the original supplier to GM and is known for strength and durability. If you want the best, choose Spicer.
- SKF: A well-respected brand that makes high-quality bearings and driveline parts. Their 'Brute Force' line is a strong, durable option.
Mid-Tier / Standard Replacement:
- Moog: A very popular aftermarket brand with a long history. They offer good quality parts that meet or exceed original specs. Some users have noted concerns about where they are made, but they remain a solid choice.
- ACDelco: This is GM's own parts brand. An ACDelco Professional U-joint is a reliable, factory-equivalent choice.
Economy Tier:
- GMB & Store Brands: These are budget-friendly options. While they will work, their lifespan and durability can be inconsistent. For a critical part like a U-joint, it is usually best to spend a little more for a mid-tier or top-tier brand.
Frequently Asked Questions
How many U-joints does my 1977-1981 Caprice have?
Most standard 1977-1981 Caprice models have a one-piece driveshaft with two universal joints: one connecting the driveshaft to the transmission and one connecting it to the rear axle. Some models, particularly wagons or those with specific transmissions, could have a two-piece driveshaft with a third U-joint and a center support bearing, though this is less common.
Can I replace a U-joint myself?

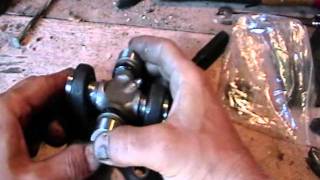

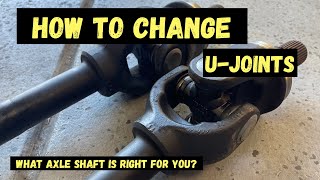

Yes, if you have the right tools and are comfortable working under your car. You will need to safely raise the vehicle, remove the driveshaft, and then use a bench vise and sockets or a special U-joint press to remove the old joint 🎬 Watch: How to replace U-joints using simple hand tools and install the new one. Remember, the original joints may be held in by injected plastic that requires a torch to melt and remove.
What is the difference between a greaseable and non-greaseable U-joint?
A greaseable U-joint has a zerk fitting that lets you add grease as part of regular maintenance. A non-greaseable (or sealed) U-joint is lubricated for life from the factory. Sealed joints are often considered stronger because the cross is solid, while greaseable joints can be flushed of contaminants, potentially extending their life with proper care.
Do I need to get my driveshaft balanced after replacing the U-joints?
It is always a good practice. While a simple U-joint swap shouldn't change the balance, any significant vibration after the repair means you should take the driveshaft to a driveline shop for professional balancing. This ensures smooth operation at highway speeds.
Helpful Videos
Technical Specifications
The 1977-1981 Caprice typically uses two universal joints on the rear driveshaft. The original joints were retained with injected plastic, while all aftermarket replacements use internal or external snap rings. The specific U-joint series (e.g., 1310, 3R) can vary based on the original engine and transmission combination, so measuring the old joint or using a VIN/catalog lookup is essential for ordering the correct part.
