Universal Joint Replacement Guide for the 1977-1981 Chevrolet Impala
Everything you need to know about choosing the right U-joints for your classic Impala's driveshaft.
- Your Impala uses GM 3R series U-joints, which use inside 'C' clips for retention on replacement parts.
- Original factory joints may be held in with injected plastic, requiring heat to remove for the first replacement.
- Dana Spicer and Moog are top-tier aftermarket brands; Spicer is often the OEM supplier.
- Consider high-quality non-greasable U-joints for a long-lasting, low-maintenance repair similar to the original factory parts.
Signs of a Failing Universal Joint
A worn-out U-joint will give you clear warning signs. Ignoring them can lead to more damage or even the driveshaft disconnecting from the car, which is extremely dangerous. Listen and feel for these common symptoms:
- "Clunking" or "Pinging" Noise: A sharp clunking sound when you shift from Drive to Reverse (or vice-versa) is a classic sign of a bad U-joint. This happens because there is excess play in the joint's bearings.
- Vibration While Driving: A vibration that increases with speed is a very common symptom. You might feel it in the floor or seats. This is caused by the U-joint being unable to rotate smoothly, creating an imbalance in the driveshaft. 🎬 Watch this guide on diagnosing classic car driveline vibrations.
- Squeaking or Chirping: A rhythmic squeak that matches the speed of your driveshaft (not the engine) points to a dry, worn-out U-joint that has lost its lubrication.
A Note on Original Factory U-Joints
Many 1970s GM vehicles, including the Impala, came from the factory with U-joints that were held in place by injected plastic rather than clips. If you are replacing the original U-joints for the first time, this plastic must be melted out with a torch or pressed out. The new aftermarket U-joints will come with inside "C" clips for installation. This makes the first replacement more difficult than any future replacements.
Choosing the Right Aftermarket U-Joint
For your 1977-1981 Impala, you'll be looking for U-joints that fit the GM "3R" or "S44" series. When shopping for a replacement, you have several good options. Quality matters, as a failed U-joint can cause a lot of damage.
Brand Quality Tiers
Not all brands are created equal. Here’s how the available brands generally stack up based on owner experiences and reputation for classic GM vehicles.
Tier 1: Premium Quality (OEM or Better)
- Dana Spicer: Spicer is a well-regarded OEM supplier for many manufacturers, including GM. Their parts are known for durability and proper fit. They offer both greasable (serviceable) and non-greasable (sealed) U-joints. Many mechanics and experienced owners prefer the non-greasable Spicer joints for longevity, as they are sealed better from the factory and don't rely on a regular maintenance schedule.
- Moog: Moog is another top-tier aftermarket brand with a strong reputation. They are known for their "Problem Solver" line, which often includes design improvements over the original part. Moog U-joints are often greasable, with some featuring a convenient grease fitting on the bearing cap.
Tier 2: Good Quality
- SKF: SKF is a large bearing manufacturer that also produces U-joints. Reviews are often mixed; some users have had good experiences, while others have reported issues with fit or durability. They are generally considered a decent mid-range option.
Tier 3: Economy / Standard Quality
- GMB: GMB is often seen as a budget-friendly brand. While they can be a good value, some users in forums have noted a rough feel out of the box or questioned their long-term durability compared to premium brands. They are often manufactured in China or Taiwan.
Specialty

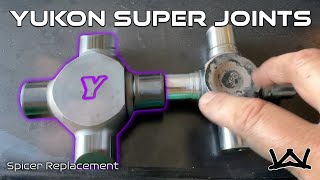

- Yukon Gear & Axle: Yukon parts are typically aimed at high-performance and off-road applications where maximum strength is the priority. Their "Super Joints" are built for extreme abuse but may require more frequent maintenance. For a stock or mildly modified Impala, these are likely overkill. 🎬 See how to install Yukon Super Joints for high-performance builds.
Greasable vs. Non-Greasable U-Joints
Non-greasable (sealed) U-joints are often considered stronger because the cross is solid steel, not drilled for grease passages. They also have better seals to keep contaminants out. Factory U-joints were typically non-greasable and lasted a very long time. Greasable joints can also last a long time, but only if you grease them regularly. If you don't plan on performing regular maintenance, a high-quality sealed joint from a brand like Spicer is often the more reliable choice.
| Brand Tier | Brands | Typical Price Range (per joint) | Notes |
|---|---|---|---|
| Premium | Dana Spicer, Moog | $30 - $60 | Excellent durability and fit. Often OEM suppliers. |
| Mid-Grade | SKF | $25 - $45 | A solid choice, but check reviews for your specific part number. |
| Economy | GMB | $20 - $35 | Budget-friendly option for standard use. |
| Specialty | Yukon Gear | $100+ | For high-horsepower, racing, or heavy-duty applications. |
Frequently Asked Questions (FAQ)
How many U-joints does my 1977-1981 Impala have?
Most 1977-1981 Impalas have a simple one-piece driveshaft with two universal joints. One is at the transmission end (front) and the other is at the rear axle end (rear). Some models, particularly wagons or those with specific transmissions, may have had different driveshaft configurations, so it's always best to inspect your vehicle.
Is replacing a U-joint a DIY job?
Yes, for a mechanically inclined person. However, it requires specific tools. You will need to safely lift the vehicle, remove the driveshaft, and then use a bench vise and sockets or a dedicated U-joint press 🎬 Learn how to replace U-joints without using any special tools. to remove the old joint and install the new one. If you are dealing with original factory joints with injected plastic retainers, you may also need a torch to melt them out. If you are not comfortable with this, a repair shop can do the job.
Should I replace both U-joints at the same time?
It is highly recommended. If one U-joint has failed due to age and mileage, the other is likely not far behind. Since you have to remove the driveshaft to replace one, it is much more efficient to replace both at the same time.
Do I need to get my driveshaft balanced after replacing the U-joints?
If the job is done correctly and no other issues are present, balancing is not always necessary for a simple U-joint swap. However, if you still have a vibration after the replacement, the driveshaft may be out of balance. This can happen if the original balance weights fell off or if the yokes were bent during the U-joint pressing process.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12479126 26042371 12471502
The most common U-joint is the GM 3R (S44) series. These feature a bearing cap diameter of 1.125 inches (1 1/8") and a snap ring dimension of 2.556 inches between the inside grooves of the yoke. Aftermarket replacements use an inside C-clip retention style.
