A Guide to Engine Timing Sets for the 1977-1981 Oldsmobile Custom Cruiser
Address the most common engine failure point in your classic Oldsmobile V8 before it becomes a major problem.
- The original timing set with its nylon cam gear is a known failure point; replace it proactively to avoid engine damage.
- Any aftermarket timing set is an upgrade, as they all use durable all-metal gears instead of the original nylon design.
- A rattling noise from the front of the engine is the most common symptom of a worn timing chain and should be addressed immediately.
- For maximum durability, choose a double-roller timing set from a brand like Edelbrock or Melling Select Performance.
The Critical Flaw in the Original Oldsmobile V8 Timing Set
If your 1977-1981 Custom Cruiser is still running on its original timing set, it's not a matter of if it will fail, but when. The V8 engines used in this era (including the 307, 350, and 403) were built from the factory with a major weak point: a camshaft gear that had nylon-coated teeth. This design was used to make the engine run quieter.
Over time and with exposure to heat and oil, the nylon teeth become brittle, crack, and break off. These plastic pieces fall into the oil pan and can clog the oil pump pickup screen. This starves the engine of oil, which can lead to catastrophic failure. Even before that happens, a stretched chain on a worn gear can jump a tooth, causing the engine to run poorly or not at all.
Fortunately, all aftermarket timing sets are a significant upgrade. They replace the failure-prone nylon-toothed cam gear with a durable, all-metal (cast iron or steel) gear, eliminating this common problem entirely.
Signs of a Failing Timing Set
Watch for these common symptoms that indicate your timing chain and gears are worn and need replacement:
- Engine Rattle: The most common sign is a rattling or slapping sound coming from the front of the engine, especially noticeable at idle or on startup. This is the sound of a loose timing chain hitting the inside of the timing cover.
- Poor Engine Performance: If the chain has stretched and jumped a tooth, the engine's timing will be off. This can cause rough idling, hesitation, loss of power, and engine misfires.
- Metal or Plastic in Oil: When changing your oil, finding small metal shavings or bits of black plastic in the drained oil or on the magnetic drain plug is a clear sign the timing gear is disintegrating.
Choosing the Right Aftermarket Timing Set
For your Custom Cruiser, you have several excellent choices that are all superior to the original factory part. The main decision is between a standard replacement and a performance upgrade.
Standard Replacement Sets (Good)
Brands like Melling and Cloyes are trusted names that provide OE-quality or better replacements. These kits typically feature a standard link-belt (or "silent") chain and durable all-metal gears. They are perfect for a daily driver or a stock restoration, offering reliability for tens of thousands of miles.
Performance Sets (Better)

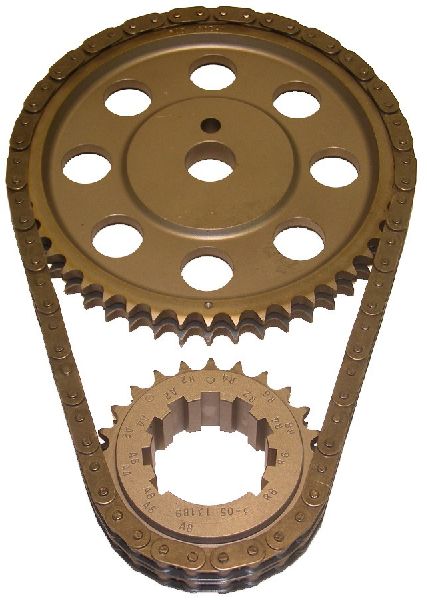

For added durability, especially on a rebuilt engine or one that sees heavy use, consider a performance set from brands like Edelbrock, Melling Select Performance, or a double-roller kit from Cloyes. These kits feature a "double-roller" chain, which is stronger and more resistant to stretching than a standard chain. The gears are often made from billet steel for maximum strength and precise timing. While they may produce a very slight whirring sound compared to a silent chain, the trade-off is superior longevity.
Pro Tip: Since replacing the timing set requires removing the water pump and timing cover, it is highly recommended to replace the water pump, thermostat, and all related gaskets at the same time. This saves you from having to do the same labor twice in the near future.
Aftermarket Timing Set Cost for 1977-1981 Custom Cruiser
| Tier | Price Range | Notes |
|---|---|---|
| Standard Replacement (e.g., Melling, Cloyes) | $24.42 - $60.00 | Excellent upgrade over stock with all-metal gears. |
| Performance Double-Roller (e.g., Edelbrock, Melling Select) | $60.00 - $116.50 | Recommended for maximum durability and performance applications. |
Frequently Asked Questions
When should I replace my timing set?
If your engine has over 80,000 miles and the original nylon gear has never been replaced, you should change it as a preventive measure, even if you don't have symptoms. Otherwise, replace it as soon as you notice any signs of failure like engine rattle.
What is the difference between a standard and a double-roller chain?
A standard chain, often called a "silent" or link-belt chain, looks similar to a wide bicycle chain and is designed for quiet operation. A double-roller chain is like two roller chains side-by-side, offering much greater strength and resistance to stretching, making it a popular performance upgrade.
Are the Oldsmobile V8 engines "interference" engines?
No, the classic Oldsmobile V8s from this era are generally considered non-interference engines. This means if the timing chain breaks, the pistons will likely not hit and destroy the valves. However, the broken chain can still cause significant damage by whipping around inside the engine, so it's a repair that should not be delayed.
Do I need special tools for this job?
Yes, you will need a harmonic balancer puller to remove the crankshaft pulley. You may also need a gear puller for the lower crankshaft timing gear, although sometimes it can be carefully pried off. The rest of the job can be done with standard mechanic's hand tools.
Technical Specifications
The original equipment manufacturer (OEM) timing set for the Oldsmobile V8 engines (307, 350, 403) used in this vehicle featured a camshaft sprocket with nylon-coated teeth. Aftermarket replacements are available with standard link-belt chains or heavy-duty double-roller chains, and all feature all-metal (cast iron or steel) sprockets.
