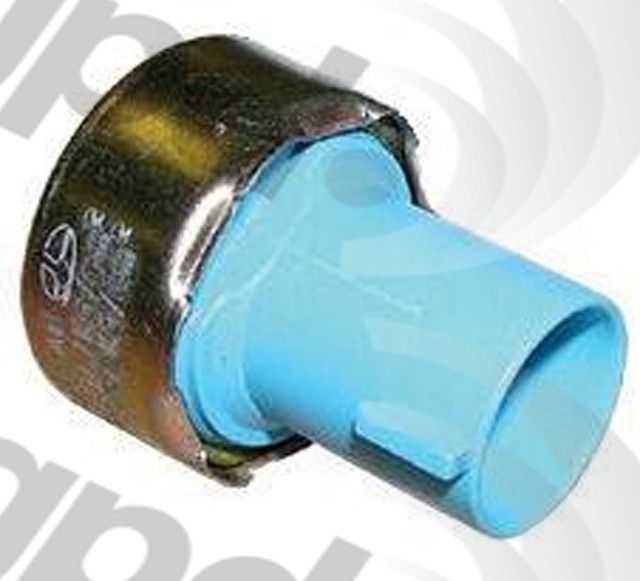

A/C Compressor Cut-Off Switch Guide for 1977-1982 GMC Jimmy
Keep your classic Jimmy's A/C blowing cold by understanding this critical but simple switch.
- The A/C cut-off switch is a safety device that protects your compressor from damage due to incorrect refrigerant pressure.
- Symptoms of a bad switch include the A/C compressor not turning on, intermittent cooling, or only blowing warm air.
- For this vehicle, aftermarket brands like Four Seasons or Global Parts are the primary replacement options.
- Before replacing the switch, confirm the A/C system has the correct refrigerant charge, as low refrigerant will also cause the switch to cut off the compressor.
Is a Bad A/C Cut-Off Switch Keeping Your Jimmy Hot?
If the air conditioning in your 1977-1982 GMC Jimmy isn't working, a faulty A/C compressor cut-off switch is a possible culprit. This component, also known as a pressure switch, is a common failure point in many A/C systems. Its failure can leave you with warm air blowing from the vents, especially on a hot day.
Symptoms of a Failing A/C Cut-Off Switch
A bad pressure switch can mimic other A/C problems 🎬 Watch this video to learn more about bad pressure switch symptoms., but there are a few key signs to look for:
- A/C Compressor Won't Turn On: The most common symptom is a compressor that won't engage at all. Because the switch is designed to cut power, a faulty one can permanently keep the circuit open, preventing the compressor clutch from ever engaging.
- Intermittent Cooling: The A/C might work for a little while and then suddenly stop, or cycle on and off frequently. This can happen if the switch is failing and sending erratic signals to the compressor.
- A/C Only Blows Warm Air: If the compressor isn't running, the refrigerant isn't circulating to cool the air. The blower fan will still work, but you'll only get ambient or warm air from the vents. 🎬 See five common signs that your AC pressure switch is failing.
Pro Tip: Check the Refrigerant First
A low refrigerant level is a very common reason for the low-pressure cut-off switch to activate and shut down the compressor. This is the switch doing its job correctly. Before replacing the switch, it's wise to have the system's refrigerant level checked by a qualified mechanic.
Choosing a New Aftermarket Switch
For a classic vehicle like the '77-'82 Jimmy, finding a new OEM (Original Equipment Manufacturer) part is nearly impossible. Aftermarket parts are the standard for these repairs. Brands like Four Seasons and Global Parts (GPD) are widely available and offer direct-fit replacements.
- Quality: For a simple electronic switch like this, the primary difference between brands is often build quality and longevity. Forum discussions show mixed reviews for many aftermarket brands, but Four Seasons is a frequently mentioned option for A/C components. Given the simplicity of the part, either brand should provide a functional replacement.
- Fitment: Always verify that the part is listed as a direct fit for your 1977-1982 GMC Jimmy. While many GM trucks of this era used similar parts, slight variations can exist. Some switches may feature an updated two-terminal design to replace the older single-terminal switch.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $22 - $55 |
| Shop Labor | $50 - $100 |
| Total (DIY) | $22 - $55 |
| Total (Installed) | $72 - $155 |
Note: Costs are estimates and can vary based on location, supplier, and specific vehicle condition. A/C system diagnostics and refrigerant services will add to the total cost.
Frequently Asked Questions
Can I replace the A/C cut-off switch myself?
Yes, this is often a straightforward DIY job for those with basic mechanical skills. The switch is typically located on one of the A/C lines in the engine bay and can be unscrewed. However, be aware that opening the system may release refrigerant, which is illegal and harmful to the environment. Some switches are mounted on a Schrader valve, which allows replacement without discharging the system. Check your specific setup before proceeding. If you are unsure, professional service is recommended.
Do I need to empty the A/C system to change the switch?
It depends. Many pressure switches are mounted on a service port with a Schrader valve, similar to a tire valve. This allows you to unscrew and replace the switch without losing the refrigerant charge. However, if your switch does not have this feature, the system must be professionally evacuated before replacement and then recharged and tested afterward.
What's the difference between a high-pressure and low-pressure switch?
An A/C system has both a high-pressure side and a low-pressure side. A low-pressure switch protects the compressor from running with too little refrigerant. A high-pressure switch protects the system from excessive pressure, which could be caused by a blockage or other malfunction. Some vehicles combine these into a single switch. For your Jimmy, you need to ensure you are replacing the correct one.
Are there any recalls for the A/C system on my 1977-1982 GMC Jimmy?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the A/C compressor cut-off switch or the A/C system on the 1977-1982 GMC Jimmy. Any issues are typically related to age and wear.
Helpful Videos
Technical Specifications
Typically mounts on the A/C liquid line or accumulator. May have a single or dual electrical terminal design. Function is to open the electrical circuit to the compressor clutch when pressure is outside the specified range.
