Engine Timing Set Guide for the 1977-1982 Pontiac Firebird
Keep your Firebird's classic Pontiac V8 running strong and reliable by understanding its timing set.
- The original nylon-toothed cam gear is a known failure point; any replacement with all-metal gears is a significant upgrade.
- Symptoms include engine rattle, poor performance, and metal shavings in the oil.
- Always replace the chain and sprockets as a complete set to ensure longevity and proper function.
- Verify your engine type (Pontiac, Chevy, etc.) before ordering, as the parts are not interchangeable. A Pontiac V8 uses a single-bolt cam gear.
Symptoms of a Worn Timing Set
A failing timing set gives several warning signs before a catastrophic failure. If your Firebird is showing these symptoms, it's time to investigate.
- Rattling Noise: The most common symptom is a rattling or scraping sound from the front of the engine, especially noticeable at idle or on a cold start. This is the sound of a loose chain slapping against the inside of the timing cover.
- Engine Misfires and Poor Performance: As the chain stretches, it can cause the camshaft timing to become inaccurate. This leads to a rough idle, hesitation during acceleration, and a general loss of power.
- Metal Shavings in Oil: When the chain and gears wear, tiny metal particles can shear off and end up in the oil pan. Finding metallic debris during an oil change is a major red flag.
- Inconsistent Ignition Timing: An experienced mechanic can use a timing light to check the ignition timing. If the timing mark on the harmonic balancer appears to jump around or wander, it's a classic sign of a loose timing chain.
The Original Nylon Gear Problem
Many factory Pontiac V8 engines from this era came with a camshaft sprocket that had nylon-coated teeth. This was done to reduce noise. Over decades of heat cycles and exposure to oil, the nylon becomes brittle, cracks, and breaks off. These pieces fall into the oil pan, where they can clog the oil pump pickup screen, leading to oil starvation and severe engine damage. Nearly all aftermarket timing sets are an upgrade because they use all-metal gears.

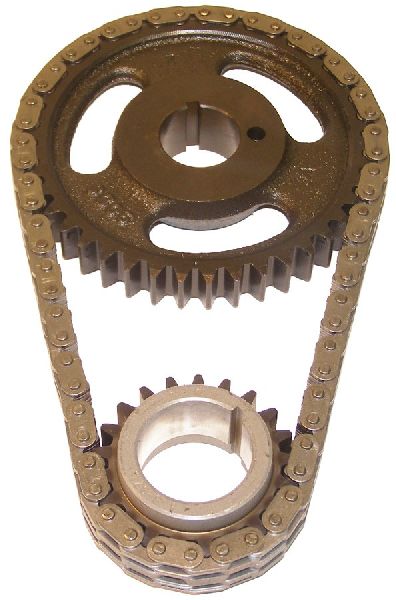

Choosing the Right Aftermarket Timing Set
For a vehicle of this age, aftermarket parts are the standard, and often an improvement over the original. It's important to identify your engine, as 1977-1982 Firebirds could have Pontiac, Chevrolet, or Oldsmobile V8s, which use different timing sets. A true Pontiac V8 timing set is identified by its single-bolt camshaft gear.
Brand Tiers for Your Firebird
- Performance (Edelbrock, Melling Select Performance): These brands offer high-strength timing sets, often with double-roller chains. A double-roller chain provides maximum strength and timing accuracy, making it ideal for high-performance rebuilds, engines with aggressive camshafts, or anyone wanting the most durable option. Forum discussions note that Edelbrock and Cloyes gears can appear identical, suggesting a shared manufacturer.
- Heavy-Duty OE Replacement (Cloyes, Melling, Sealed Power): These are the go-to choice for most owners. They provide excellent durability for stock or mildly modified engines. Brands like Cloyes and Melling are well-respected in the Pontiac community for their quality and reliability. These sets feature all-metal gears, eliminating the original nylon tooth failure point.
- Standard Replacement (INA, Value-Line Parts): These kits meet basic requirements and are a cost-effective way to replace a worn-out timing set on a standard daily driver. They are a significant step up from a worn original part.
Estimated Costs
The cost of replacing a timing set can vary based on the parts you choose and labor rates in your area. Replacing the timing set is a labor-intensive job.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $24 - $296 |
| Shop Labor | $400 - $750 |
| Total Estimated Cost | $424 - $1046 |
Frequently Asked Questions
Is a double-roller timing chain worth it?
For a stock or mild street engine, a quality standard silent chain or single-roller chain from a brand like Melling or Cloyes is perfectly adequate and a huge upgrade over the original. A double-roller chain is stronger and stretches less over time, making it the preferred choice for performance engines that see high RPMs or have high-lift camshafts.
Can I just replace the chain and not the gears?
This is not recommended. A worn chain will have worn the teeth of the gears as well. Installing a new chain on old sprockets will cause the new chain to wear out very quickly and can lead to improper timing. Always replace the chain and both sprockets as a matched set.
Were there any recalls for the timing set on the 1977-1982 Firebird?
No, there were no official recalls or Technical Service Bulletins (TSBs) issued by Pontiac or the NHTSA specifically for the engine timing set on the 1977-1982 Firebird. The failure of the original nylon gear is a well-documented issue among owners and mechanics but was never addressed with a recall.
How difficult is it to replace the timing set myself?
This is an advanced DIY job. It requires draining fluids, removing the radiator, fan, belts, pulleys, water pump, harmonic balancer, and timing cover. You will need a good set of tools, a torque wrench, and a harmonic balancer puller. The most critical step is correctly aligning the timing marks on the new gears before putting everything back together. If you are not comfortable with this level of engine work, it is best left to a professional mechanic.
Technical Specifications
Fitment is specific to the engine family (Pontiac, Chevrolet, Oldsmobile). True Pontiac V8 engines of this era use a timing set with a single-bolt camshaft sprocket. Chain types include standard silent link, single roller, and double roller.
