Ford Courier Engine Oil Pressure Switch Guide (1977-1983)
Keep your classic Courier's engine safe by understanding this critical, easy-to-replace part.
- The oil light is your only warning; if it comes on, always check the oil level first before assuming the switch is bad.
- This is a simple, low-cost DIY repair that typically only requires a wrench or deep socket.
- Your 1977-83 Courier is a rebadged Mazda B-Series, which helps in finding cross-compatible parts.
- For this part, a quality aftermarket brand like Standard Ignition offers reliability without the unavailable OEM option.
Is Your Oil Light Flickering?
For a simple truck like the 1977-1983 Ford Courier, the oil pressure warning system is straightforward. It's not a gauge that shows exact pressure, but a simple on/off light. This light is controlled by the engine oil pressure switch. While a lit oil light can mean serious trouble, on an older truck, it's often just a faulty switch. These switches can fail over time, either by leaking oil or by giving false readings.
Warning: Don't Ignore The Oil Light
If your oil light comes on, always stop the engine as soon as it's safe and check your oil level. Driving with low oil pressure can destroy your engine in minutes. If the oil level is fine, the problem is likely the switch or the wiring.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can cause a few confusing symptoms:
- Oil light stays on even with a full oil level: This is the most common failure. The switch is stuck in the 'on' position, giving a false alarm.
- Oil light flickers at idle: The switch might be failing, causing it to rapidly open and close as the pressure fluctuates slightly.
- Oil light never comes on: The switch could be broken in the 'off' position. You can test this by seeing if the light illuminates for a moment when you first turn the key to the 'on' position before starting the engine.
- Visible oil leak: The switch itself can develop a leak through its body or seal, often dripping oil onto the engine block or ground.
Choosing the Right Aftermarket Switch
For a vehicle of this age, new OEM (Original Equipment Manufacturer) parts from Ford are no longer available. Luckily, the 1977-1983 Ford Courier is a rebadged Mazda B-Series truck, so parts are often shared. The aftermarket provides several good options for this simple part. Given the low cost and simple function, you don't need to overspend, but choosing a reputable brand is wise.
Brand Quality Tiers
- Top Tier (Standard Ignition): Standard Motor Products (SMP), the parent company of Standard Ignition, is a well-respected aftermarket manufacturer. They often produce parts that meet or exceed original specifications and are known for quality control. 🎬 Watch this video to see how Standard oil switches are made. For a critical sensor, this is a reliable choice.
- Mid Tier (Rostra Powertrain): Rostra is known for its electronic components, particularly for transmissions. Their switches are generally considered good quality and a solid option for a daily driver or restoration project.

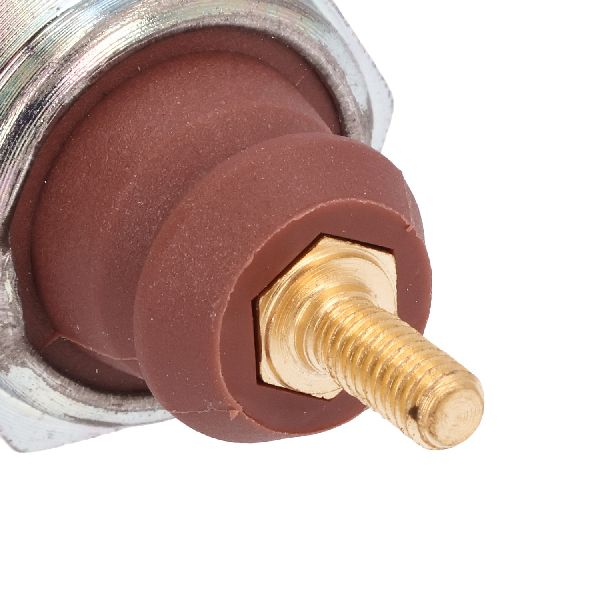

- Economy Tier (Global Parts): This brand name can be generic, but it often represents a budget-friendly option. For a simple switch on a classic truck, this can be a perfectly acceptable choice if you're on a tight budget, but quality may be less consistent 🎬 Learn more about the manufacturing behind Global Autoparts components. than the higher tiers.
Pro Tip: Check the Connector
After decades of heat and vibration, the electrical connector for the switch can become brittle or corroded. While replacing the switch, inspect the connector and wire. If it looks damaged, it's a good idea to replace it to ensure a solid connection.
Cost of a New Oil Pressure Switch (1977-1983 Ford Courier)
| Part Type | Typical Cost |
|---|---|
| New Aftermarket Switch | $7.35 - $32.78 |
| Shop Labor to Install | $45 - $90 |
Note: Costs are estimates and can vary by location and supplier. Since this is a simple part, shop labor is minimal.
Frequently Asked Questions
Where is the oil pressure switch located on a 1977-1983 Ford Courier?
The oil pressure switch is typically screwed into the engine block, usually near the oil filter. On these Mazda-derived engines, you will find it on the side of the block, often with a single wire connected to it.
Is it hard to replace the oil pressure switch myself?
No, this is a very easy job for a DIY mechanic. It usually requires just a deep socket wrench. The process is: disconnect the wire, unscrew the old switch, screw in the new one (some come with thread sealant pre-applied), and reconnect the wire. The most difficult part might be reaching it if access is tight.
My truck has an oil pressure gauge, not a light. Does it use a switch?
No. If your truck has a factory gauge that shows a range of pressure, it uses an oil pressure 'sending unit' or 'sensor', not a switch. A switch is for an on/off warning light. A sending unit is a variable resistor that provides a signal for a gauge. Make sure you order the correct part for your dashboard setup.
Are there any recalls for the oil pressure switch on my Ford Courier?
No, there are no specific recalls from Ford or the NHTSA for the oil pressure switch on the 1977-1983 Ford Courier. Any issues would be considered general maintenance or repair for a vehicle of this age.
Do I need to drain the oil to replace the switch?
No, you do not need to drain the engine oil. The switch is located high enough on the engine block that only a very small amount of oil, if any, will drip out when you remove it. It's a good idea to have a rag handy to clean up any drips.
Helpful Videos
Technical Specifications
This vehicle uses a simple on/off switch for a warning light, not a variable sensor for a gauge. It has a single-wire connector. Diagnostic trouble codes (P-codes) are not applicable to this vehicle generation.
