A/C Clutch Cycle Switch Guide for 1977-1990 Cadillac DeVille
Is your classic Cadillac's A/C blowing warm? This simple switch could be the reason why.
- A faulty A/C clutch cycle switch is a common cause of A/C failure in 1977-1990 DeVilles.
- Symptoms include warm air, intermittent cooling, or the compressor not turning on.
- Replacement is extremely easy and does not require discharging the A/C system.
- New aftermarket brands like Four Seasons offer a reliable and affordable fix.
Is Your DeVille's A/C Acting Up? Check the Clutch Cycle Switch
If the air conditioning in your 1977-1990 Cadillac DeVille isn't blowing cold, blows warm, or works on and off, a faulty A/C clutch cycle switch is a common and easy-to-fix problem. This small but critical sensor tells your A/C compressor when to engage. When it fails, the compressor may not turn on at all, or it may cycle too frequently, preventing the system from cooling properly.
🎬 Watch: Why your A/C issue might be electrical, not a leak.Symptoms of a Failing A/C Clutch Cycle Switch
Watch for these clear signs that your switch may need replacement:
- A/C Blows Warm Air: The most common symptom is a complete lack of cold air because the compressor isn't engaging to pressurize the refrigerant.
- Intermittent Cooling: The A/C might work for a few minutes and then stop, or cut in and out randomly. This can be caused by the switch failing to consistently read system pressure.
- Compressor Clutch Doesn't Engage: You won't hear the distinct "click" of the A/C compressor clutch engaging when you turn on the air conditioning. You can often test this by jumping the switch's electrical connector; if the clutch engages, the switch is likely bad 🎬 See how to safely jump the compressor clutch for testing. (or the system is low on refrigerant).
- Compressor Cycles Rapidly: A faulty switch can send incorrect signals, causing the compressor to click on and off very quickly.
A Note on System Pressure
Many of these symptoms can also be caused by low refrigerant levels. The clutch cycle switch is designed to prevent the compressor from running if the refrigerant is too low, which protects it from damage. Before replacing the switch, it's a good idea to verify the system has an adequate refrigerant charge.
Choosing the Right Aftermarket Switch
For a classic vehicle like the 1977-1990 DeVille, finding new original equipment (OEM) parts is nearly impossible. The market is served by reliable aftermarket brands that produce new components meeting or exceeding original specifications.
Brand Tier Assessment:

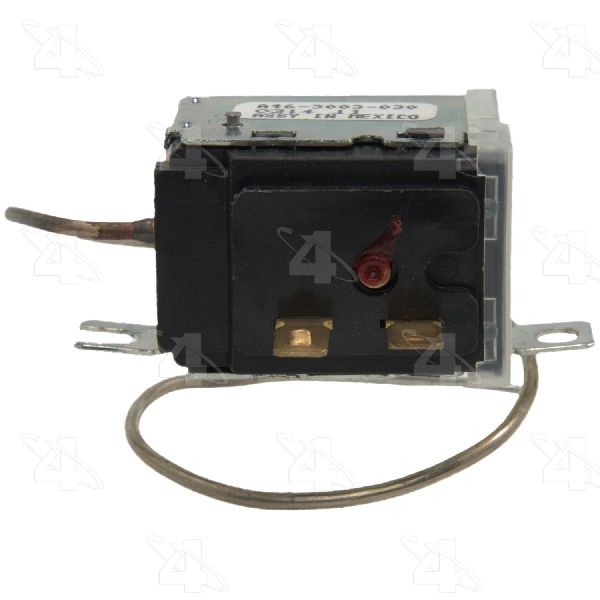

- Four Seasons: This is a well-known and trusted brand in the aftermarket A/C parts industry. Their switches are widely available and are considered a reliable, quality replacement for your Cadillac.

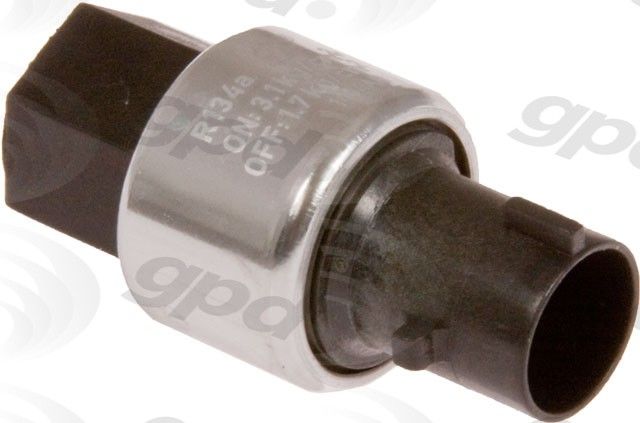

- Global Parts: This is another available aftermarket brand. While less public review information was found during research, they are a supplier in the market.
Given the low cost and critical function of this part, a new aftermarket switch from a reputable brand like Four Seasons is a much better choice than a used or New Old Stock (NOS) part, which may have aged seals or internal components.
Cost at a Glance
| Part Type | Price Range |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $17.16 - $38.72 |
| Shop Labor | $25 - $50 |
DIY Replacement is Easy
Replacing this switch is one of the easiest A/C repairs you can do. On most GM vehicles of this era, the switch is mounted on a Schrader valve, like a tire valve. This means you can simply unscrew the old one and screw on the new one without losing your refrigerant charge. No special tools or system evacuation are needed, making it a 15-minute job for most DIY mechanics.
🎬 Watch this quick walkthrough of a GM pressure switch replacement.Frequently Asked Questions
Where is the A/C clutch cycle switch located on my DeVille?
On most 1977-1990 Cadillac DeVilles, you will find the clutch cycle switch mounted directly on the A/C accumulator (also called a receiver/drier). This is a large, cylindrical metal can located on the low-pressure side of the A/C system, typically near the firewall on the passenger side of the engine bay.
Do I need to drain the refrigerant to replace this switch?
No. In most cases, you do not need to evacuate the A/C system. The switch is threaded onto a Schrader valve that seals the system when the switch is removed. You may hear a very brief hiss of gas as you unscrew it, which is normal.
How do I test my old switch?
A simple test is to unplug the electrical connector and use a paperclip or a small jumper wire to connect the two terminals inside the connector. With the engine running and A/C on, this should force the compressor clutch to engage. If it does, your switch is likely faulty or your system is low on refrigerant.
Are there any recalls for this part on my Cadillac?
Based on searches of the National Highway Traffic Safety Administration (NHTSA) database, there are no specific recalls or technical service bulletins (TSBs) related to the A/C clutch cycle switch for the 1977-1990 Cadillac DeVille.
Helpful Videos
Technical Specifications
System Mounted Preset Cycling Temperature/Pressure Switch
