Jeep Cherokee Wiper Switch Guide: Understanding Failures and Replacement for 1977-1996
Solving common wiper problems in your SJ or XJ Cherokee starts with the right switch.
- First, identify if you have an SJ (1977-83) with a dash knob or an XJ (1984-96) with a column lever.
- For XJ models, a faulty intermittent wiper function is often caused by a separate delay module under the dash, not the switch itself.
- When ordering, you must know if your Cherokee has intermittent wipers and a tilt steering column to get the correct part.
- Replacement on an XJ is DIY-friendly and typically does not require removing the steering wheel.
Is Your Cherokee an SJ or an XJ? It Matters.
Before buying a wiper switch, you must know which Jeep Cherokee you own. The 1977-1996 range covers two completely different vehicles.
- 1977-1983 (SJ): These are the full-size Cherokees, similar to the Wagoneer. They use a rotary knob on the dashboard to control the wipers.
- 1984-1996 (XJ): This is the iconic, boxy compact Cherokee. These models use a combination switch lever (or stalk) on the steering column. This guide focuses primarily on the more common XJ models due to the volume of available information.
Common Symptoms of a Failing Wiper Switch
A bad wiper switch can cause a range of frustrating problems. Here’s what Cherokee owners often report:
- Intermittent Setting Fails: This is the most common complaint. The wipers may run at a constant low speed instead of delaying, or the intermittent function won't work at all.
- Wipers Don't Park: When you turn the wipers off, they stop in the middle of the windshield instead of returning to the bottom.
- Only One Speed Works: You might lose low or high speed, forcing you to use a speed that isn't right for the weather.
- Wipers Don't Turn On: Complete failure of the switch can leave you with no wiper function at all.
- Washer Pump Issues: The switch also controls the washer pump, so a failure can prevent you from spraying fluid.
The Infamous Intermittent Wiper Module
On many 1984-1996 XJ models, a separate intermittent wiper delay module located under the driver's side dash is the true cause of delay-function problems. If your low and high speeds work but the intermittent settings don't, this module is the likely culprit, not the switch itself. Unfortunately, these modules are often no longer made, so a replacement may need to be sourced from a junkyard or repaired by a specialist. 🎬 See how to open and repair a faulty delay module. Replacing the wiper switch will not fix a bad intermittent module.
Choosing the Right Aftermarket Wiper Switch
When shopping for a new switch, you must match the new part to your vehicle's specific configuration.
- Verify Your Model: Is it an SJ (dash switch) or XJ (column switch)?
- Check for Intermittent Wipers: The most important factor. Switches for vehicles with and without intermittent wipers are different and not interchangeable.
- Check for Tilt Steering: On some models, the switch can differ between fixed and tilt steering columns.
Aftermarket Brand Quality: Standard Ignition
Standard Ignition (also known as Standard Motor Products) is a widely available aftermarket brand. Their product descriptions claim their switches are direct-fit OE replacements made with quality materials like copper alloy conductors. While specific, long-term reviews for this part on a 1977-1996 Cherokee are not readily available in owner forums, the brand is a common choice for general repairs. The most critical factor for success is ensuring you order the correct part number for your Jeep's features.
Cost of a New Wiper Switch (1977-1996 Jeep Cherokee)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Standard Ignition) | $82.27 - $285.38 |
| New OEM | Not widely available; likely $200+ if found |
| Used OEM (Junkyard) | $20 - $75 |
| Shop Labor for Installation | $75 - $150 |
Note: Prices are estimates and can vary based on location, brand, and vehicle configuration. The wide price range for aftermarket parts reflects the different switch designs for SJ vs. XJ models and features like intermittent wipers.
A Note on Replacement (XJ Models)
Replacing the wiper switch on an XJ is a manageable DIY job. It involves removing the plastic shrouds around the steering column (usually with Phillips and Torx screwdrivers) to access the switch. In most cases, you do not need to remove the steering wheel. The switch is held on by a couple of screws and has two electrical connectors.

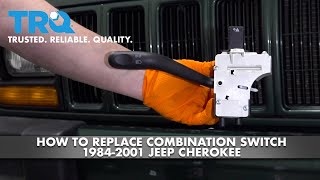

🎬 Watch this step-by-step guide to replacing your XJ combination switch.Frequently Asked Questions
Why did my intermittent wipers still not work after I replaced the switch?
This is almost certainly due to a failed intermittent wiper module, a separate box under the dash on many XJ models. The switch sends a signal to this module, but the module itself creates the delay. 🎬 Watch this video to locate and bypass the intermittent module. If the module is bad, a new switch won't fix it.
Do I need to disconnect the battery to replace the wiper switch?
Yes. It is always recommended to disconnect the negative battery terminal before performing any electrical work on your vehicle to prevent short circuits and for safety, especially when working near the steering column which may contain airbag wiring.
Can I just fix my old switch?
Sometimes. The internal plastic and metal contacts can wear out or break. Some owners have had success disassembling the switch and cleaning the contacts or using JB Weld to fix broken plastic pieces, but this is a delicate repair and often not a permanent solution. Given the availability of aftermarket parts, replacement is usually the more reliable option.
Are there any recalls for the wiper switch on my Cherokee?
Searches of the NHTSA database did not show any specific recalls for the wiper switch or wiper system on 1977-1996 Jeep Cherokee models. Recalls found were for much newer Cherokee models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5459276 5750035 5269376 5269377
Varies significantly by year and model. Early (SJ) models use a dash-mounted rotary switch. Later (XJ) models use a column-mounted multi-function lever. Part compatibility depends on the presence of intermittent wipers and a tilt steering column.
