Choosing the Right Engine Valve Cover Gasket Set for Your 1978-1983 Ford Bronco
Stop those frustrating oil leaks with the correct valve cover gaskets for your classic Bronco's engine.
- Do not over-tighten the valve cover bolts; the torque spec is very low (4-7 ft-lbs) to avoid warping the covers.
- Choose a gasket material based on your needs: cork is cheap but temporary, while rubber or silicone with a steel core offers the best long-term seal.
- Before installation, check that the valve cover's sealing rail is flat, especially around the bolt holes, and gently hammer it straight if needed.
- No specific recalls or TSBs exist for this part on the 1978-1983 Bronco; failures are due to age and wear.
Symptoms of a Failing Valve Cover Gasket
When your Bronco's valve cover gaskets start to fail, the signs are usually obvious. Because these gaskets are constantly exposed to engine heat, they can become hard, brittle, and cracked over time, losing their ability to seal properly. Here’s what to look for:
- Burning Oil Smell: This is the most common symptom. As oil seeps from the gasket, it drips onto hot engine parts like the exhaust manifold, where it burns off and creates a distinct, sharp smell.
- Visible Oil Leaks: You will see oil residue and grime on the valve covers and the sides of the cylinder heads. Leaking oil attracts dirt, creating a thick, greasy buildup.
- Low Engine Oil: A persistent leak will cause your engine oil level to drop over time, which could trigger the oil light on your dash if it gets too low.
- Engine Misfires: In some cases, oil can leak into the spark plug tubes, fouling the spark plugs and causing the engine to run rough or misfire.
A Note on Leaks and Fire Risk
While a small oil seep might not seem urgent, a significant leak that allows oil to drip onto a hot exhaust manifold can create a fire hazard. It's best to address failing gaskets promptly.
Choosing the Right Aftermarket Gasket for Your Bronco
For a vehicle from this era, original Ford OEM gaskets are generally not available. The market consists entirely of aftermarket parts, where quality is determined by material and design, not just the brand name. Your choice of gasket will depend on your budget and how often you plan on removing the valve covers.

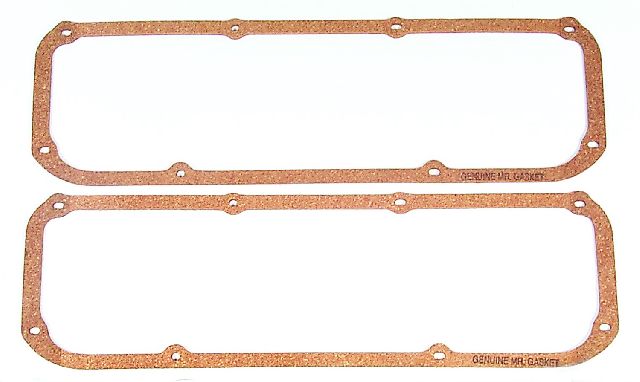

Good: Cork Gaskets
Cork is the traditional, budget-friendly material. Brands like Fel-Pro offer basic cork gaskets that provide a decent seal, especially on original stamped steel valve covers that may have slight imperfections. However, cork is prone to drying out, cracking, and becoming brittle with heat and time, meaning it will likely leak again in the future. They are generally considered a single-use item.
Better: Rubber Gaskets
Rubber gaskets are a significant step up from cork. They are more durable, flexible, and resistant to heat and oil. This makes them less likely to crack and better at maintaining a seal over the long term. Many rubber gaskets can be reused if they are in good condition, which is a bonus if you frequently adjust your valves. Brands like Victor Reinz are known for making quality rubber gaskets.
Best: Silicone or Steel-Core Rubber Gaskets
For the best possible seal and longevity, look for premium gaskets made of silicone or rubber with a steel core. These gaskets offer superior temperature resistance and durability. Many feature built-in steel torque limiters—small metal rings around the bolt holes that prevent you from over-tightening the bolts and crushing the gasket. Brands like Fel-Pro, Edelbrock, and Mr. Gasket offer these high-quality options, which are often reusable and provide the most reliable, long-term seal.
Installation Pro-Tip: Don't Over-tighten!
The most common cause of valve cover leaks on these Broncos is over-tightening the bolts. This warps the stamped steel valve covers, creating gaps that the gasket can't seal. The torque specification is very low: just 45-50 inch-pounds (about 4-7 ft-lbs). It's also a good practice to check if your valve cover's bolt holes are flat before installation. If they are dimpled inward, you can gently flatten them with a small hammer and a block of wood.
Cost of New Engine Valve Cover Gasket Sets
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Cork) | $17 - $30 |
| New Aftermarket (Rubber/Silicone) | $30 - $74 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Do I need to use sealant or RTV with my new gaskets?
Most modern rubber and silicone gaskets are designed to be installed dry. Some mechanics apply a small amount of adhesive like Permatex or 3M weatherstrip adhesive to hold the gasket in the valve cover during installation, but no sealant should be used on the cylinder head side. Using too much RTV can cause it to squeeze out and potentially clog oil passages.
Are there any recalls for 1978-1983 Bronco valve cover gaskets?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically related to engine valve cover gaskets for the 1978-1983 Ford Bronco.
Which gasket material is best for stamped steel vs. cast aluminum valve covers?
While cork can conform well to imperfect stamped steel covers, high-quality rubber or silicone gaskets with a steel core are superior for both types. For heavy cast aluminum covers, a rigid, high-quality rubber or silicone gasket is highly recommended to ensure a perfect seal.
Is this a difficult job to do myself?
No, this is a great job for a beginner. The process is straightforward: remove accessories in the way, unbolt the covers, clean the surfaces thoroughly, and reinstall with the new gasket. The key is being patient with cleaning and being careful not to over-tighten the bolts.
Technical Specifications
Valve Cover Bolt Torque: 45-50 INCH POUNDS (approx. 4-7 ft-lbs).
