A/C Compressor Cut-Off Switch Guide for 1978-1985 Chevrolet Corvette
Keep your C3 Corvette's A/C system protected and running cold by understanding its critical pressure switches.
- A faulty A/C switch causes symptoms like intermittent cooling, warm air, or rapid compressor clicking.
- Always check refrigerant pressure before replacing the switch, as low refrigerant causes similar issues.
- Replacement is easy for DIYers; the switch usually sits on a Schrader valve, preventing refrigerant loss.
- For this Corvette generation, quality aftermarket brands like Four Seasons or GPD are a practical and affordable choice.
Is your Corvette's A/C acting up? It could be a bad pressure switch.
If your 1978-1985 Corvette's air conditioning isn't blowing cold, is working intermittently, or the compressor is clicking on and off rapidly, a failing A/C compressor cut-off switch could be the culprit. This small but vital sensor acts as a guard for your A/C compressor, shutting it down if pressures are outside the safe operating range. Replacing a faulty switch is a straightforward repair that can restore proper A/C function and prevent a catastrophic compressor failure.
Symptoms of a Failing A/C Cut-Off Switch
- A/C Blows Warm Air: If the switch incorrectly reads low pressure, it will prevent the compressor from turning on, resulting in warm air from the vents.
- Intermittent Cooling: The A/C might work for a while and then suddenly stop. This can happen if the switch is failing and sending erratic signals, causing the compressor to cycle on and off randomly.
- Compressor Won't Turn On: A completely failed switch can prevent the compressor clutch from engaging at all, even if the refrigerant level is correct. You can sometimes test this by carefully bypassing the switch with a jumper wire; if the compressor kicks on, the switch is likely bad.
- Rapid Clicking Noise: You might hear the A/C compressor clutch clicking on and off every few seconds. While this can also be a sign of low refrigerant, it's a classic symptom of a faulty pressure cycling switch.
Check Refrigerant Levels First
Many symptoms of a bad A/C switch are identical to those of a system that is simply low on refrigerant. Before replacing any parts, it's wise to have the system pressures checked with a manifold gauge set to rule out a leak or improper charge.
Choosing the Right Aftermarket Switch
For the C3 Corvette, original GM switches are becoming harder to find and can be expensive. Aftermarket brands like Four Seasons and Global Parts Distributors (GPD) offer readily available and affordable replacements. Given the age of the vehicle and the straightforward function of this part, a quality aftermarket switch is a practical choice for most owners.
- Brand Reputation: Four Seasons is a well-known aftermarket A/C parts brand and is part of Standard Motor Products. Some users find their parts to be reliable, while others have noted concerns about quality compared to OEM. Global Parts (GPD) is another common option in a similar price range.
- OEM vs. Aftermarket: While OEM parts are often preferred for complex electronics, for a simple pressure switch on a vintage vehicle like the C3, a reputable aftermarket part is generally sufficient and cost-effective. The key is ensuring the pressure ratings and thread size match your vehicle's requirements.
| Brand | Estimated Price |
|---|---|
| Four Seasons | $25 - $52 |
| Global Parts (GPD) | $22 - $35 |
Pro Tip: Some replacement switches are designed for modern R134a refrigerant and may have different pressure cycling points than the original R12 switches. If you have converted your system to R134a, using a switch calibrated for it can improve performance.
Frequently Asked Questions (FAQ)
Where is the A/C cut-off switch located on my Corvette?
On these Corvettes, you will typically find pressure switches in a couple of locations. The low-pressure cycling switch is often found on the A/C accumulator (the black or silver can-shaped component near the firewall). A high-pressure switch may be located on the back of the A/C compressor itself or threaded into one of the high-pressure lines.
🎬 Watch this overview of Corvette A/C systems and switch locations.Can I replace the A/C switch myself?
Yes, this is a DIY-friendly job for most owners. The switches are usually accessible and simply unscrew. Many are mounted on a Schrader valve, similar to a tire valve, which means you can replace the switch without losing the system's refrigerant charge. However, it's best to confirm this for your specific switch, as some configurations may require evacuating the system.
Do I need to buy a special tool to replace the switch?
Typically, no special tools are needed. A standard open-end wrench that fits the base of the switch is usually all that's required. You will also need to disconnect the electrical connector, which can be done by hand.
My Corvette has been converted to R134a refrigerant. Does that matter?
Yes, it can. R134a operates at different pressures than the original R12 refrigerant. While an original-style switch will work, using a pressure switch specifically calibrated for R134a can result in more efficient compressor cycling and better cooling performance. Some aftermarket switches are compatible with both.
Are there any recalls for the A/C system on my 1978-1985 Corvette?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically related to the A/C compressor, clutch, or pressure switches for the 1978-1985 model years.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6262646 10007057

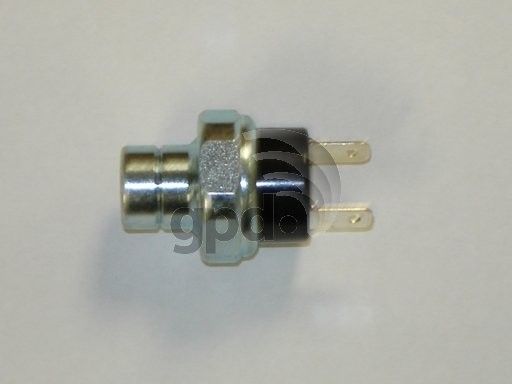

Connector: 2-terminal blade type. Thread Size: 7/16-20. Function: Low-pressure cycling or high-pressure cut-out.
