A/C Accumulator Replacement Guide for the 1978-1985 Chevrolet G10
Keep your classic G10's air conditioning blowing cold by choosing the right replacement A/C accumulator.
- You must replace the accumulator and the orifice tube any time the A/C system is opened for service to protect the compressor and validate warranties.
- Symptoms of failure include poor cooling, visible oily leaks on the canister, and rattling noises when the A/C is on.
- New aftermarket brands like Four Seasons and GPD are reliable, cost-effective choices for this van.
- Replacement requires special tools to evacuate and recharge the system, so the final steps should be done by a professional shop.
Is Your G10's A/C Not as Cold as It Used to Be?
If the air conditioning in your classic Chevy van isn't performing like it should, a failing A/C accumulator could be the problem. Over time, the desiccant material inside becomes saturated with moisture and can no longer protect the system. On an older van like the G10, the accumulator can also rust or corrode, causing refrigerant leaks.
Symptoms of a Bad A/C Accumulator
When the accumulator fails, it can cause several noticeable issues. Here’s what to look for:
- Poor Cooling Performance: The most common symptom is air from the vents that isn't cold. This can happen if the accumulator is leaking refrigerant or if the internal desiccant is saturated, reducing system efficiency.
- Visible Refrigerant Leaks: You might see an oily residue on the accumulator canister or on the ground beneath it. This is a sign that refrigerant and the oil mixed with it are leaking out.
- Rattling or Gurgling Noises: A rattling sound when the A/C is on can indicate that the desiccant bag or other internal components have broken apart. Bubbling or gurgling sounds can also point to a problem.
- Frost on the Accumulator: Ice building up on the outside of the accumulator can be a sign of a moisture problem or an internal blockage.
A Note on Musty Smells
While some sources link a moldy smell to a bad accumulator, this odor usually comes from mold growing on the evaporator core. The accumulator's job is to keep moisture out of the sealed refrigerant system, not the air from your vents.
Choosing the Right Aftermarket Accumulator

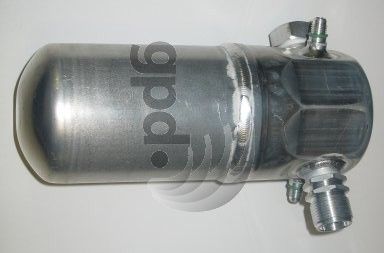

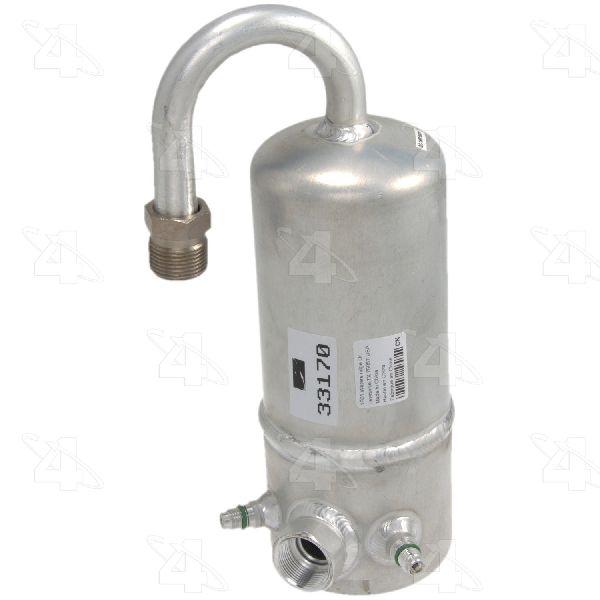

For a vehicle from this era, new Original Equipment Manufacturer (OEM) parts are generally not available. The standard repair involves using new aftermarket parts. Brands like Four Seasons and Global Parts (GPD) are common, reliable choices that meet or exceed original specifications. Forum discussions among owners of similar-era GM trucks show that Four Seasons is a trusted brand for A/C components. The most critical factor for a long-lasting repair is not necessarily the brand, but ensuring the A/C system is serviced correctly.
| Brand | Price Range |
|---|---|
| Four Seasons / Global Parts (GPD) | $33.68 - $55.65 |
Pro Tip: Replace More Than Just the Accumulator
It is a non-negotiable rule in A/C repair to always replace the orifice tube when you replace the accumulator. The orifice tube is a small, inexpensive filter that can become clogged with debris. It's also highly recommended to replace all the rubber O-rings at the line connections to prevent leaks. Failing to replace these items is a primary cause of repeat A/C system failures.
Frequently Asked Questions (FAQ)
Do I have to replace the accumulator if I replace my A/C compressor?
Yes, absolutely. The accumulator must be replaced any time the A/C system is opened for service, especially during a compressor replacement. Opening the system exposes the desiccant to atmospheric moisture, ruining its ability to protect the new components. Not replacing it will void the warranty on your new compressor.
Can I replace the A/C accumulator myself? 🎬 Watch this step-by-step guide on replacing a Chevy A/C accumulator.
While physically unbolting the old accumulator and installing a new one is straightforward for a DIYer, servicing the A/C system requires specialized equipment. The refrigerant must be legally recovered by a certified technician, and the system must be put under a deep vacuum to remove all air and moisture before being recharged with a precise amount of refrigerant and oil. Most owners should have a professional shop perform the evacuation and recharge portion of the job.
Will a new accumulator work with an R134a refrigerant conversion?
Yes. Your G10 originally used R12 refrigerant, but most have been converted to modern R134a. New aftermarket accumulators use a desiccant material (XH-7 or XH-9) that is compatible with both R12 and R134a systems and their corresponding oils.
Are there any recalls or service bulletins for my G10's A/C accumulator?
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not show any specific recalls or bulletins for the A/C accumulator on the 1978-1985 Chevrolet G10. Any issues are typically due to age and normal wear.
Helpful Videos
Technical Specifications
The A/C system in the 1978-1985 Chevrolet G10 is a Cycling Clutch Orifice Tube (CCOT) system. The accumulator is located on the low-pressure side of the system. Aftermarket replacements are compatible with both original R12 and converted R134a refrigerant systems.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
