Choosing the Right Engine Water Pump for Your 1978-1987 GMC Jimmy
Avoid overheating by understanding the common issues and picking the correct replacement water pump for your classic Jimmy.
- The most critical step is to correctly identify if your Jimmy needs a 'short' or 'long' style water pump to ensure belt alignment.
- A coolant leak from the small 'weep hole' under the pump is a definite sign that it needs to be replaced.
- For stock vehicles, a standard pump from Gates, Dayco, or GMB is a reliable choice; for modified engines, consider a high-flow pump from Edelbrock.
- While replacing the pump, it is best practice to also replace the thermostat, radiator hoses, and fan clutch for system reliability.
Is Your Water Pump Failing? Common Symptoms
A failing water pump rarely dies without warning. For your 1978-1987 GMC Jimmy, the signs are usually clear. Ignoring them can lead to catastrophic engine damage from overheating.
- Coolant Leaks: This is the most common sign. You may see puddles of green or orange fluid under the front of your engine. Often, the leak comes from a small 'weep hole' on the bottom of the pump; this hole is designed to leak when the internal seals fail. You might also see dried coolant residue or rust-colored stains on the pump body.
- Engine Overheating: If your temperature gauge is climbing into the red, the water pump may not be circulating coolant effectively. This could be due to a worn-out internal impeller or a major leak.
- Whining or Grinding Noise: A high-pitched whine or a rough grinding sound coming from the front of the engine that changes with RPM is a classic sign of a bad water pump bearing. This means the pump is about to seize.
- Steam from Engine Bay: If you see steam coming from under the hood, pull over immediately. This means coolant has leaked onto hot engine parts and is boiling off, indicating a severe overheating problem.
CRITICAL: Short vs. Long Water Pump Style
The single most important detail when ordering a water pump for your 1978-1987 Jimmy is knowing if you need a 'short' or 'long' style pump. Most trucks in this year range with original V-belt systems use the 'long' style pump. However, engine swaps or modifications are common. Installing the wrong style will cause your accessory belts to be misaligned, preventing the system from working. You can identify which you have by the space between the water pump and the timing chain cover; a long pump has a noticeable gap (you can fit your fingers between them), while a short pump is nearly flush.
Choosing the Right Aftermarket Water Pump
With original OEM parts being scarce, the aftermarket is your go-to source. The brands available offer different levels of performance and price. Aftermarket pumps are often as durable as original parts but more affordable.
Standard Replacement Pumps
These pumps are designed to meet or exceed original factory specifications. They are perfect for a daily driven or stock restoration Jimmy. They offer a great balance of price and reliability.

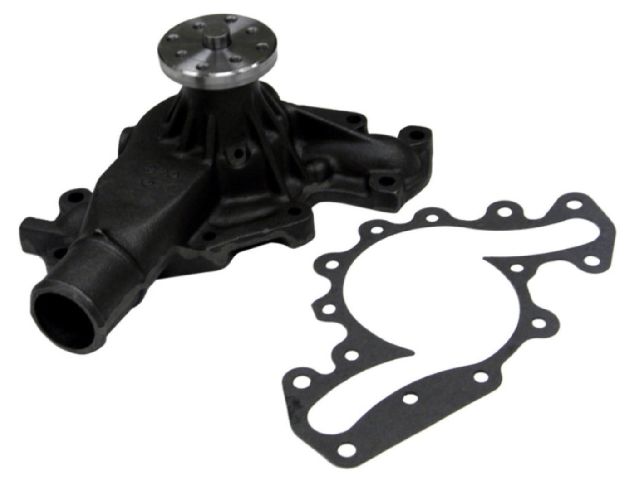

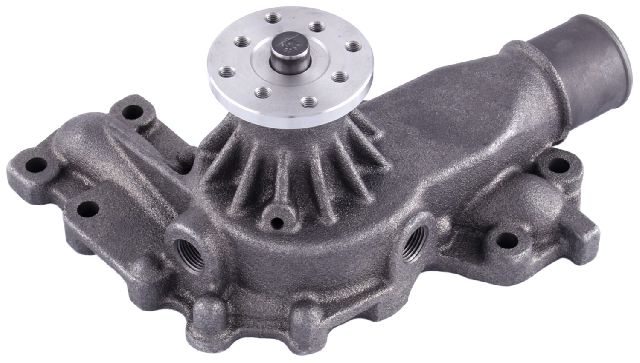

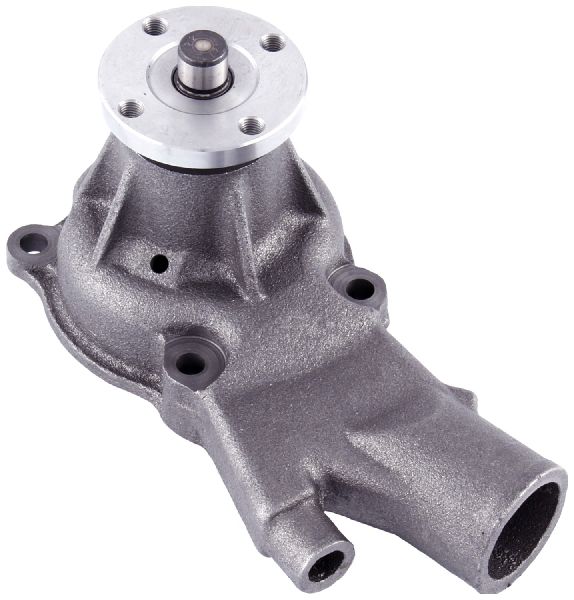

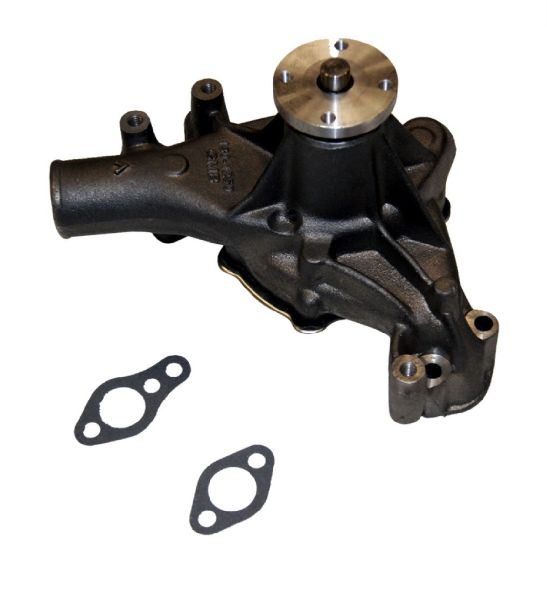

- Gates, Dayco, GMB, US Motor Works: These are well-known aftermarket brands that produce reliable replacement parts. Gates and Dayco are respected names in cooling system components. GMB is often an original equipment supplier to many car companies and is considered a good blend of quality and value.
High-Performance & Heavy-Duty Pumps
If your Jimmy has a modified engine, is used for towing, or you simply want the best cooling possible, a high-performance pump is a worthwhile upgrade. These pumps often feature improved impeller designs and higher quality bearings to flow more coolant, especially at lower RPMs.
- Edelbrock: Widely regarded as a top-tier performance option, Edelbrock pumps are made in the USA and feature advanced impeller and housing designs for superior flow and cooling. Reviews consistently praise their quality and performance, though they are at the higher end of the price range.

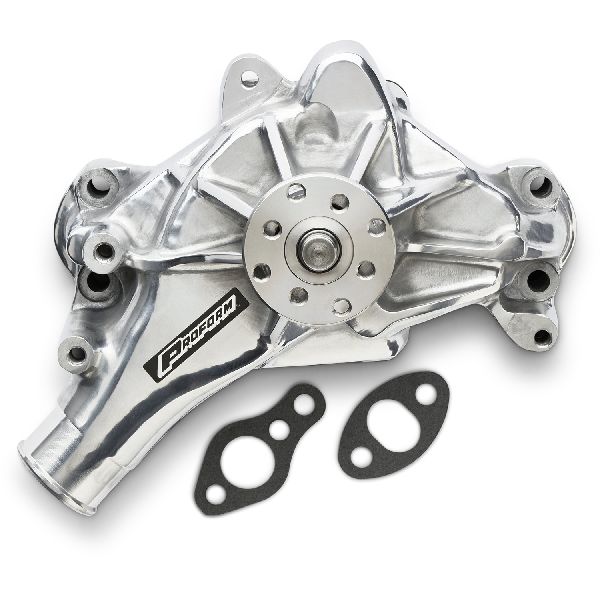

- Frostbite, Proform, PRW: These brands also offer performance-oriented aluminum water pumps that provide improved cooling over stock designs, often at a competitive price point.
Pro Tip: While replacing your water pump, it is highly recommended to also replace the thermostat, radiator hoses, and bypass hose. These components are inexpensive and you already have the cooling system drained. This ensures the entire system is reliable.
Cost to Replace a 1978-1987 GMC Jimmy Water Pump
| Part / Service | Estimated Cost |
|---|---|
| Standard Aftermarket Water Pump | $55 - $120 |
| High-Performance Aftermarket Water Pump | $150 - $280 |
| Shop Labor | $200 - $350 |
| Total (DIY) | $55 - $280 |
| Total (Installed at Shop) | $255 - $630 |
Frequently Asked Questions
Do I need a high-flow water pump?
For a stock engine used for normal driving, a standard replacement pump from a quality brand like Gates or GMB is perfectly adequate. A high-flow pump like an Edelbrock is a good investment if you have a modified engine, tow heavy loads, or live in a very hot climate, as it provides an extra margin of cooling performance.
What is the difference between a standard and reverse rotation pump?
Standard rotation pumps are used with V-belt systems. Reverse rotation pumps are required for most serpentine belt conversions. Unless you have converted your Jimmy to a modern serpentine belt setup, you will need a standard rotation pump.
Should I replace the fan clutch at the same time?
Yes, it's a good idea. The fan clutch is bolted to the water pump hub. If the fan clutch is old, its internal fluid may have degraded, making it less effective. Replacing it while you have everything apart is easy and ensures your cooling fan engages properly.
Is replacing the water pump a DIY job?
Yes, for someone with basic mechanical skills and tools, this is a very manageable DIY job. The water pump is located at the front of the engine and is easily accessible. The process involves draining the coolant, loosening the belts, removing the fan, and unbolting the pump.
Technical Specifications
Primary specifications are the pump style ('short' or 'long') and the rotation direction ('standard' for V-belts or 'reverse' for serpentine belts). Most 1978-1987 models use a long, standard-rotation pump.
