GMC Jimmy Speedometer Cable Replacement Guide (1978-1987)
Fix your bouncing, noisy, or dead speedometer with the right replacement cable for your classic Jimmy.
- Symptoms like a bouncing needle, a dead speedometer, or whining from the dash almost always point to a bad cable in these trucks.
- Choose a standard brand like Pioneer or ATP for a budget-friendly stock replacement, but consider lubricating it before install.
- For modified trucks or maximum durability, a cut-to-fit cable from a brand like Lokar is a superior but more expensive option.
- When installing, you must avoid sharp bends or kinks in the cable housing, as this will cause premature failure or a bouncy needle.
Is Your GMC Jimmy Speedometer Cable Failing?
A faulty speedometer cable is a common issue on classic trucks like the 1978-1987 GMC Jimmy. Because the system is mechanical, failures are usually due to physical wear and tear over decades of use. The inner cable can snap from age, lack of lubrication can cause binding and noise, or the square ends that connect to the transmission and speedometer can round off and slip.
Common Symptoms of a Bad Cable:
- Bouncing Speedometer Needle: The needle jumps around erratically, especially at lower speeds. This is often the first sign of a cable that is binding or starting to fail.
- No Speed Reading: The speedometer needle stays at 0 MPH at all times. This usually means the inner cable has completely snapped or disconnected.
- Squealing or Whining Noises: A dry, unlubricated cable can make a noticeable noise from behind the dashboard that changes with vehicle speed.
Known Issues & Recalls
There are no official recalls or Technical Service Bulletins (TSBs) from the NHTSA for the speedometer cable on the 1978-1987 GMC Jimmy. Failure is typically due to normal age and wear. Some owners report that lower-cost aftermarket cables can cause a bouncy needle even when new, possibly due to slight differences in fitment compared to the original part.
Choosing the Right Aftermarket Speedometer Cable
Since original OEM cables are no longer in production, you will be choosing from aftermarket brands. They generally fall into two categories:
1. Standard OE-Style Replacements
These cables are designed to be direct, pre-sized replacements for the stock cable. They are the most affordable option and are perfect for a stock or daily-driven Jimmy.

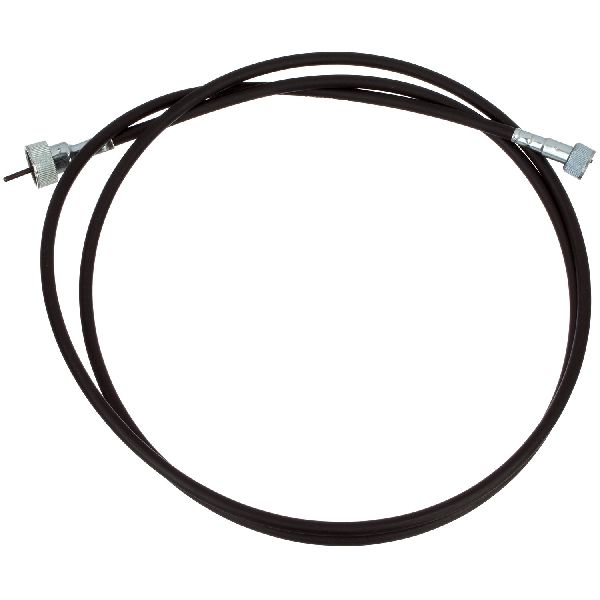

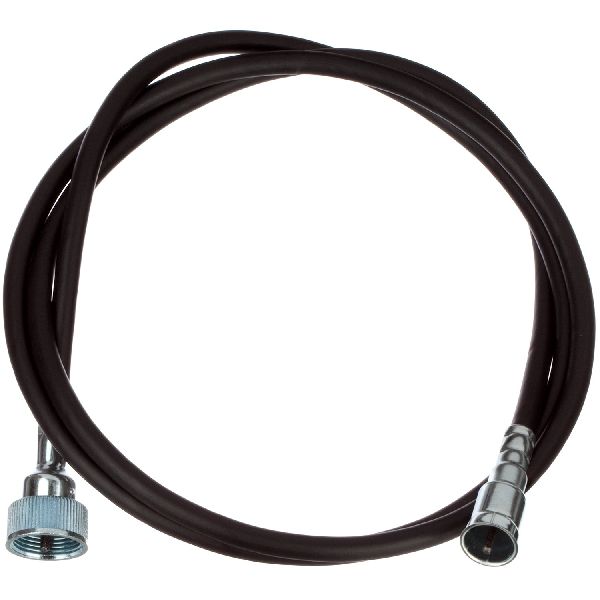

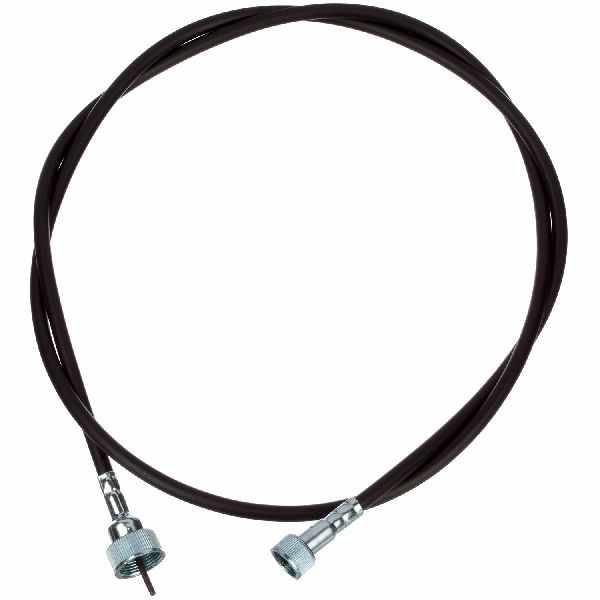

- Brands: Pioneer Cable, ATP
- Pros: Inexpensive, designed for direct fitment without modification.
- Cons: Quality can be inconsistent. Some forum members have reported issues with needle bounce continuing after installing a budget cable. They may not be as durable as premium options.
Pro Tip: Many experienced mechanics recommend pulling the inner cable out of a new standard replacement housing and applying a light layer of white lithium grease or specific cable lube before installation. They often come with minimal lubrication from the factory, and this extra step can ensure smooth operation and a longer life.
2. Performance & Custom Cables
These are high-end cables designed for durability and custom applications. They are a great choice for modified trucks (engine/trans swaps, body lifts) or for owners who want a top-quality, long-lasting part.
- Brands: Lokar, B&M
- Pros: Extremely durable, often with a stainless steel braided housing for extra protection and a custom look. They are typically 'cut-to-fit', allowing you to create the perfect length for your specific vehicle setup.
- Cons: Significantly more expensive. Installation requires you to carefully measure, cut, and assemble the cable ends.
Speedometer Cable Replacement Cost
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $15 - $40 |
| New Aftermarket (Performance) | $120 - $155 |
| Shop Labor | $100 - $250 |
Frequently Asked Questions
Is replacing a speedometer cable a DIY job?
Yes, for most home mechanics, this is a very feasible DIY job. It requires basic hand tools and access to the underside of the truck and the area under the dashboard. The main challenges are reaching the clip on the back of the speedometer and routing the new cable without kinking it.
Why is my speedometer still bouncing with a new cable?
This can happen for a few reasons. First, the new cable might be a lower-quality part that doesn't fit perfectly. Second, the cable may have been kinked or bent too sharply during installation, which prevents the inner core from spinning smoothly. Lastly, the problem might not be the cable itself, but rather a worn plastic drive gear in the transmission/transfer case or an issue within the speedometer head itself.
What does 'cut-to-fit' mean?
Cut-to-fit cables, like those from Lokar, come with a long housing and inner cable that you must trim to the exact length needed for your vehicle. This is ideal for custom trucks where the stock length may not work. These kits include the tools and fittings needed to attach the new ends after cutting.
Do I need to measure my old cable before ordering?
It is highly recommended. While many parts are listed for your specific model, variations in transmissions and the presence of cruise control modules can mean different cable lengths were used. Measuring your old cable housing from end to end is the best way to ensure you order the correct length for a direct-fit replacement.
Technical Specifications
The system is fully mechanical. Common thread sizes are 5/8"-18 at the speedometer head and 7/8"-18 at the transmission. Cable length varies, so measuring the original housing is recommended.
