BMW 528i (1979-1987) Engine Oil Pressure Switch Guide
Understanding the oil pressure warning light on your classic E12 or E28 BMW 528i and how to fix it.
- An illuminated oil pressure light is a critical warning; stop the engine immediately.
- The switch location differs between the E12 (M30 engine) and E28 (M20 engine) models.
- Replacement is a simple DIY task, but always confirm actual oil pressure if you are unsure of the cause.
- Quality aftermarket brands like Standard Ignition are a cost-effective and reliable option for this part.
Is Your BMW 528i Oil Light On? What It Means.
The red oil pressure light on the dashboard of your classic 528i is your engine's most important warning. When this light comes on, it means the oil pressure switch has detected that pressure has dropped to a critically low level. You should safely pull over and shut off the engine immediately to prevent severe damage. While the cause can be a simple faulty switch, it can also indicate a serious mechanical problem.
Common Failure Symptoms
A failing oil pressure switch can be tricky. It might fail completely, or it might work intermittently. Here are the most common signs:
🎬 Watch this guide on common symptoms of a failing sensor.- Oil Light Flickering: The warning light may flicker, especially at idle when oil pressure is naturally lower, or during turns. This can indicate the switch is on the verge of failing or that oil pressure is hovering right at the switch's trigger point.
- Warning Light Stays On: If the switch fails in the 'closed' position, the oil light will stay on constantly, even if the oil pressure is perfectly fine.
- Oil Leaks: The switch itself can develop leaks over time. You might see oil seeping from the switch's body or its electrical connector. This is a common failure mode for these sensors.
Warning: Do Not Ignore the Oil Light
Never assume the oil light is just a faulty switch. Always verify the engine's oil level first. If the level is correct, it's best to have the actual oil pressure tested with a mechanical gauge to rule out a more serious issue like a failing oil pump before driving the vehicle further.

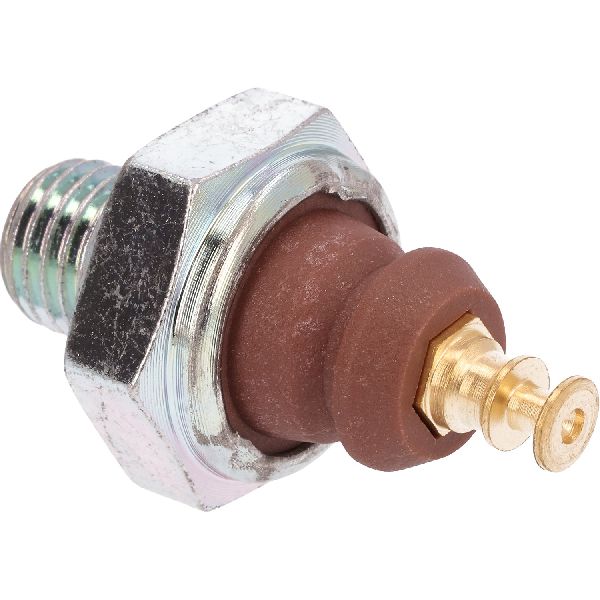

Choosing an Aftermarket Oil Pressure Switch
For a simple component like an oil pressure switch, a quality aftermarket part is often a reliable and cost-effective choice. The technology is not complex, and brands like Standard Ignition (also known as Standard Motor Products or SMP) have a long-standing reputation for producing dependable electronic components. While Genuine BMW parts are always an option, a switch from a reputable aftermarket manufacturer can provide similar performance and longevity for a fraction of the cost on these older vehicles.
Brand Quality: Standard Ignition vs. Global Parts
- Standard Ignition: A well-regarded brand in the aftermarket industry, often considered a reliable alternative to OEM parts.
- Global Parts: This is a more generic brand category. Quality can vary, so it's important to purchase from a supplier with a good warranty and return policy.
Given the low cost of this part, and the critical role it plays, opting for a recognized brand like Standard Ignition over a lesser-known generic brand is a wise investment for peace of mind.
Cost of Replacing a 1979-1987 BMW 528i Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition, etc.) | $11 - $14 |
| New Genuine BMW (OEM) | $25 - $35 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on my 528i?
The location depends on your engine. For the earlier E12 528i (1979-1981) with the M30 engine, the switch is typically located on the back of the cylinder head near the firewall. For the later E28 528e (1982-1987) with the M20 engine, the switch is located on the passenger side of the engine block, just above the oil pan.
🎬 Watch a video demonstration of the sensor's typical location.Can I replace the oil pressure switch myself?
Yes, this is a very feasible DIY job for most home mechanics. 🎬 See how to replace the oil pressure sender yourself. It requires basic hand tools, such as a 24mm wrench or deep socket. The main challenge can be accessing the switch, especially on the M30 engine where it is near the firewall. Be prepared for a small amount of oil to spill when you remove the old switch.
Is there a recall for the oil pressure switch on my BMW 528i?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the engine oil pressure switch on the 1979-1987 BMW 528i.
What is the difference between an oil pressure switch and a sensor?
A switch, like the one in your 528i, is a simple on/off device that only triggers a warning light at a specific low-pressure point. A sensor (or sending unit) provides a variable reading that can drive a pressure gauge on the dashboard, showing the actual pressure in real-time. Your vehicle uses a switch for the warning light.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12618611273 12611710509 12617568480 12612367061 12611730160
Thread Size: M12x1.5
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
