GMC C3500 1979-1987 A/C Accumulator: Replacement Guide & Part Info
Keep your classic Square Body GMC's A/C blowing cold by understanding this critical, but often overlooked, part.
- The A/C accumulator is a mandatory replacement anytime the A/C system is opened for service.
- Always replace the orifice tube at the same time as the accumulator; it's cheap insurance.
- Aftermarket brands like Four Seasons, Global Parts, or Spectra are the standard choice for this part on a classic truck.
- Proper A/C service requires specialized tools for evacuation and recharging; this is not a simple bolt-off, bolt-on job for most DIYers.
Is Your Truck's A/C Not as Cold as It Used to Be?
If the air conditioning in your 1979-1987 GMC C3500 isn't performing well, a failing A/C accumulator could be part of the problem. For these classic trucks, the A/C system is relatively simple, but every component needs to work correctly. The accumulator is a part that must be replaced any time the A/C system is opened for service, such as when replacing a compressor or fixing a leak. Because it contains a desiccant material that absorbs moisture, leaving it exposed to the atmosphere for even a short time will ruin it.
Symptoms of a Bad A/C Accumulator
A failing accumulator can show several signs. Keep an eye out for these issues:
- Poor Cooling Performance: If the desiccant bag breaks down, it can clog the orifice tube, leading to weak cooling. A leaking accumulator will also reduce performance.
- Refrigerant Leaks: The accumulator body can rust and develop pinhole leaks over time. You might see oily residue or dye (if added) on the accumulator itself.
- Rattling Noises: If the desiccant material has broken apart, you might hear rattling from the accumulator as the pieces are tossed around by the refrigerant flow.
- Moldy Smell: While a moldy smell usually points to the evaporator core, an accumulator that is saturated with moisture can contribute to an unhealthy environment within the A/C system.
Choosing the Right Aftermarket Accumulator
For a vehicle from this era, finding a new OEM (Original Equipment Manufacturer) accumulator is highly unlikely. The aftermarket is your primary source, and for a part like this, it's perfectly acceptable. The key is choosing a reputable brand that ensures proper fit and function.

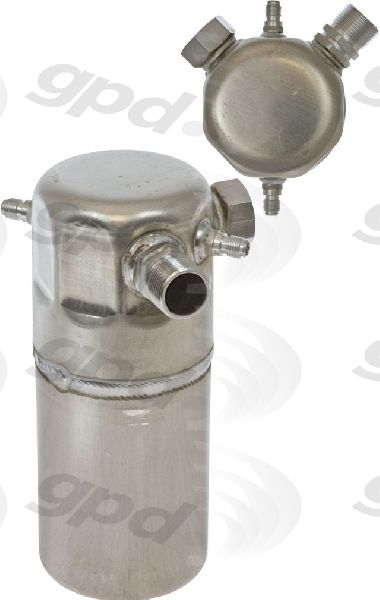

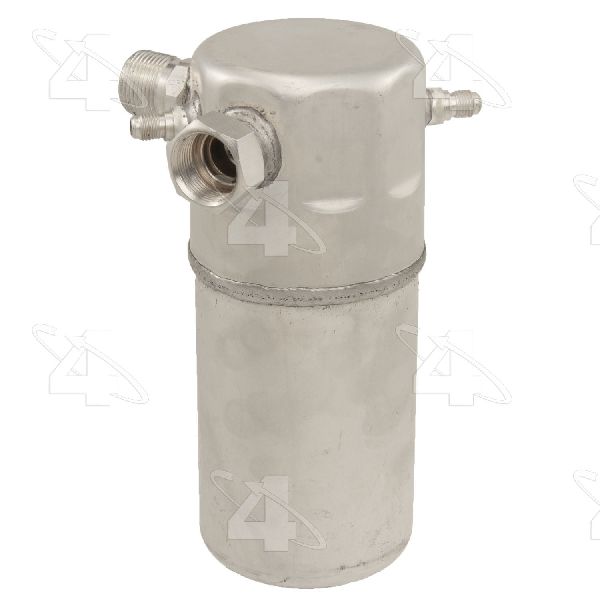

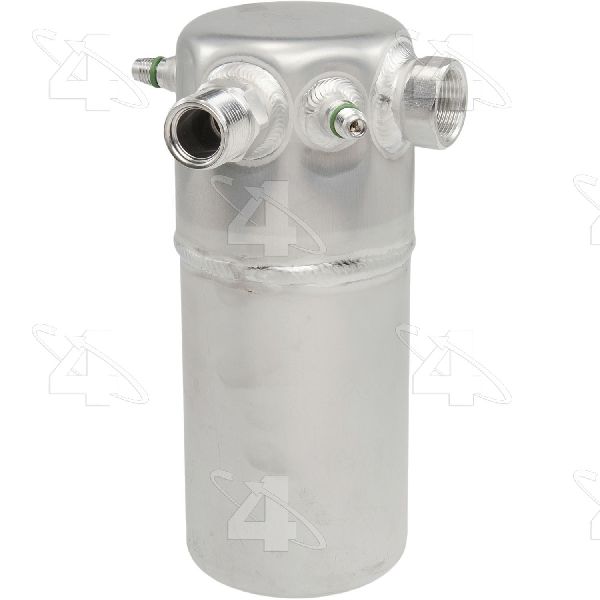

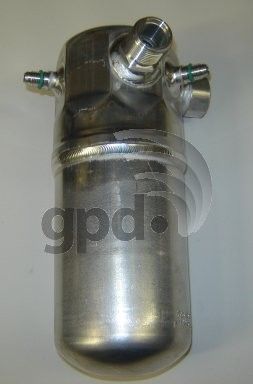

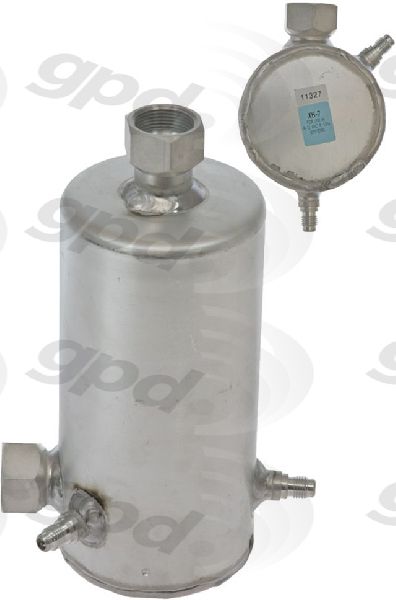

The brands available—Four Seasons, Global Parts, and Spectra—are all well-known in the aftermarket A/C world. Forum discussions among classic truck owners show that Four Seasons is a commonly used brand with generally positive results. Spectra is often considered to be of similar quality. Given the low cost of the part, the priority should be on getting a new unit from a recognized brand rather than trying to find a used or obscure one. The most important factor is that the part is new and sealed until the moment of installation.
Aftermarket A/C Accumulator Cost (1979-1987 GMC C3500)
| Part Type | Price Range |
|---|---|
| New Aftermarket Accumulator | $16.13 - $45.18 |
Pro Tip: Always replace the orifice tube when you replace the accumulator. It's an inexpensive part (usually just a few dollars) and it acts as a filter that can become clogged with debris from an old compressor or a ruptured desiccant bag. Replacing both at the same time is cheap insurance for your new A/C components.
Frequently Asked Questions
Do I have to replace the accumulator if I replace my A/C compressor?
Yes, absolutely. Most compressor warranties require the replacement of the accumulator and orifice tube. A failed compressor often sends metal debris through the system, which gets trapped by the accumulator and orifice tube. Not replacing them will cause this debris to circulate and destroy your new compressor almost immediately.
Can I replace the A/C accumulator myself?
Physically swapping the part is straightforward for a DIY mechanic. However, the A/C system must be legally and safely evacuated of refrigerant before opening it, and then properly vacuumed and recharged after the new part is installed. This requires specialized and expensive equipment like a refrigerant recovery machine, vacuum pump, and manifold gauges. For most owners, it's best to have a certified shop perform the final evacuation and recharge.
What is desiccant and why is it important?
Desiccant is a material that absorbs and holds moisture, similar to the silica gel packets found in new products. In an A/C accumulator, it's typically in a fabric bag. Its job is to remove any water from the refrigerant. Moisture is the enemy of an A/C system; it can freeze and block the orifice tube or mix with refrigerant to form corrosive acids that eat away at metal components from the inside.
My truck was originally R-12. Does that matter?
Yes. If your truck has been converted to R134a refrigerant, you need to ensure you use the correct type of oil (PAG oil for R134a vs. mineral oil for R-12). Most new accumulators are compatible with both refrigerants, but you must add the correct type and amount of oil for your system. If you are unsure, consult a professional mechanic.
Technical Specifications
The A/C system on a 1979-1987 GMC C3500 is a cycling clutch orifice tube (CCOT) system. The accumulator is located on the low-pressure side, between the evaporator outlet and the compressor inlet. It is typically mounted on or near the firewall on the passenger side of the engine bay.
