Guide to Front Disc Brake Calipers for 1979-1987 GMC K1500 Trucks
If your classic square body K1500 isn't stopping straight or feels spongy, your front brake calipers could be the problem.
- The most common caliper problem on these trucks is sticking or seizing due to corrosion.
- You must verify if your truck has 1-inch or 1.25-inch thick front rotors before ordering, as the calipers are different.
- Always replace front calipers in pairs to ensure safe, balanced braking.
- When replacing calipers, it is strongly recommended to also replace the flexible brake hoses and bleed the system with fresh fluid.
Is Your GMC K1500's Brake Caliper Failing?
The cast iron calipers on these classic GMC trucks are tough, but they don't last forever. The most common issue is a seized or sticking caliper. This happens when the caliper piston or the slide pins get corroded from age, moisture, and dirt, and can no longer move freely. A sticking caliper can cause the brake on one side to drag, leading to the truck pulling to one side, a burning smell, and rapid, uneven brake pad wear.
Choosing the Right Aftermarket Caliper
For a vehicle from this era, aftermarket calipers are the most common and practical choice. Original OEM parts are likely discontinued, and the quality of modern aftermarket parts is often very good. Most available calipers are "remanufactured," meaning an original caliper core has been cleaned, inspected, and rebuilt with new seals, boots, and often a new piston. Some brands also offer completely new castings. For a simple, single-piston caliper like the one on your K1500, a quality remanufactured unit from a reputable brand is a safe and cost-effective choice.
Aftermarket Brand Tiers
| Tier | Brands | Description |
|---|---|---|
| Premium / Coated | Raybestos (Element3), Dynamic Friction (DFC) | These brands often offer calipers with special coatings (like zinc plating or powder coating) that provide excellent corrosion resistance. This is a great feature for longevity, especially if your truck is exposed to road salt or high humidity. They are considered reliable choices by many mechanics. |
| Standard / Value | Cardone (A1 Cardone), BBB Industries | These brands are widely available and offer a budget-friendly price point. They are remanufacturers who rebuild original cores. Quality can sometimes be inconsistent, with forum users reporting occasional issues like torn boots or reused components, but many have used them with acceptable results. They often represent a good value for a daily driver. |
Check Your Rotor Thickness!
GMC trucks in this generation could come with two different front rotor thicknesses: 1 inch or 1.25 inches (for heavy-duty brake options). The caliper itself is different for each rotor thickness. Before ordering, you must measure your rotor or verify your truck's original brake package to ensure you get the correct caliper.
Frequently Asked Questions (FAQ)
Do I have to replace both front calipers at the same time?
Yes. It is critical to replace calipers in pairs on the same axle (both front left and front right). A new caliper will respond differently than an old, worn one, which can cause dangerously unbalanced braking and make the truck pull to one side.
What is a "core charge"?
Because most calipers for your K1500 are remanufactured, the manufacturer needs your old, worn-out caliper back to rebuild it. The core charge is a temporary deposit you pay when you buy the part. When you return the old caliper (the "core") to the seller, the deposit is refunded to you.
Should I get a caliper with or without the bracket?
Most calipers for this truck are available "semi-loaded," which means they come with the mounting bracket and new hardware but no brake pads. It's a good idea to get the caliper with the bracket, as the areas where the pads slide can become rusted and prevent smooth operation.
What else should I replace with my calipers?
When replacing calipers, it is the perfect time to install new brake pads and new flexible brake hoses. Old rubber hoses can degrade from the inside, swell, and trap fluid, causing the caliper to stick. Also, consider replacing your brake rotors if they are worn, grooved, or warped. Finally, you will need fresh DOT 3 brake fluid to bleed the system.
Technical Specifications

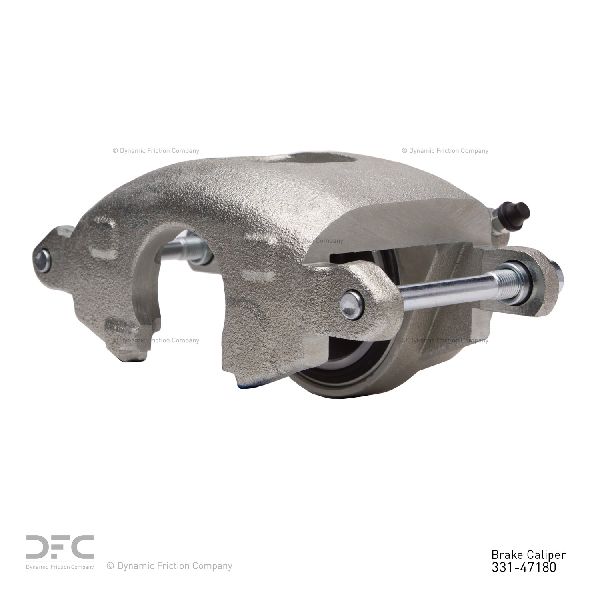

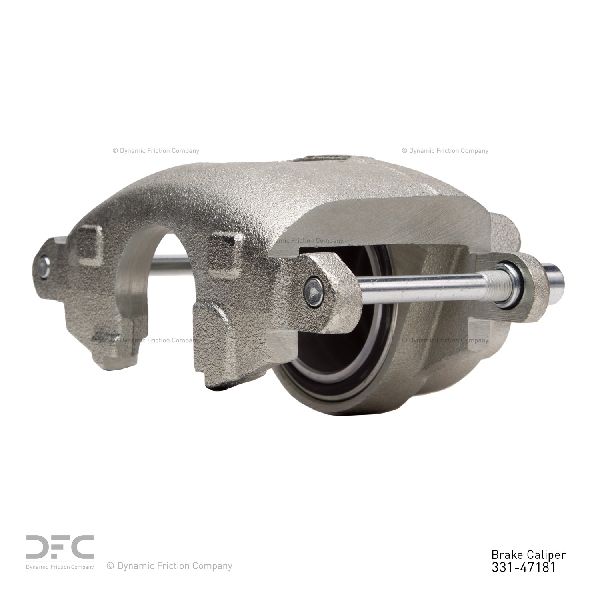

The 1979-1987 GMC K1500 uses a cast iron, single-piston, floating front disc brake caliper. It is critical to identify whether your truck is equipped with the standard 1-inch thick rotors or the heavy-duty (HD) 1.25-inch thick rotors, as this determines the correct caliper to purchase.
