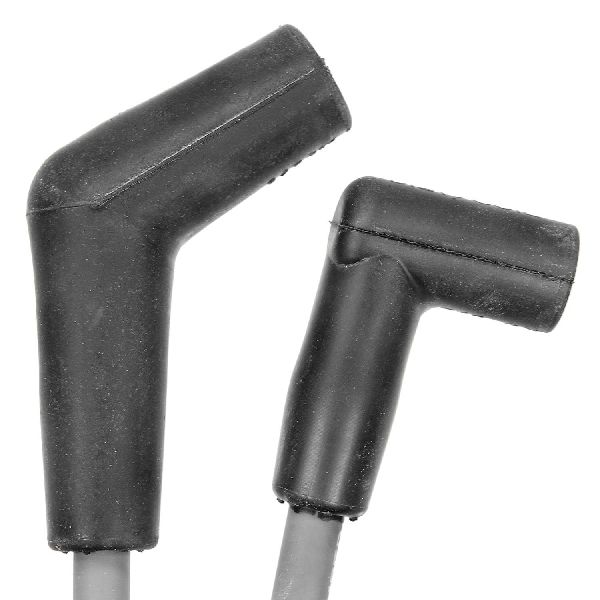

Choosing the Right Spark Plug Wire Set for Your 1979-1987 Mercury Capri
Fix nagging misfires and restore lost power by selecting the perfect spark plug wire set for your Capri's specific engine.
- You must buy a wire set specifically for your Capri's engine (e.g., 2.3L 4-cylinder or 5.0L V8).
- For 5.0L V8 engines, choose a high-temperature wire set from a brand like MSD or Taylor to prevent heat damage from the exhaust.
- Always replace wires one at a time to ensure the firing order remains correct.
- Applying dielectric grease inside the boots is essential for sealing out moisture and making future service easier.
Is It Time for New Spark Plug Wires?
Over time, the insulation on your spark plug wires breaks down from heat and age. This can cause the electrical energy to leak out, resulting in a weak spark or no spark at all. The signs of failing spark plug wires are often subtle at first but will worsen over time.
Common Symptoms of Bad Wires
- Rough Idle: Your engine may shake or run unevenly when stopped.
- Engine Hesitation: The car may stumble or lag when you press the gas pedal.
- Misfires: You might feel a jerking or stumbling sensation while driving as a cylinder fails to fire properly.
- Poor Fuel Economy: When your engine isn't running efficiently, it uses more fuel.
- Visible Damage: You may see cracks, burns, or corrosion on the wires and their boots.
A Common Problem for 5.0L V8 Capri Owners
If you have a Capri with the 5.0L V8 engine, your spark plug wires face a major enemy: heat. The exhaust manifolds and headers get extremely hot and can cook the wires, especially those for the cylinders closest to the firewall. This heat damage is a very common cause of misfires on these engines. When choosing a new set, it is highly recommended to select wires with high-temperature silicone boots and jackets to resist this heat damage. Some owners even add special heat-shielding sleeves for extra protection.
Choosing the Right Aftermarket Wires
Since your Capri is a classic, finding original Ford-branded parts can be difficult. The good news is that the aftermarket offers a wide range of excellent options. They can be grouped into three main tiers.
Brand Tiers for Your Capri
- OE-Style Replacements (Good): Brands like Motorcraft, NGK, and Denso provide reliable, factory-style wires. These are perfect for a stock, daily-driven Capri. They are designed to meet or exceed the original specifications for fit and function.
- Street Performance (Better): Brands like Ford Performance and Taylor Cable offer an upgrade over stock. They typically feature thicker 8.5mm to 9mm wires with lower electrical resistance and better heat protection. These are a great choice for V8 models or lightly modified cars.
- High-Performance (Best): For modified engines or owners who want the most durability, brands like MSD and Granatelli are top choices. Their wires, like the popular MSD 8.5mm Super Conductor series, have extremely low resistance and superior heat-resistant materials, making them ideal for engines with headers or other performance upgrades.
| Quality Tier | Common Brands | Estimated Price Range |
|---|---|---|
| OE-Style | Motorcraft, NGK, Denso, Standard | $35 - $70 |
| Street Performance | Ford Performance, Taylor Cable, Accel | $60 - $120 |
| High-Performance | MSD, Granatelli | $100 - $197 |
Frequently Asked Questions
Do I need special tools to change my spark plug wires?
No special tools are required. A set of spark plug wire pullers can be helpful to avoid damaging the boots, but often you can remove them by hand. The most important thing is to replace the wires one at a time to avoid mixing up the firing order.
What is dielectric grease and should I use it?
Yes. Dielectric grease is a non-conductive, silicone-based grease that you should apply to the inside of the spark plug wire boots. It helps seal out moisture, prevents corrosion, and makes it much easier to remove the wires in the future. It also helps prevent the boot from getting stuck to the spark plug.
What's the difference between 8mm and 8.5mm wires?
The measurement refers to the diameter of the wire. A thicker wire, like 8.5mm or 9mm, has more insulation to prevent voltage leaks and offers better protection against heat and abrasion compared to a standard 7mm or 8mm wire. Performance wires are often thicker and have a different internal core to lower electrical resistance.
Should I replace my distributor cap and rotor at the same time?
Yes, it is highly recommended. The distributor cap and rotor are also key parts of your ignition system that wear out over time. Replacing the cap, rotor, and wires all at once is a standard tune-up procedure that ensures your ignition system is in top condition.
Technical Specifications
Key specifications vary by engine. For the 5.0L V8, the firing order is 1-3-7-2-6-5-4-8. Aftermarket wires are available in diameters from 7mm to over 10mm, with 8mm-8.5mm being a common upgrade. Core materials include carbon, ferromagnetic, and spiral wound, with spiral wound offering a good balance of performance and radio noise suppression.
