Guide to the Distributor Ignition Pickup for 1979-1989 GMC G3500 Vans
Solve frustrating no-start, stalling, and misfire issues by understanding and replacing this critical ignition part in your G-series van.
- A failing pickup coil is a common cause of intermittent stalling and no-start issues in 1979-1989 G3500s.
- Replacement requires removing and disassembling the distributor, and you must re-time the engine afterward.
- Test the coil with a multimeter; resistance should be between 500-1500 ohms.
- For reliability, choose a quality brand like Delphi or Standard Ignition, and consider replacing the ignition module at the same time.
Is Your G3500's Ignition Pickup Failing?
A failing distributor pickup coil in the GM HEI system is a common cause of ignition problems that can be tricky to diagnose because they are often intermittent. The symptoms can easily be confused with a bad ignition control module or ignition coil, which are also housed within the distributor. The wires on the pickup coil flex every time the vacuum advance moves, and after decades of heat and vibration, they can break internally. This leads to a signal that cuts in and out.
Key Symptoms:
- Engine stalls and won't restart: The engine may run fine, then stall unexpectedly. After cooling down for a period, it might start and run perfectly again. This heat-related failure is very common.
- No-start condition: The engine cranks over strongly but never fires up because there is no spark.
- Engine misfires or hesitates: You might feel a stumble or hesitation during acceleration as the ignition signal momentarily cuts out.
- Rough idle: An inconsistent signal from the pickup can cause a rough or unstable idle.
Known Issues & Diagnostics

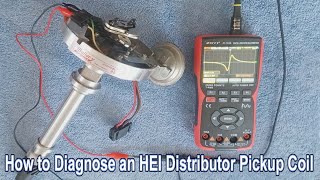

For this generation of GM vans, intermittent no-spark conditions are frequently traced back to either the ignition control module or the pickup coil inside the distributor. You can test the pickup coil with a multimeter set to ohms. Disconnect its two-wire plug from the module and measure the resistance between the two terminals. It should typically read between 500 and 1500 ohms. Wiggling the wires while testing can help reveal an internal break. 🎬 Watch this video to learn how to diagnose a pickup coil. A reading of infinite resistance (open) or a value outside the specified range means the coil is bad and needs replacement.
Choosing the Right Aftermarket Pickup Coil
For a vehicle from the 1979-1989 model years, new OEM parts from GM are generally no longer available. The aftermarket is your primary source. The good news is that brands like Delphi and Standard Ignition offer quality replacements.
Brand Tiers for Your G3500
- Premium OE-Style (Delphi): Delphi was a major original equipment (OE) supplier for General Motors. Choosing a Delphi pickup coil is often the closest you can get to the original part's quality and specifications. They are engineered to resist heat and vibration, which are the primary causes of failure 🎬 Learn more about the technology behind Delphi ignition components. in this component. For a work van or a vehicle you depend on daily, spending a little more on a Delphi part is a wise investment in reliability.
- Standard Replacement (Standard Ignition): Standard Motor Products (SMP), the parent company of the Standard Ignition brand, is a long-standing and respected aftermarket manufacturer. Their parts are designed to meet or exceed original specifications and offer a reliable, cost-effective solution. For general use, a Standard pickup coil is a solid choice that balances quality and price.
Pro Tip: While you have the distributor disassembled to replace the pickup coil, it is highly recommended to also replace the ignition control module. These two components live in the same harsh environment and often fail around the same time. Replacing both at once can save you from having to do the job again in the near future.
Cost of Replacing a Distributor Ignition Pickup
| Part Type | Typical Cost Range |
|---|---|
| New Aftermarket | $28.95 - $77.02 |
| Shop Labor | $150 - $250 |
Note: Costs are estimates and can vary based on your location and the specific repair shop. The job requires removing and disassembling the distributor.
Frequently Asked Questions (FAQ)
Do I have to remove the distributor to replace the pickup coil?
Yes. The ignition pickup coil is located deep inside the distributor housing. You must remove the distributor from the engine, then disassemble it on a workbench by removing the gear, washers, and shaft to access and replace the coil.
🎬 See a step-by-step guide on how to install a pickup coil.Will I need to set the ignition timing after replacement?
Yes, absolutely. Because the distributor must be removed to perform the replacement, you will need to reinstall it and then set the ignition timing with a timing light. Failure to set the timing correctly can lead to poor performance, bad fuel economy, and potential engine damage.
What's the difference between a pickup coil and an ignition coil?
They are two different parts. The pickup coil is a sensor inside the distributor that generates a trigger signal. The ignition coil (which on many HEI systems is in the distributor cap) is a transformer that takes that signal (via the ignition module) and converts the battery's 12 volts into the 40,000+ volts needed to create a spark.
Is a remanufactured distributor a better option?
It can be. A complete remanufactured distributor will come with a new pickup coil, ignition module, cap, and rotor already installed. It also addresses potential issues with worn shaft bushings. If your distributor shaft has excessive side-to-side play, or if you prefer a simpler drop-in replacement without the need for disassembly, a complete remanufactured unit is an excellent choice.

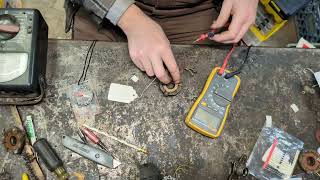

Helpful Videos
Technical Specifications
This is a magnetic pulse generator located inside the HEI distributor. It sends an AC voltage signal to the ignition control module. Resistance specification is typically 500-1500 Ohms.
