Choosing the Right Spark Plug Wire Set for Your 1979-1992 Mazda 626
Solve common issues like rough idling and misfires by selecting the correct new aftermarket spark plug wire set for your classic 626.
- Verify fitment for your exact year and engine, as sets are not interchangeable across the 1979-1992 range.
- Before installing new wires, inspect the spark plug wells for oil, which indicates a common valve cover gasket leak that must be fixed first.
- For best results and reliability, choose an OEM-quality brand like NGK or Denso.
- Always replace wires one at a time to maintain the correct firing order and prevent starting issues.
Is Your Mazda 626 Running Rough? It Could Be the Spark Plug Wires.
If your 1979-1992 Mazda 626 is experiencing symptoms like a shaky idle, hesitation when you accelerate, or it's just hard to start, old spark plug wires are a likely culprit. Over time, the insulation on these wires breaks down from engine heat and vibration, allowing the electrical energy to leak out before it reaches the spark plug. This results in a weak or inconsistent spark, causing misfires and poor engine performance. Many owners report that these problems are more noticeable once the engine has warmed up.
Check for Oil Leaks First!
A very common issue on older Mazda 626 models is a leaking valve cover gasket. This allows engine oil to seep down into the spark plug wells, soaking the ends of the wires. This oil contamination will quickly destroy a new set of wires and cause persistent misfires. Before replacing your wires, pull one out and check for oil on the boot or down in the tube. If you see oil, you must replace the valve cover gasket set first.
Choosing the Right Aftermarket Spark Plug Wires
For a vehicle like the 1979-1992 626, original Mazda (OEM) wires are often discontinued or very difficult to find. Fortunately, high-quality aftermarket brands provide excellent performance and reliability. It is critical to buy a set that is listed for your specific year and engine, as the wire lengths and boot styles changed across the CB, GC, and GD generations.
Tier 1: OEM-Quality Replacements

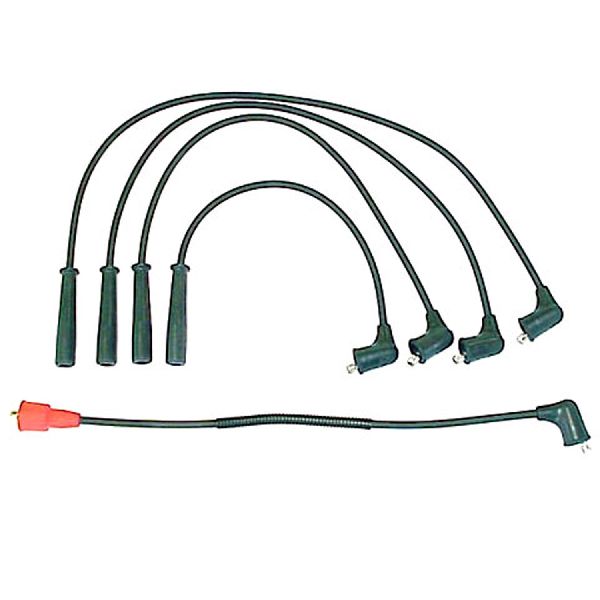

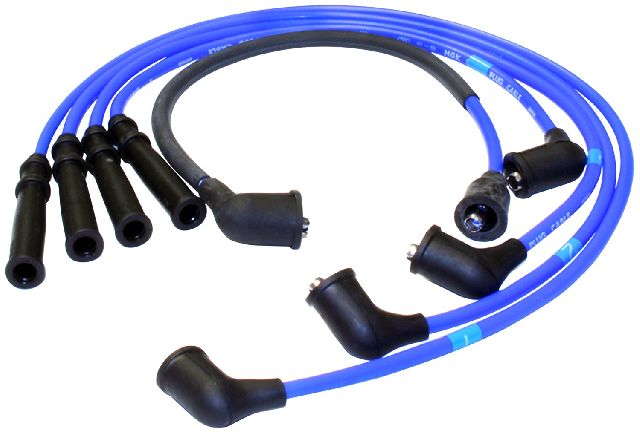

NGK & Denso: These Japanese brands were often the original equipment suppliers for Mazda. Choosing an NGK or Denso wire set is the safest bet for factory-like fit, performance, and longevity. They are engineered to meet the specific resistance and noise suppression requirements of your 626's ignition system.
Tier 2: Quality Aftermarket Alternatives

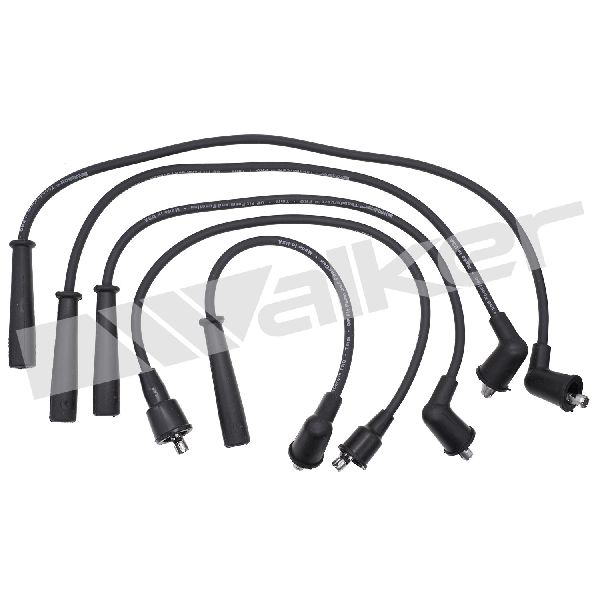

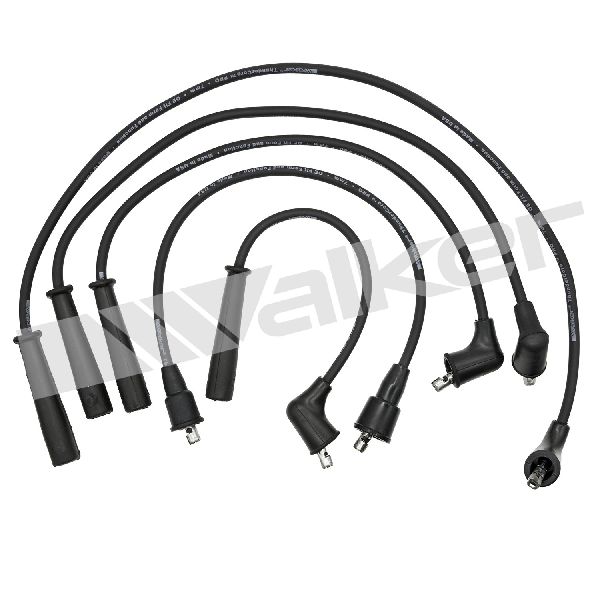

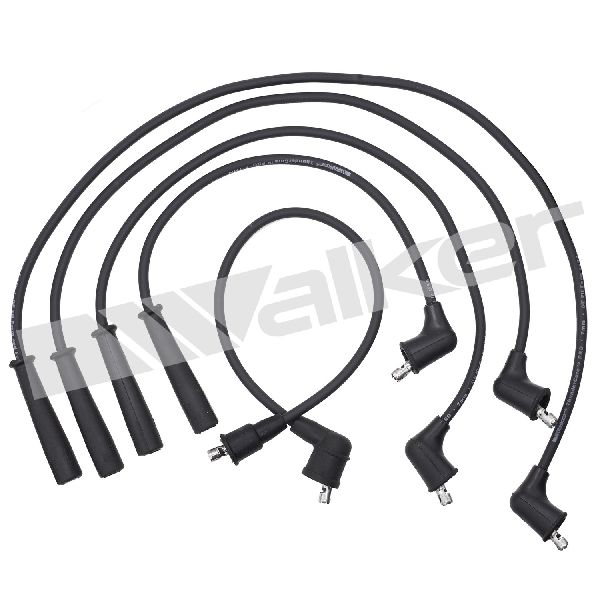

Standard Wires (Standard Motor Products) & Walker Products: These are well-regarded aftermarket brands that offer a good balance of quality and value. They produce reliable wire sets that meet or exceed factory specifications, often featuring durable silicone jackets and strong core materials to resist heat and vibration. They are a solid choice for a daily driver.
Tier 3: Performance Wires
Granatelli: Brands like Granatelli market low-resistance or "zero-ohm" wires for maximum spark energy. While effective in highly modified, racing engines, they are generally unnecessary and not cost-effective for a stock Mazda 626. Sticking with an OEM-quality set like NGK or Denso will provide the reliable performance your car was designed for.
Pro Tip: Replace One Wire at a Time
To avoid mixing up the engine's firing order, always replace your spark plug wires one by one. Remove one old wire, match its length to a new wire from the box, apply a small amount of the included dielectric grease to the inside of the new boots, and install it completely before moving to the next one.
Cost of a New Spark Plug Wire Set (1979-1992 Mazda 626)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $22.22 - $57.56 |
| Shop Labor for Installation | $50 - $100 |
Frequently Asked Questions
Why is my engine misfiring more when it's warm or humid?
Heat increases electrical resistance, so cracks or weak spots in old wire insulation become more pronounced as the engine warms up, leading to spark loss and misfires. High humidity can also make it easier for electricity to arc from the wires to grounded metal parts of the engine.
Do I need to replace my spark plugs at the same time?
It is highly recommended. Worn spark plugs require more voltage to create a spark, which puts extra strain on the new wires and the ignition coil. Replacing the plugs and wires together is a standard tune-up procedure that ensures the entire ignition system is healthy.
What is dielectric grease and why should I use it?
Dielectric grease is a non-conductive, silicone-based grease that you apply to the inside of the spark plug wire boots. It helps seal out moisture and prevents the boots from getting stuck to the spark plugs or distributor cap, making future removal much easier. Most quality wire sets include a small packet.
How do I make sure I'm buying the right set for my car?
The 1979-1992 model years cover three different generations of the Mazda 626 with different engines. Always use the year, model, and engine size (e.g., 2.0L 4-Cylinder, 2.2L 4-Cylinder) when purchasing a set to guarantee the correct wire lengths and connection types for your specific vehicle.
Technical Specifications
OEM Part Numbers: Varies significantly by year and engine. Confirm with a dealer or specialist using your VIN.
Spark plug wire sets for the 1979-1992 Mazda 626 are specific to the engine and model year. They consist of a set of wires (typically 4 or 6, plus a coil wire) with pre-attached boots for the spark plugs and the distributor cap. Resistance values and materials vary by manufacturer, but quality sets use silicone jacketing to resist high temperatures.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
