A/C Expansion Valve Guide for the 1979-1995 Mazda RX-7
Keep your rotary's cabin cool by understanding this critical A/C component and how to replace it.
- A failing expansion valve typically causes warm air, intermittent cooling, or frost on A/C components.
- For best results, choose a Denso brand valve, as they are a known OEM supplier for Mazda.
- Always replace the receiver/drier and use new O-rings when replacing the expansion valve to prevent future problems.
- The A/C system must be professionally evacuated before starting this repair and recharged after.
- FD (93-95) RX-7s have two different A/C systems (Denso and MANA); ensure you buy the correct valve for your car.
Understanding A/C Expansion Valve Failure in Your RX-7
The A/C expansion valve in your 1979-1995 Mazda RX-7 is a metering device that controls refrigerant flow. Over time, it can fail due to internal wear, contamination from debris in the A/C system, or moisture. When it fails, it can get stuck open or closed, leading to a variety of cooling problems. A valve stuck closed will starve the evaporator of refrigerant, resulting in warm air from the vents. A valve stuck open can allow too much refrigerant into the evaporator, which can cause it to flood and potentially freeze over.
Symptoms of a Failing Expansion Valve
- Warm or Fluctuating Air Temperature: The most common symptom is an A/C system that blows warm air or cycles between cool and warm. This happens when the valve isn't letting the right amount of refrigerant through.
- Frost on Vents or A/C Components: If you see frost or ice on your A/C vents or on the A/C lines under the hood, it could mean the expansion valve is stuck open, causing excessive cooling in one spot.
- Hissing Sound from the Dash: A hissing noise from behind the glove box area can indicate the expansion valve is having problems as refrigerant passes through it.
Refrigerant Handling Warning
Your RX-7's A/C system contains high-pressure refrigerant (either R12 or a converted R134a system) which is hazardous. Before replacing the expansion valve, the system must be professionally and legally evacuated using specialized equipment. Releasing refrigerant into the atmosphere is illegal and harmful to the environment. Always wear safety glasses and gloves when working near A/C components.
Choosing the Right Aftermarket Expansion Valve

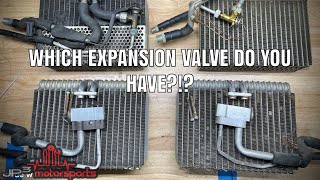

For a classic vehicle like the RX-7, aftermarket parts are the most common and affordable solution. The quality can vary, so it's important to choose a reputable brand. It's also critical to know which A/C system your FD RX-7 has (Denso or MANA), as they use different expansion valves. 🎬 Watch a comparison of Denso and MANA evaporator and valve setups. Many owners also take this opportunity to replace the receiver/drier and use new O-rings compatible with their refrigerant type (R12 or R134a).
| Brand | Tier & Quality Assessment | Notes |
|---|---|---|
| Denso | Tier 1 (OEM Supplier) | Denso is a well-regarded OEM supplier for many Japanese vehicles, including Mazda. Choosing a Denso valve is the closest you can get to original factory quality. They are known for reliability and correct calibration. Many RX-7 specialists recommend and sell Denso valves, especially for FD models. |

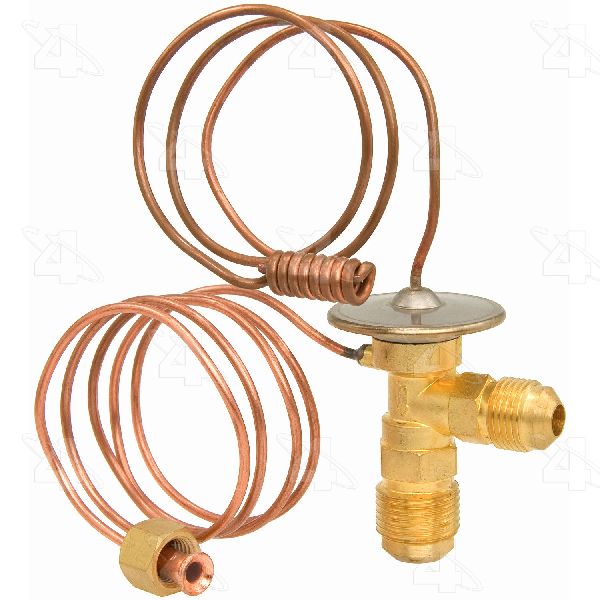

| Four Seasons | Tier 2 (Reputable Aftermarket) | Four Seasons is a major player in the aftermarket A/C world. They offer a wide range of parts for all RX-7 generations. While generally considered a solid choice, some mechanics have reported mixed experiences compared to Denso. It's a good, widely available option. |
| Global Parts (GPD) / UAC | Tier 3 (Value-Oriented) | Brands like GPD and UAC (Universal Air Conditioner) offer budget-friendly options. They often come in complete kits, which can be convenient. While functional, they may not have the same longevity or precise calibration as a Denso part. Some users have reported premature failures with these brands. |
Pro Tip: Replace More Than Just the Valve
Whenever you open the A/C system to replace the expansion valve, you should always replace the receiver/drier (also called an accumulator). The drier contains desiccant that absorbs moisture, and it's only effective for a short time once exposed to air. Skipping this step can lead to premature failure of your new parts.
Frequently Asked Questions (FAQ)
Where is the expansion valve located on a Mazda RX-7?
The expansion valve is located on the passenger side of the vehicle, at the firewall where the A/C lines enter the cabin to connect to the evaporator core. To access it, you typically need to remove the glove box and the evaporator housing.

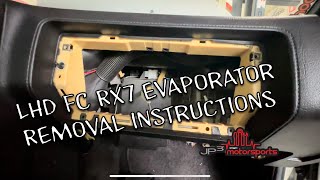

🎬 See a step-by-step guide to removing the FC evaporator and valve.Is replacing the RX-7 expansion valve a DIY job?

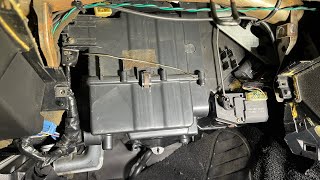

It can be, but it's an advanced job. The most difficult parts are safely evacuating and recharging the A/C system, which requires special equipment. The replacement itself involves removing the glove box and evaporator case, which can be time-consuming. For FD models (93-95), removing the passenger airbag may also be necessary. 🎬 Learn how to remove the FD evaporator without pulling the dash. If you are not comfortable with this, it's best left to a professional.
Do I need a special expansion valve for an R134a conversion?
Yes, it is highly recommended. Expansion valves are calibrated for a specific refrigerant. While an R12 valve might work with R134a, using a valve specifically designed for R134a will provide better cooling performance. Many aftermarket kits are calibrated for R134a.
Are there any recalls for the RX-7 A/C system?
No, there are no specific recalls for the A/C expansion valve on the 1979-1995 Mazda RX-7. There was a Technical Service Bulletin (TSB) for many Mazda models regarding a musty odor from the vents caused by mold on the evaporator, but this is not directly related to expansion valve failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: FB01-61-520 FD01-61-520 H110-61-520
Block-type valve with either flare or o-ring fittings depending on generation (FB, FC, FD) and specific system (Denso/MANA for FD). Must be compatible with refrigerant type (R12 or R134a).
