GMC G3500 Windshield Washer Pump Replacement Guide (1979-1996)
A clear windshield is critical, and a failed washer pump on your GMC G3500 van is a problem you can solve yourself in minutes.
- This is a very simple DIY repair that usually takes less than 15 minutes with no special tools.
- For this vehicle, a new aftermarket pump is the standard, cost-effective solution.
- Always test for 12V power at the pump's connector before replacing it to rule out a fuse or wiring issue.
- Always replace the rubber grommet when installing a new pump to prevent future leaks.
Is Your G3500 Washer Pump Failing?
When the windshield washer pump goes bad, the symptoms are usually obvious. Understanding them can help you confirm the pump is the problem before you buy a new part.
- No Spray, No Sound: You push the button, the wipers move, but no fluid sprays and you don't hear the familiar humming or buzzing sound of the pump motor. This usually means the pump has failed or isn't getting electricity.
- Pump Hums, No Spray: If you can hear the pump motor running but nothing comes out, the problem might be a clog instead of a bad pump. The pump's inlet, the hoses, or the spray nozzles can get blocked with debris or gelled fluid. It can also mean the pump's internal impeller is broken.
- Weak Spray: If the fluid barely reaches the windshield, the pump motor may be getting weak and losing its ability to create enough pressure.
- Leaking Fluid: Finding a puddle of washer fluid under the front of your van points to a leak. The pump housing can crack, or the rubber grommet that seals the pump to the reservoir can dry out and fail, causing the reservoir to drain.
Pro Tip: Check the Fuse First
Before replacing the pump, check for power. The washer pump on these GM vans often shares a fuse with the wiper motor. If your wipers work, the fuse is likely good. You can also use a multimeter to confirm there are 12 volts at the pump's electrical connector when a helper presses the wash button. If there's power but no sound, the pump is bad.
🎬 Watch this video to see how to test and replace the pump.OEM vs. Aftermarket Pumps for Your G3500
For a straightforward part on a classic work van like the 1979-1996 G3500, a new aftermarket pump is the most practical and economical choice. Brands like Trico specialize in wiper and washer system components and offer a reliable, affordable solution.
Original Equipment (OEM) GM or ACDelco parts for this generation are likely discontinued. If you can find one, it would be expensive "New Old Stock" (NOS) and may not offer any significant benefit over a new aftermarket unit, as the original parts can also fail from age. Given that replacing the pump is a simple, 15-minute job, a quality aftermarket part provides excellent value.
🎬 See a detailed walkthrough of the repair and replacement process.| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico, etc.) | $20.89 - $29.34 |
| New OEM (If Found) | $50 - $85+ |
| Used OEM | $10 - $25 |
| Shop Labor | $50 - $100 |
Quick and Easy DIY Replacement
Replacing the washer pump on this G-series van is one of the easiest repairs you can do. The pump is located on the washer fluid reservoir in the engine bay and is held in by a simple press-fit into a rubber grommet. No special tools are needed.
- Have a bucket ready to catch any remaining fluid.
- Disconnect the electrical plug from the pump.
- Pull the rubber hose(s) off the pump nozzles.
- Firmly pull the old pump straight out of the rubber grommet on the reservoir.
- Pull out the old rubber grommet and clean the area. Install the new grommet that comes with your new pump. This is critical for preventing leaks.
- Push the new pump securely into the new grommet.
- Reconnect the hose(s) and the electrical plug.
- Refill the reservoir and test your work.
Common Mistake: Clogged Nozzles
If you install a new pump and it still doesn't spray, your nozzles may be clogged. This can happen if the old pump failed and sat for a long time. Use a small pin or needle to clear any debris from the holes in the spray nozzles on the hood.

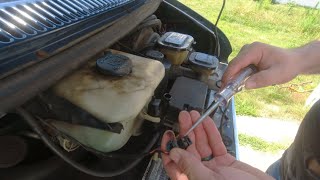

🎬 Watch: Helpful tips for fixing common windshield sprayer issues.Frequently Asked Questions
Where is the washer pump located on my G3500?
The windshield washer pump is located in the engine compartment. It is a small, cylindrical part pushed into the bottom of the white plastic windshield washer fluid reservoir.
Is this a hard part to replace myself?
No, this is a very easy job for a beginner. It typically takes 10-15 minutes and requires few or no tools. The pump simply pulls out and the new one pushes in.
Do I need to drain the washer fluid first?
Yes, it's best to drain the fluid to avoid a mess. You can either run the pump until it's empty (if it works at all) or use a small siphon. Otherwise, the fluid will spill out when you pull the old pump.
My new pump runs, but the spray is weak or uneven. What's wrong?
First, check that the fluid reservoir is full. If it is, check the rubber hoses for cracks, kinks, or loose connections. Finally, clean the spray nozzles on the hood with a pin, as they may be partially clogged.
Helpful Videos
Technical Specifications
12V Electric Pump, Press-Fit Installation
