Guide to the 1980-1984 Chevrolet Camaro Ignition Control Module
Don't get stranded by a failed HEI ignition module; understand the symptoms and choose the right part for your Camaro.
- The most common failure is stalling when hot, followed by a no-start until the module cools down.
- Always apply the included thermal paste to the new module's metal base to prevent overheating and premature failure.
- For reliability, choose a quality brand like ACDelco or Standard; cheap modules are known to fail quickly.
- Consider keeping a spare module and the necessary tools in your car, as a failure will leave you stranded.
Is Your Camaro's Ignition Module Failing?
The ignition control module (ICM) in the 1980-1984 Chevrolet Camaro is a common failure point, often due to heat and age. Because it's located inside the hot distributor, the electronic components eventually break down. When it fails, it can leave you stranded without warning. The most classic symptom is an engine that runs fine when cold, but stalls suddenly after 15-30 minutes of driving and refuses to restart until it has cooled down completely.
Key Failure Symptoms:
- Engine stalls when hot: The car dies for no reason after warming up and won't start again until it cools off.
- No-start condition: The engine cranks over but never fires up because there is no spark.
- Engine misfires or runs rough: The car may sputter, hesitate, or run poorly, especially as it gets hotter.
- Tachometer drops to zero: While cranking or during a stalling event, the tachometer may fall to zero, indicating a loss of ignition signal. 🎬 Watch: Diagnosing HEI distributor issues with real driving footage.
- Reduced fuel economy: A failing module can lead to inefficient combustion and poor gas mileage.
Warning: A Bad Coil Can Kill Your New Module
If you have replaced your ignition module and it fails again quickly, you may have a bad ignition coil. A failing coil can send improper voltage back to the module, destroying it. It's wise to test or replace your ignition coil if you are experiencing repeat module failures.
Choosing the Right Aftermarket Ignition Module
When it comes to HEI ignition modules, not all brands are created equal. For a daily driver, reliability is more important than high-performance claims. Forum discussions among Camaro and GM owners show a clear preference for quality over price.
Brand Quality Tiers
Tier 1: OEM-Grade Replacements (Highest Reliability)
- ACDelco: Widely considered the gold standard for reliability. While modern ACDelco parts may be globally sourced, they are still designed to meet GM specifications and are the most recommended brand in owner forums.
- Delphi: As a major OEM supplier, Delphi parts are known for their quality and durability, making them a solid choice comparable to ACDelco.
Tier 2: Quality Aftermarket (Good Value)
- Standard Ignition (SMP): A well-respected aftermarket manufacturer. Their parts are a dependable alternative to OEM and are often considered a good balance of quality and price.
Tier 3: Performance & Budget Brands (Use with Caution)
- Accel: While a popular performance name, many owners report a high rate of sudden and premature failures with their HEI modules. Use with caution, as reliability may be questionable for a daily driver.
- Proform: Often marketed as a performance or budget-friendly option. Reliability data is less available, but like other budget parts, it may not have the longevity of OEM-grade units.
Pro Tip: Don't Forget the Thermal Paste!
Your new ignition module will come with a small packet of white or clear grease. This is a special heat sink compound, NOT regular grease. You MUST apply a thin layer to the metal bottom of the module before installation. This paste transfers heat away from the module to the distributor body. Skipping this step will cause the new module to overheat and fail very quickly.
Cost of Replacing an Ignition Control Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $48.75 - $104.41 |
| Shop Labor | $100 - $150 |
| Total Estimated Cost | $148.75 - $254.41 |
Cost estimates are for parts and labor and may vary by location and vehicle condition.
Frequently Asked Questions (FAQ)
Can I replace the ignition module myself?
Yes, this is a very DIY-friendly job. It requires basic hand tools to remove the distributor cap and rotor. The module is held in by two small screws. The entire process can usually be done in under an hour.
🎬 See this step-by-step walkthrough for replacing your HEI module.Where is the ignition module located on a 1980-1984 Camaro?
It is located inside the HEI distributor. You must remove the distributor cap and the rotor to access it.
Can I have my old module tested?
Yes, most auto parts stores can test your module for free. However, since they often fail when hot, ask the store to run the test multiple times to see if it fails after warming up.
🎬 Watch: A free and easy way to test your distributor.Are there any recalls for the ignition module on my Camaro?
No, there are no specific NHTSA recalls for the ignition control module on the 1980-1984 Chevrolet Camaro. Recalls found were for ignition *switches* on much newer models.
Should I buy a cheap ignition module?
It is not recommended. Many owners report that cheap, unbranded aftermarket modules fail very quickly, sometimes within days or weeks. It is better to spend more on a quality brand like ACDelco or Standard to avoid being stranded. Many experienced owners even recommend keeping a known-good spare module in the glove box.
Helpful Videos
Technical Specifications

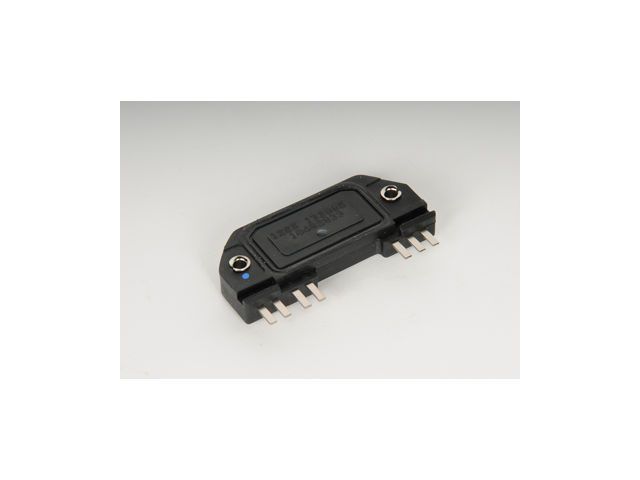

OEM Part Numbers: 1875990 1987539 D1906
4-pin HEI (High Energy Ignition) Module
