Choosing the Right Spark Plug Wire Set for Your 1980-1984 Jeep Wagoneer
Get your classic Wagoneer running smoothly with the correct new aftermarket spark plug wires.
- Verify your engine (AMC 258 I6 or AMC 360 V8) before ordering to ensure a correct fit.
- For a stock engine, a quality standard replacement set from brands like NGK or Denso is sufficient.
- Performance wires (MSD, Taylor) offer better heat resistance but are not required for standard use.
- Replace wires one at a time to avoid mixing up the firing order.
Is it Time for New Spark Plug Wires?
The ignition system on your 1980-1984 Wagoneer is simple but relies on every part doing its job. The spark plug wires live in a harsh environment, exposed to high heat from the engine and exhaust manifolds, as well as oil and moisture. Over time, the insulation on the wires can crack, and the internal conductor can break down. This leads to a weak or inconsistent spark, causing problems you can definitely feel. If your original wires are still on the vehicle, they are long overdue for replacement.
Symptoms of Failing Spark Plug Wires
Bad spark plug wires can cause a range of issues. If you notice any of the following, your wires are a likely culprit:
- Rough Idle: The engine may shake or run unevenly when you're stopped.
- Engine Misfires: You might feel a hesitation, stumble, or bucking from the engine, especially when accelerating.
- Difficulty Starting: A weak spark makes it harder for the engine to fire up, especially when cold.
- Poor Fuel Economy: When the engine isn't burning fuel efficiently due to poor spark, your gas mileage will suffer.
- Check Engine Light: While these vehicles pre-date modern OBD-II systems, a severe and consistent misfire can sometimes trigger a maintenance light if equipped.
Pro Tip: The Water Test
A classic way to check for bad wires is to start the engine in a dark area and spray the wires with a light mist of water from a spray bottle. If you see small blue sparks arcing from the wires to the engine block, the insulation has failed and they need to be replaced immediately. You might also notice the engine idle gets worse when you spray them.
Known Issues, Recalls, or TSBs
Searches for official recalls and Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the 1980-1984 Jeep Wagoneer's ignition system and spark plug wires did not reveal any specific issues. Any problems you experience are most likely due to the age and normal wear of the components. The simple, robust design of the AMC engines means fewer electronic failure points compared to modern vehicles.
Choosing the Right Aftermarket Spark Plug Wire Set
For a stock 1980-1984 Wagoneer, you don't need expensive, high-performance racing wires. A quality standard replacement set will work perfectly. The most important factors are getting the correct set for your engine (AMC 258 I6 or AMC 360 V8) and ensuring the wires have good insulation.
| Brand Tier | Brands | Best For |
|---|---|---|
| Standard / OEM-Equivalent | NGK, Standard Wires, ACDelco, Denso, Walker Products | Daily drivers and stock restorations. These brands are known for providing reliable, direct-fit parts that meet or exceed original factory specifications. NGK and Denso are often OEM suppliers for many manufacturers. |
| Jeep Specialist | Crown Automotive | Owners looking for a Jeep-specific aftermarket part. Crown focuses exclusively on Jeep vehicles, though owner reviews on quality can be mixed. |
| Performance / Heavy-Duty | MSD, Accel, Taylor Cable, Granatelli | Modified engines or owners wanting extra durability. These wires often feature thicker 8mm (or larger) silicone jackets and low-resistance spiral cores for a hotter spark. While not necessary for a stock engine, they can be a good upgrade for peace of mind and heat resistance. | 🎬 Check out this review of the best spark plug wires.
Common Ordering Mistakes
The biggest mistake is ordering wires for the wrong engine. The 1980-1984 Wagoneer was available with the AMC 258 inline 6-cylinder and the more common AMC 360 V8. A V8 set will have nine wires (eight for the plugs, one for the coil), while an I6 set will have seven. Always confirm your engine before ordering.
Frequently Asked Questions (FAQ)
Do I need special tools to change my spark plug wires?
No, you typically don't need special tools. The job can be done with basic hand tools. A pair of spark plug wire pliers can make it easier to remove the boots without damaging them, but it's not required. Applying a small amount of dielectric grease to the inside of the new boots will make installation easier and help seal out moisture.
Should I replace my spark plugs at the same time?
Yes, it is highly recommended. Worn spark plugs put extra strain on the ignition system, including the wires. Replacing the plugs, distributor cap, and rotor at the same time as the wires is a complete ignition tune-up that will ensure your engine runs its best.

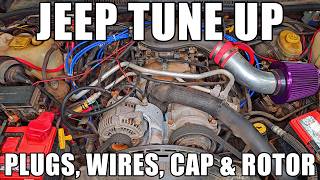

🎬 See a full ignition tune-up on a classic V8 engine.What's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire's outer jacket. A thicker jacket, like 8mm or 8.5mm, generally provides better insulation against heat and electrical arcing compared to a standard 7mm wire. For a stock Wagoneer, a quality 7mm or 8mm set will work well.
What does a "spiral core" wire mean?
Spiral core wires have a conductor made of a wire (often stainless steel) wrapped around a magnetic core. This design offers low resistance for a strong spark while suppressing the radio frequency interference (RFI) that can cause static in your radio. They are a significant upgrade over old-style carbon core wires.
How do I make sure I don't mix up the wires?
The best method is to replace one wire at a time. Remove the longest old wire, match its length to a wire in the new set, and install the new one. Then move to the next longest, and so on. This ensures each cylinder is connected to the correct terminal on the distributor cap, which is critical for the engine's firing order.
🎬 Watch this step-by-step guide on how to change your wires.Helpful Videos
Technical Specifications
Fitment is specific to the AMC 258 I6 or AMC 360 V8 engine. Wires typically feature a spiral core conductor for RFI suppression and a silicone jacket with straight or 45-degree spark plug boots. Common diameters are 7mm or 8mm.
