Guide to the 1980-1985 Cadillac DeVille Transmission Filter Kit
Keep your classic DeVille shifting smoothly by choosing the right transmission filter kit.
- You must identify your specific transmission (e.g., THM200-4R, THM350) before buying a kit, as parts are not interchangeable.
- Symptoms of a bad filter include delayed shifting, strange noises, and a burning smell.
- For this application, brands like Wix and ATP are highly regarded and considered safe, reliable choices alongside ACDelco.
- A simple filter and fluid change is recommended over a high-pressure flush for these older transmissions.
Understanding Your DeVille's Transmission
Before buying a transmission filter kit for your 1980-1985 Cadillac DeVille, you must know which automatic transmission your car has. During this period, Cadillac used several different General Motors Turbo-Hydramatic (THM) transmissions, including the THM200-4R, THM350, and THM400. Each of these requires a specific filter and pan gasket. Using the wrong kit will lead to leaks or improper fitment. Always verify your specific transmission type before ordering a part.
Symptoms of a Clogged Transmission Filter
A transmission filter doesn't fail suddenly. It clogs over time with debris. When it gets too restricted, it can starve the transmission of fluid, leading to serious problems. Watch for these warning signs:
- Delayed or Rough Shifting: The car may hesitate for a few seconds when you shift from Park to Drive or Reverse. You might also feel harsh or jerky shifts while driving.
- Whining or Grinding Noises: Strange noises from the transmission area, especially when accelerating or shifting, can mean the fluid isn't flowing properly.
- Burning Smell: A burnt toast smell suggests the transmission fluid is overheating because it can't circulate properly. Overheating is the number one killer of automatic transmissions.
- Fluid Leaks: While a clogged filter doesn't directly cause leaks, the increased pressure and heat can cause old gaskets and seals to fail, leading to reddish fluid puddles under your car.
- Slipping Gears: The engine may rev up, but the car doesn't accelerate as it should. This is a critical symptom that the transmission is not getting enough hydraulic pressure.
Known Issues & Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA related to the transmission filter for the 1980-1985 Cadillac DeVille. Any failures are typically due to age and lack of regular maintenance. A recall for the 1985 DeVille existed for a fuel filter with incorrect threads, but this is unrelated to the transmission.
Choosing the Right Aftermarket Filter Kit
For a classic vehicle like the 1980-1985 DeVille, aftermarket parts are often the only option. The quality can vary, but many reputable brands meet or exceed original specifications. Here’s a breakdown of available brands:
- ACDelco: As GM's original parts division, ACDelco is the closest you'll get to an OEM part. They are a reliable benchmark for quality and fit, though sometimes they are made by the same manufacturers as other aftermarket brands.
- Wix: Wix has a strong reputation for making high-quality filters. Forum users and mechanics often trust Wix for transmission filters, considering them equal to or sometimes better than the OEM part for older vehicles. They are a solid choice for quality and reliability.
- ATP (Automatic Transmission Parts): ATP specializes in transmission components and has been a trusted name in fleet maintenance for decades. They are particularly well-regarded for their gaskets, which are often considered superior to the cork gaskets included in some cheaper kits.
- Premium Guard: This brand offers a budget-friendly option. While their oil filters are generally considered decently made for the price, quality can sometimes be inconsistent. For a critical component like a transmission filter, it may be worth spending a little more on a more established brand.
- Pioneer Cable: Pioneer is another budget-oriented brand. Forum discussions suggest they are a standard, no-frills option, but less is known about their long-term durability compared to brands like Wix or ATP.
Cost of a New Transmission Filter Kit
Replacing the transmission filter is a common maintenance item. The cost depends on whether you do it yourself or have a shop perform the service.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Filter Kit | $11 - $57 |
| Shop Labor | $120 - $180 |
| Total Professional Replacement | $131 - $237 |
Frequently Asked Questions (FAQ)
How often should I change the transmission filter on my DeVille?
For a vehicle of this age, a good rule of thumb is to replace the filter and fluid every 30,000 miles or every two years, whichever comes first. Regular changes are the best way to extend the life of your transmission.
Do I need to replace the pan gasket every time?
Yes. The transmission filter kit should always include a new pan gasket. Reusing an old gasket is a sure way to cause a leak. Some premium kits from brands like ATP come with high-quality rubber or fiber gaskets that are superior to basic cork.
Is this a difficult job to do myself?
For a DIY mechanic with some experience, it's a manageable job. It involves draining the fluid, dropping the transmission pan, replacing the filter, cleaning the pan and magnet, installing the new gasket, and refilling with the correct type and amount of fluid. It can be messy, so be prepared with a large drain pan.
What kind of transmission fluid does my 1980-1985 DeVille need?
Most GM transmissions from this era use DEXRON-type Automatic Transmission Fluid (ATF). However, always check your owner's manual or a reliable service guide for the exact specification. Using the wrong fluid can cause shifting problems and damage the transmission.
Should I get a transmission "flush" or just a filter and fluid change?
For a vintage car like this, a simple pan drop, filter change, and fluid refill is the safest method. High-pressure flushes can sometimes dislodge debris that can cause blockages in the transmission's valve body. A drain and fill replaces a significant portion of the old fluid and is all that's needed for routine service.
Technical Specifications

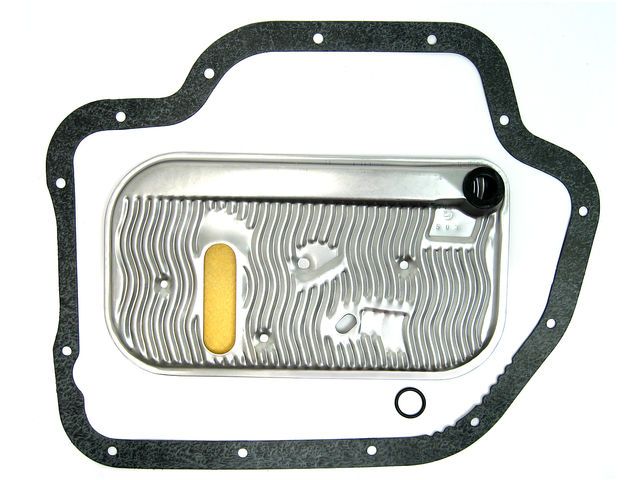

Kit typically includes one transmission filter and one pan gasket. Filter media is often felt or paper. Gasket material can be cork, rubber, or fiber. The specific shape of the filter and gasket is dependent on the transmission model (THM200-4R, THM350, THM400).
