Choosing the Right Spark Plug Wire Set for Your 1980-1986 Ford LTD
Get the right spark and avoid engine trouble by picking the best new wires for your classic Ford LTD.
- You must correctly identify your LTD's engine (I6, V6, or V8) to get the right wire set.
- Symptoms of failure include rough idle, misfiring, poor acceleration, and difficulty starting.
- Aftermarket wires are the primary option; choose a standard brand like NGK for daily driving or a performance brand like MSD or Taylor for modified engines.
- It is highly recommended to replace the distributor cap and rotor at the same time as the wires for a complete tune-up.
Signs of Failing Spark Plug Wires on an LTD
Because your 1980-1986 Ford LTD comes from a time before complex computer diagnostics, noticing the symptoms of bad spark plug wires is key. Wires wear out from heat, oil, and age. When they fail, the flow of electricity to the spark plugs is interrupted.
Look for these common signs:
- Rough Idle: The engine may shake or sputter when you're stopped. This happens because one or more cylinders aren't firing correctly.
- Engine Misfires: You might feel a hesitation or stumble from the engine, especially when accelerating. This can feel like the car is 'jerking'.
- Poor Acceleration: A noticeable loss of power when you press the gas pedal is a classic symptom.
- Reduced Fuel Economy: If you're filling up the tank more often, it could be because unburnt fuel is being wasted due to weak or inconsistent spark.
- Trouble Starting: A hard-to-start engine, especially in cold or damp weather, can point to old wires.
- Visible Damage: Check the wires for cracks, burns, or melted spots on the outer insulation. Sometimes you can even see a blue spark jump from the wire to a metal part of the engine in the dark when the engine is running.
Engine Identification is Crucial
The 1980-1986 LTD was available with several engines, including the 3.3L I6, 3.8L V6, 4.2L V8, and the popular 5.0L V8. The spark plug wire set you need must match your specific engine. A V8 set will not work on a V6, and vice-versa. Always confirm your engine size before ordering.

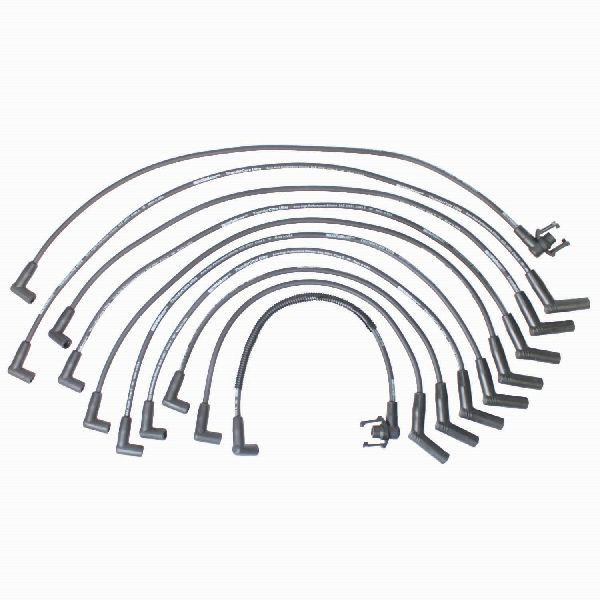

Choosing an Aftermarket Spark Plug Wire Set
For a vehicle of this age, original Motorcraft parts are likely discontinued or very hard to find. The good news is that many aftermarket brands offer excellent quality, often exceeding original specifications. Aftermarket wires are your main option for new parts. They fall into a few categories:
Economy/Standard Replacement Wires
These are designed to be direct, affordable replacements that meet or exceed original factory performance. They are perfect for a daily driven or stock LTD.
- Brands like: Standard, Walker Products, Denso, NGK
- Best for: Owners who want reliable, no-frills performance for a stock engine. Brands like NGK and Denso are well-regarded for their quality in the replacement market.
Performance Wires
These wires are for owners who have made modifications to their engine or simply want the best possible spark delivery. They feature thicker jackets for heat protection and lower resistance for a hotter spark.
- Brands like: Accel, MSD, Taylor Cable, Ford Performance, Granatelli, Edelbrock

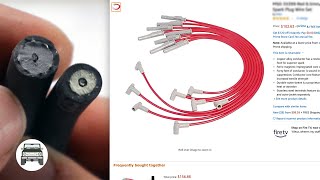

- Best for: Modified engines, or owners who want improved throttle response and maximum spark energy. 🎬 Watch this guide on choosing the best wires for Ford EFI. Brands like MSD and Taylor are frequently mentioned in forums for their performance and quality. Some performance wires, like certain Accel models, even come with ceramic boots for extreme heat resistance near exhaust headers.
What About Wire Diameter (8mm, 9mm, 10mm)?
A thicker wire (e.g., 10mm vs 8mm) doesn't necessarily mean better performance. The main benefit of a thicker wire is its thicker outer jacket, which provides better insulation and protection against heat and abrasion. For most LTDs, a quality 8mm or 8.5mm wire is more than sufficient.
| Part Type | Typical Price Range | Notes |
|---|---|---|
| New Aftermarket (Standard) | $31 - $70 | Good quality for daily driving. Brands like Standard, NGK. |
| New Aftermarket (Performance) | $70 - $197 | Lower resistance, better heat protection. Brands like MSD, Taylor, Accel. |
| New OEM (Motorcraft) | N/A | Generally unavailable as new parts for this vehicle age. |
| Shop Labor for Installation | $75 - $150 | Typically a quick job for an experienced mechanic. |
Frequently Asked Questions
Do I need special tools to change my spark plug wires?
For a direct-fit set, you usually don't need special tools. A spark plug wire puller can be helpful to avoid damaging the boots, but often you can remove them by twisting and pulling on the boot itself (never pull on the wire!). If you buy a 'universal' or 'cut-to-fit' set, you will need a special wire crimping tool. For most owners, a direct-fit set is the easiest option.
Should I replace my distributor cap and rotor at the same time?
Yes, it is highly recommended. The distributor cap and rotor are key parts of the ignition system that wear out over time, just like the wires. Replacing all three components at once is a standard tune-up procedure and ensures the entire system is fresh.
🎬 See how to replace your wires, distributor cap, and rotor.What's the difference between 'direct-fit' and 'universal' wires?
Direct-fit wires are pre-cut to the correct lengths for your specific LTD engine and have the boots already installed. Universal wires come with long, uncut wires and a kit of terminals and boots, allowing you to create a custom-length set. For most DIY mechanics, direct-fit is the simpler and faster choice.
Are there any recalls on the 1980-1986 Ford LTD for spark plug wires?
A search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for spark plug wires on the 1980-1986 Ford LTD. Any recalls found are for much newer vehicles and unrelated issues.
Helpful Videos
Technical Specifications
Spark plug wire sets for the 1980-1986 Ford LTD are specific to the engine type (3.3L I6, 3.8L V6, 4.2L V8, 5.0L V8). Wires are typically carbon core or spiral core construction. Performance wires offer lower resistance (measured in ohms per foot) and thicker silicone jackets for heat protection.
