Ford F-150 Speedometer Cable Guide (1980-1987)
Fix your bouncing or noisy speedometer needle with the right replacement cable for your 1980-1987 F-150.
- A bouncing needle or a speed-related squeal from the dash are the classic signs of a failing speedometer cable.
- Standard aftermarket brands like ATP and Pioneer offer affordable, direct-fit replacements that are perfect for a stock truck.
- The most important step is ordering the correct length cable for your truck's 2WD/4WD setup and transmission.
- Replacement is a straightforward DIY task, with the main challenge being access behind the instrument cluster.
Is Your F-150's Speedometer Acting Up?
If you own a 1980-1987 Ford F-150, you know it's a tough, straightforward truck. Its speedometer system is just as simple. But when the cable fails, it can be annoying and make it hard to judge your speed. Common signs of a bad speedometer cable include a bouncing needle, a complete lack of speed reading, or strange noises from behind the dash. Luckily, replacing it is a common repair that you can do yourself.
Symptoms of a Failing Speedometer Cable
- Bouncing or Wavering Needle: The most common symptom is a speedometer needle that jumps around instead of moving smoothly. This is often caused by a dry, binding, or kinked inner cable.
- Chirping or Squealing Noises: A high-pitched squeal, chirp, or whirring sound from behind the instrument cluster that changes with vehicle speed points to a cable that needs lubrication or is about to break.
- No Speed Reading: If the needle stays at zero, the inner cable has likely snapped or become disconnected at the transmission or the speedometer head.
A Note on Lubrication
Some owners try lubricating the old cable with graphite lube to fix noises or a bouncing needle. While this can work as a temporary fix, it's often just as much work as replacing the cable, and the problem usually returns. For a permanent solution, a new cable is the best option.
Choosing the Right Aftermarket Cable
For a truck of this age, original Ford (OEM) cables are hard to find and often expensive. Aftermarket cables are a reliable and affordable choice. The technology is simple, so a quality aftermarket part will work just as well as the original. Here’s a look at the common brands available:
- Standard Replacement (Good): Brands like Pioneer Cable and ATP offer direct-fit replacement cables that are affordable and widely available. They are designed to match the original part's fit and function, and many owners find them to be a great value for a standard repair.
- Premium / Custom (Better/Best): A brand like Lokar offers high-end, cut-to-fit speedometer cable kits. These are made with high-quality materials and are designed for custom builds, but they are much more expensive and require more work to install than a direct-fit cable. For a stock F-150, a Lokar cable is usually not necessary unless you have a non-standard engine or transmission swap.
Avoid Common Ordering Mistakes
The single biggest mistake is ordering the wrong length. Before you buy, check if your truck is 2WD or 4WD, and note your transmission type. These factors, along with wheelbase, determine the correct cable length. If possible, measure your old cable. Also, confirm if your truck has cruise control, as some models use a two-piece cable system.
Cost of a New Speedometer Cable (1980-1987 F-150)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (ATP, Pioneer) | $15 - $30 |
| Premium Aftermarket (Lokar) | $120 - $140 |
| Shop Labor for Installation | $100 - $300 |
Cost estimates are approximate and may vary based on location and supplier.
Frequently Asked Questions
Is replacing the speedometer cable a DIY job?
Yes, this is a very DIY-friendly job for someone with basic tools. The most challenging part is usually reaching behind the instrument cluster to unclip the old cable and clip in the new one. Expect it to take 1-2 hours.
🎬 Watch a full walkthrough of the cable replacement processAre there any recalls for the speedometer cable on my F-150?
No. Searches of the NHTSA database show no recalls or technical service bulletins (TSBs) specifically for the speedometer cable on the 1980-1987 Ford F-150.
Do I need a special tool to replace the cable?
No special tools are required. Basic hand tools like a screwdriver set and possibly some pliers are usually all that's needed. A trim removal tool can be helpful for taking off dashboard panels without damaging them. 🎬 See this guide on removing the instrument cluster safely A video guide shows the process involves removing trim pieces and the instrument cluster to gain access.
My truck has cruise control. Does that change the part I need?

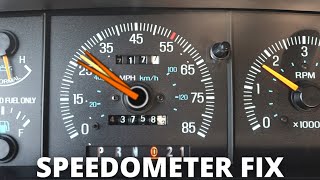

It might. On some F-150s with factory cruise control, the speedometer cable is a two-piece design with a speed sensor in the middle. It's important to verify your truck's specific setup 🎬 Watch: Fixing a needle on trucks with cruise control before ordering to ensure you get the correct upper or lower cable, or a complete assembly if needed.
Helpful Videos
Technical Specifications
The key specifications are the overall length of the cable and the type of fittings on each end (one for the transmission/transfer case and one for the speedometer head). These vary by vehicle configuration (2WD/4WD, transmission type, cruise control). It is critical to match these to the original part.
