Throttle Position Sensor (TPS) Guide for 1980-1988 Pontiac Firebird
Solving hesitation, rough idle, and poor performance in your second-gen Firebird starts with understanding this critical sensor.
- A failing TPS on a 1980-1988 Firebird often causes hesitation, rough idle, and may trigger engine code 21 or 22.
- Replacement is DIY-friendly, but the new sensor MUST be adjusted with a multimeter to a base voltage (around 0.54v) to function correctly.
- Choosing a quality aftermarket brand like ACDelco, NGK, Standard Ignition, or Walker Products is crucial for long-term reliability.
- There are no known recalls or TSBs from NHTSA for the throttle position sensor on this specific vehicle range.
Is Your Firebird's TPS Failing? Common Symptoms
A throttle position sensor wears out over time. The internal electrical contacts can develop dead spots, leading to incorrect signals being sent to your Firebird's computer. This can cause a range of drivability problems that often appear gradually. Before you assume your carburetor or fuel injectors are the problem, check for these common TPS failure symptoms.
🎬 Watch: How to test a throttle position sensor for dead spotsCheck Engine Light: Code 21 or 22
On these early electronic fuel injection systems, a failing TPS will often trigger the 'Service Engine Soon' light. For 1980-1988 Firebirds, the most common trouble codes associated with a bad TPS are Code 21 (signaling a high voltage) and Code 22 (signaling a low voltage). This is a clear indicator that the ECM is receiving a signal from the TPS that is outside its expected range.
Choosing the Right Aftermarket TPS for Your Firebird
When replacing the TPS on a classic car like the 1980-1988 Firebird, you have several aftermarket options. While a genuine GM part might be hard to find, many aftermarket brands offer reliable replacements. The key is choosing a quality part to avoid replacing it again soon. Aftermarket sensors for this generation of Firebird are generally reliable, provided you stick with reputable brands.
Brand Quality Tiers
- Premium Brands (OEM-Equivalent Quality): Brands like ACDelco (specifically their GM Original Equipment line) and NGK/NTK are often considered the top tier. They are manufactured to meet or exceed original specifications and are a solid choice for reliability and longevity.
- Quality Mid-Range Brands: Standard Ignition (SMP) and Walker Products are well-regarded in the aftermarket. They provide a good balance of quality and price and are a dependable option for most owners. Many professional mechanics use these brands.
- Economy Brands: While brands like Motorad are available and may be the most affordable, their reputation for electronic sensors is mixed. For a critical sensor like the TPS, spending a little more on a mid-range or premium brand is often a worthwhile investment to ensure proper performance and avoid future issues.
| Item | Estimated Cost |
|---|---|
| New Aftermarket TPS | $49.51 - $118.92 |
| Shop Labor | $65 - $125 |
| Total Professional Replacement | $114.51 - $243.92 |
Pro Tip: The Importance of Adjustment

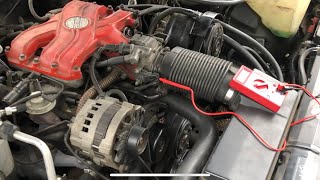

For the 1980-1988 Firebird, simply swapping the TPS is not enough. The new sensor must be properly adjusted. This involves using a multimeter to set the base voltage. Most service manuals suggest a starting point around 0.54 volts with the throttle closed. However, each sensor can be slightly different, so fine-tuning may be required to achieve a smooth idle and proper response. 🎬 See this walkthrough on adjusting the TPS on a Trans Am Failure to adjust the new sensor is a common mistake that leads to continued performance problems.
Frequently Asked Questions (FAQ)
Can I replace the Firebird TPS myself?
Yes, this is a DIY-friendly job for most home mechanics. It involves removing two screws, swapping the sensor, and then performing the crucial adjustment step with a multimeter. The sensor is located on the side of the throttle body 🎬 Watch: Step-by-step TPS installation on a third-gen GM F-body and is easy to access.
Were there any recalls for the 1980-1988 Firebird TPS?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the throttle position sensor on the 1980-1988 Pontiac Firebird.
What happens if I don't replace a bad TPS?
Ignoring a failing TPS will lead to persistent and worsening engine problems. You'll experience poor acceleration, rough idling, stalling, and terrible fuel economy. In some cases, it can cause hard starting where you need to press the gas pedal to get the car to start. It puts unnecessary stress on other engine and transmission components.
Is an expensive TPS brand better for my Firebird?
Not always, but with electronic sensors, you often get what you pay for. Sticking to well-known brands like ACDelco, NGK, Standard Ignition, or Walker Products is recommended over budget options. These brands generally use higher-quality materials that ensure a more accurate signal and longer life.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17111787 17069534 20091459
3-wire potentiometer sensor. Mounts to the side of the throttle body. Requires voltage adjustment upon installation.
