Chevrolet Camaro Windshield Washer Pump Guide (1980-1989)
Everything you need to know before replacing the windshield washer pump on your third-generation Camaro.
- First, confirm your pump's location: 1980-1987 models are on the wiper motor, while 1988-1989 models are in the fluid reservoir.
- A silent pump usually means it has failed or has no power; check the fuse first.
- Replacement is a simple, DIY-friendly job that takes less than an hour.
- ACDelco offers an OEM-equivalent part, while Trico is a reliable aftermarket alternative.
Is Your Camaro Washer Pump on the Firewall or the Reservoir?
Before buying a new part for your 1980-1989 Camaro, you must know where your current pump is located. General Motors used two different designs during this generation, and the part you need depends on your vehicle's model year.

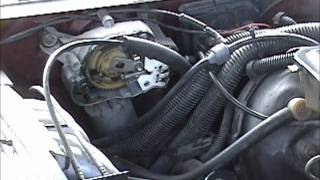

- 1980-1987 Models: The washer pump is typically integrated with the windshield wiper motor assembly. This unit is located on the firewall under the hood. The pump itself is a small component that clips into the larger wiper motor body.
- 1988-1989 Models: The design was updated, and the washer pump was moved to the washer fluid reservoir. This is a more modern setup where the pump press-fits into a rubber grommet at the bottom of the fluid tank.
Symptoms of a Failing Windshield Washer Pump
When a washer pump fails, the signs are usually straightforward. Here’s what to look for:
- No Sound, No Spray: You press the button and hear nothing. This often means the pump's electric motor has failed or is not receiving power. First, check the fuse for the wiper/washer system before replacing the pump.
- Pump Hums, But No Fluid Sprays: If you can hear the pump motor running but nothing comes out, the problem could be an empty reservoir, clogged nozzles, or a blockage in the fluid lines. The pump itself could also be worn out and unable to create enough pressure. 🎬 Watch: A guide to diagnosing washer pump and system failures
- Weak or Uneven Spray: If the fluid just dribbles out or only hits the bottom of the windshield, the pump may be getting weak. This can also be caused by clogged nozzles or, on some 1984 models, a hose routing issue.
Known Issues for This Generation
A Technical Service Bulletin (TSB #84-123) was issued for some 1984 Camaros regarding a delay in the washer spray. The issue is caused by fluid draining back into the reservoir, requiring the pump to re-prime itself every time. The official fix was to reroute the washer hose to create an anti-drainback loop and use a smaller diameter hose (5/32" or 4.0mm).
Choosing the Right Aftermarket Pump: Brand Quality
For your Camaro, you have reliable aftermarket options that meet or exceed original specifications. The choice often comes down to preference for originality versus a trusted aftermarket name.
ACDelco: As a General Motors brand, ACDelco is the closest you can get to an original equipment (OE) part. Choosing an ACDelco pump means you are getting a part designed with the same specifications for fit, form, and function as the one your Camaro came with from the factory. For owners seeking originality and proven durability, ACDelco is the top-tier choice.
Trico: Trico is a well-respected brand that has specialized in windshield wiper and washer systems for decades. Their pumps are known for being durable, reliable, and designed for easy installation. Trico provides a high-quality, cost-effective alternative to an OE part and is a trusted choice for many repair shops and DIYers.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico, etc.) | $20.89 - $68.49 |
| New OEM-Equivalent (ACDelco) | $45 - $90 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Is replacing the washer pump a difficult job?

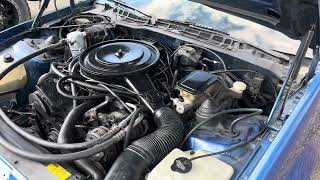

No, this is a great beginner-level job. For either the firewall-mounted or reservoir-mounted pump, replacement typically takes less than an hour with basic hand tools. 🎬 See this walkthrough on how to replace the pump The main challenge can be carefully removing the old, brittle washer hoses without breaking them.
Do I need to prime the new pump?
Generally, no priming is necessary. Once installed, the pump should self-prime after you activate it a few times. If it struggles, ensure the reservoir is full and check for leaks or cracks in the hoses that could be letting air in.
What does OEM mean?
OEM stands for Original Equipment Manufacturer. These are the same parts the vehicle was built with at the factory. ACDelco is GM's OEM parts division, so their parts are considered OEM-quality for your Camaro.
My wipers work but the washer doesn't. Could it be a fuse?
It's possible, but often the wipers and washer pump share a fuse. If the wipers work, the fuse is likely good. The problem is more likely the pump itself, the switch, or the wiring between the switch and the pump.

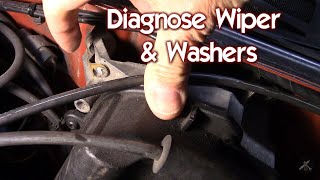

🎬 Watch: How to diagnose wiper and washer electrical issuesHelpful Videos
Technical Specifications
Two primary designs exist for this generation. Early models (approx. 1980-1987) use a pump integrated into the wiper motor assembly on the firewall. Later models (approx. 1988-1989) use a standalone electric pump mounted in the washer fluid reservoir. Visual confirmation is required before ordering.
