Ford E-150 Econoline Universal Joint Replacement Guide (1980-1989)
Don't let a bad U-joint leave your 1980-1989 Econoline stranded; here's how to choose the right replacement.
- A failing U-joint gives warning signs like squeaks, clunks, and vibrations; do not ignore them to avoid a dangerous driveshaft separation.
- Visually inspect your van to confirm if you have a one-piece or two-piece driveshaft to know how many U-joints to buy.
- For durability and reliability, choosing a premium aftermarket brand like Dana Spicer or a heavy-duty option from Moog is highly recommended over standard, budget-friendly parts.
- If you choose a greaseable U-joint, remember to grease it regularly to maximize its lifespan.
Is Your E-150's U-Joint Failing?
A failing universal joint gives several warning signs. Ignoring them can be dangerous, as a complete failure can cause the driveshaft to disconnect from the vehicle. This can lead to a loss of power and potentially cause significant damage to the underside of your van.
Common Symptoms:
🎬 Watch: How to tell if your U-joint is bad- Squeaking Noise: A rhythmic squeaking or chirping noise at low speeds that matches the rotation of the driveshaft is a classic sign. This is often caused by a dry, unlubricated joint.
- Clunking Sound: A loud "clunk" or ringing sound when you shift from drive to reverse or put the van in gear is a sign of excessive play in the U-joint.
- Vibration: A vibration that you can feel throughout the van, especially at highway speeds, can be caused by a worn and unbalanced U-joint.
- Visible Rust or Damage: If you see rust dust around the U-joint bearing caps or if the joint feels loose when you try to move the driveshaft by hand (with the transmission in park and wheels chocked), it's time for a replacement.
Choosing the Right Aftermarket U-Joint
For a vehicle from the 1980s, the line between OEM and aftermarket quality can be blurry. The original U-joints were likely made by Spicer, which is available today as a premium aftermarket brand. Your choice will come down to budget and how you use your van.
Pro Tip: Greaseable vs. Non-Greaseable
Many aftermarket U-joints come with a zerk fitting that allows you to grease them periodically. This can extend their life, especially if you use your van for heavy hauling. Non-greaseable (sealed) joints are often stronger by design but have a finite lifespan. For most owners, a quality greaseable joint that is maintained regularly is a great choice.
Brand Quality Tiers
Not all U-joints are created equal. Here’s a breakdown of the brands available for your E-150.
Tier 1: Premium & Heavy Duty
- Dana Spicer Chassis: Widely considered the original equipment manufacturer (OEM) for many vehicles, including older Fords. Spicer U-joints are the go-to for reliability and durability that matches or exceeds factory specs. They are consistently the top recommendation in automotive forums.
- Yukon Gear & Axle: Known for high-strength drivetrain components, often for performance and off-road use. A Yukon U-joint is likely overkill for a standard E-150 but represents a very durable, heavy-duty option.
Tier 2: Quality Aftermarket
- Moog: A well-known aftermarket brand that offers "problem solver" designs. While historically a top-tier choice, some users report that recent quality can be inconsistent compared to their older products or Spicer. Still, they are generally a reliable choice and often come with a lifetime warranty.
- SKF: A global leader in bearings, SKF's U-joints are known for precision and quality materials. They are a solid choice for a durable, long-lasting replacement.
Tier 3: Standard Replacement
- GMB: Often the most affordable option, GMB provides a standard, functional replacement part. While many have used them without issue, some forum discussions mention concerns about roughness or longevity compared to premium brands. They can be a good choice for a budget-conscious repair where long-term, heavy-duty use isn't the primary concern.
Check Your Configuration!
Your 1980-1989 E-150 could have a one-piece or a two-piece driveshaft, depending on its wheelbase. A two-piece driveshaft will have an additional U-joint and a center support bearing. Always inspect your van to confirm how many U-joints you need before ordering.
🎬 See this U-joint replacement walkthrough for older Ford trucksCosts for Universal Joint Replacement (1980-1989 Ford E-150)
| Item | Estimated Cost |
|---|---|
| Aftermarket Universal Joint (Single Part) | $18.90 - $107.89 |
| Shop Labor (Per Joint) | $100 - $250 |
| Total Professional Replacement (Per Joint) | $120 - $360 |
Cost estimates are based on national averages and may vary by location and the specific parts chosen. The total cost for replacing all U-joints will be higher.
Frequently Asked Questions (FAQ)
How many U-joints does my 1980-1989 E-150 have?
Most configurations will have at least two U-joints on the main driveshaft (one at the transmission, one at the rear axle). However, long-wheelbase models may have a two-piece driveshaft with three U-joints and a center support bearing. You must visually inspect your vehicle to be sure.
Can I replace a U-joint myself?
Yes, this is a DIY-feasible job for someone with moderate mechanical skill and the right tools. It involves removing the driveshaft and using a large vise, a ball joint press, or a hammer and sockets to press the old joint out and the new one in. Be careful not to damage the driveshaft yoke or the needle bearings in the new joint's caps.

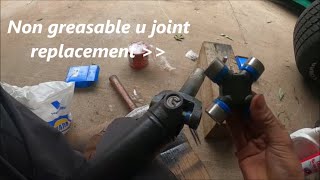

🎬 Watch: How to change U-joints without using special toolsWere there any recalls for the U-joints on these vans?
No specific U-joint or driveshaft recalls were found for the 1980-1989 Ford E-150 Econoline during searches of the NHTSA database. Recalls for driveshaft components on other, much newer Ford vehicles are not relevant to this model year.
Should I choose a greaseable or a sealed U-joint?
For a work van like the E-150, a greaseable U-joint from a quality brand like Spicer or Moog is an excellent choice. The ability to flush out old grease and contaminants can significantly extend its life, provided you perform the maintenance. If you prefer a fit-and-forget solution, a premium non-greaseable joint is also a very reliable option.
Helpful Videos
Technical Specifications
Due to the vehicle's age, specific OEM part numbers are not readily available. Replacement requires matching the U-joint style (e.g., external snap rings) and dimensions. Aftermarket parts like Moog 354 or Moog 434 have been listed for some 1980s E-150 models. Always verify fitment for your specific van's configuration before purchasing.
