Chevrolet Caprice Carburetor Guide for 1980-1990 Models
If your classic Caprice is running rough, stalling, or getting poor gas mileage, a failing carburetor is a likely culprit.
- First, identify if your Caprice has the computer-controlled E4ME Quadrajet by looking for electrical plugs.
- For computer-controlled cars, a remanufactured Uremco carburetor is the most direct replacement.
- For non-computer cars, an Edelbrock 1406 is a reliable and user-friendly upgrade.
- If you install a square bore Edelbrock or Holley carb, you will need a spread bore adapter plate for the stock intake manifold.
Is Your Caprice's Carburetor Failing?
A bad carburetor can cause a lot of headaches. The symptoms often start small but get worse over time. If you notice a few of these issues, it might be time for a replacement.
- Rough Idling and Stalling: The engine may shake, sputter, or stall completely when you're stopped at a light. This is especially common on hot engines with original-style Quadrajets.
- Hard Starts: Difficulty starting the engine, particularly when it's cold, can point to a carburetor problem like a faulty choke. If the car is hard to start after sitting for several days, the fuel bowl may be leaking empty.
- Hesitation or Sluggish Acceleration: When you press the gas pedal, the car might stumble or feel very slow to respond.
- Black Exhaust Smoke: Thick, dark smoke from the tailpipe means the engine is running too rich, burning too much fuel. This can be caused by a carburetor that is leaking fuel internally.
- Poor Fuel Economy: If you're filling up the gas tank more often than you used to, a failing carburetor could be wasting fuel.
- Strong Gas Smell: A noticeable smell of gasoline around the car, especially after it's been running, can indicate a fuel leak from the carburetor.
Choosing the Right Aftermarket Carburetor
Before you buy, you must identify what kind of carburetor your Caprice has. This is the most important step.
Critical: Computer-Controlled vs. Non-Computer Carburetors
Many 1981-1990 Caprice models use a Rochester E4ME, a computer-controlled carburetor. You can identify it by the blue two-wire electrical connector for the mixture control solenoid and a three-wire connector for the throttle position sensor. If you have this system, your simplest replacement option is a remanufactured E4ME. Installing a non-computer carburetor like an Edelbrock or Holley will require significant modifications, including a new distributor and abandoning the car's computer controls.

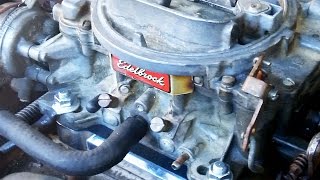

🎬 Watch: Step-by-step guide for swapping a Quadrajet to an EdelbrockBrand Options for Your Caprice
Your choice depends on whether you need a direct replacement for a computer-controlled system or if you have an older, non-computer model.
Tier 1: Remanufactured (Uremco)

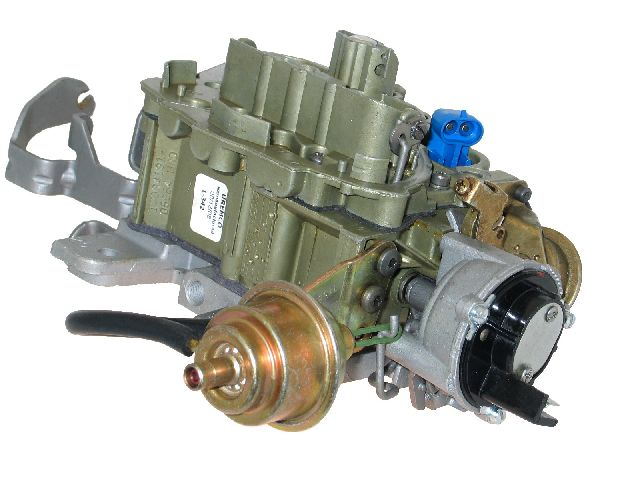

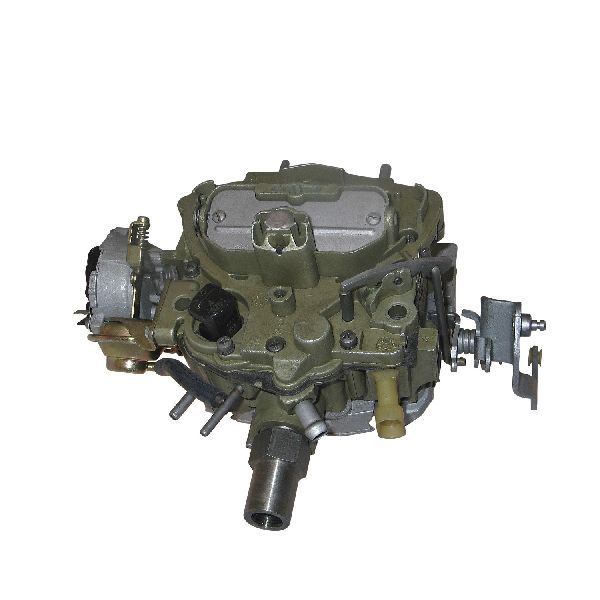

For owners of a Caprice with the electronic E4ME carburetor, a remanufactured unit is the most straightforward choice. Uremco is a well-known supplier of these parts. This allows you to keep your car's original computer system functioning. The quality of remanufactured parts can sometimes be inconsistent; some users report success while others have had issues with units leaking out of the box. However, it is often the only option for a direct, bolt-on replacement for computer-controlled models.
Tier 2: Aftermarket Performance (Edelbrock, Holley)
If you have an older, non-computer Caprice, or are willing to convert your later model, brands like Edelbrock and Holley are excellent choices. These are new carburetors, not remanufactured.
- Edelbrock: Known for being very user-friendly and reliable for daily driving. An Edelbrock Performer series carb, like the 1406 (600 CFM with electric choke), is a popular choice for the Chevy 305 engine and is easy to tune.
- Holley: Often seen as the standard for performance and racing, offering a high degree of tunability for maximum power. They can be more complex for a beginner to tune compared to an Edelbrock.
Cost of Replacing a 1980-1990 Chevrolet Caprice Carburetor
The total cost will depend on the brand you choose and whether you do the work yourself or hire a professional.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Edelbrock, Holley) | $415 - $605 |
| Remanufactured (Uremco) | $280 - $450 |
| Shop Labor | $200 - $400 |
| Total Professional Replacement | $480 - $1005 |
Frequently Asked Questions
How do I know if I have a computer-controlled carburetor?

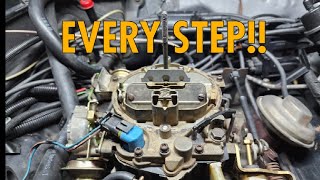

Look for electrical connectors on the carburetor body. The most obvious is a blue, two-wire plug on the top for the mixture control solenoid. 🎬 See how to calibrate the electronic Quadrajet on the car You will also find a three-wire plug for the throttle position sensor. If you see these, you have an electronic E4ME Quadrajet.
Can I replace my computer-controlled carb with a simpler one?
Yes, but it is not a simple swap. You will also need to replace the distributor with a non-computerized version (with vacuum and mechanical advance) and abandon the check engine light and computer functions. For most owners seeking a simple repair, sticking with a remanufactured electronic carb is the easier path.
What does CFM mean and what do I need for my Caprice?
CFM stands for Cubic Feet per Minute and measures how much air the carburetor can flow. For a stock or mildly modified 305 V8 engine, a carburetor in the 500-600 CFM range is ideal. A carb that is too large can hurt performance and fuel economy.
Should I choose an electric choke or a manual choke?
Most carburetors for this era, including the original E4ME, use an electric choke. An electric choke automatically adjusts for cold starts, making the car easier to live with. A manual choke requires you to pull a cable inside the car. For a street-driven vehicle, an electric choke is highly recommended.
Were there any recalls on the 1980-1990 Caprice carburetor?
No, searches of the NHTSA database did not find any safety recalls or technical service bulletins (TSBs) specifically for the carburetor on the 1980-1990 Chevrolet Caprice. Recalls found were for much newer model years and different components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17086004 17085004 17084004 17087124
Original carburetor is typically a Rochester Quadrajet 4-barrel with a spread bore mounting flange. Later models are computer-controlled (E4ME). Common engines include the 4.4L, 5.0L (305ci), and 5.7L (350ci) V8s.
